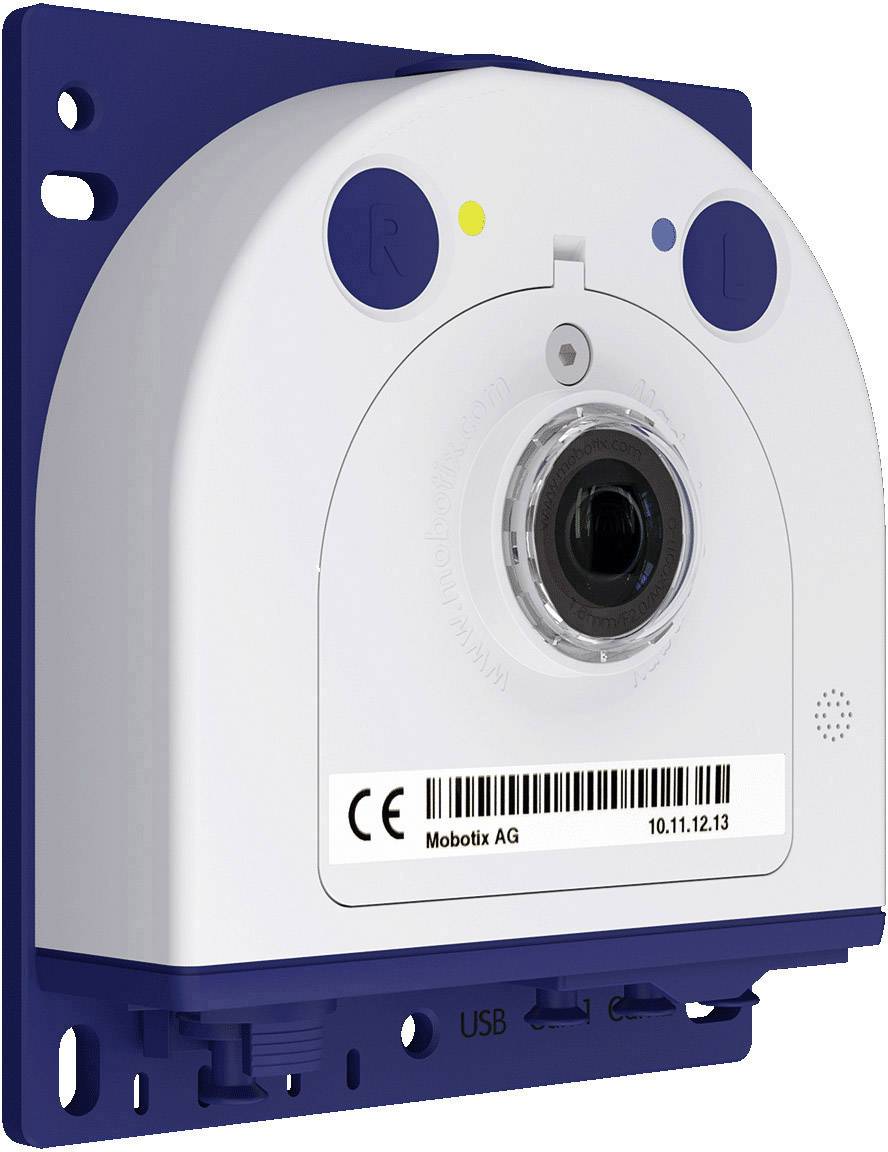

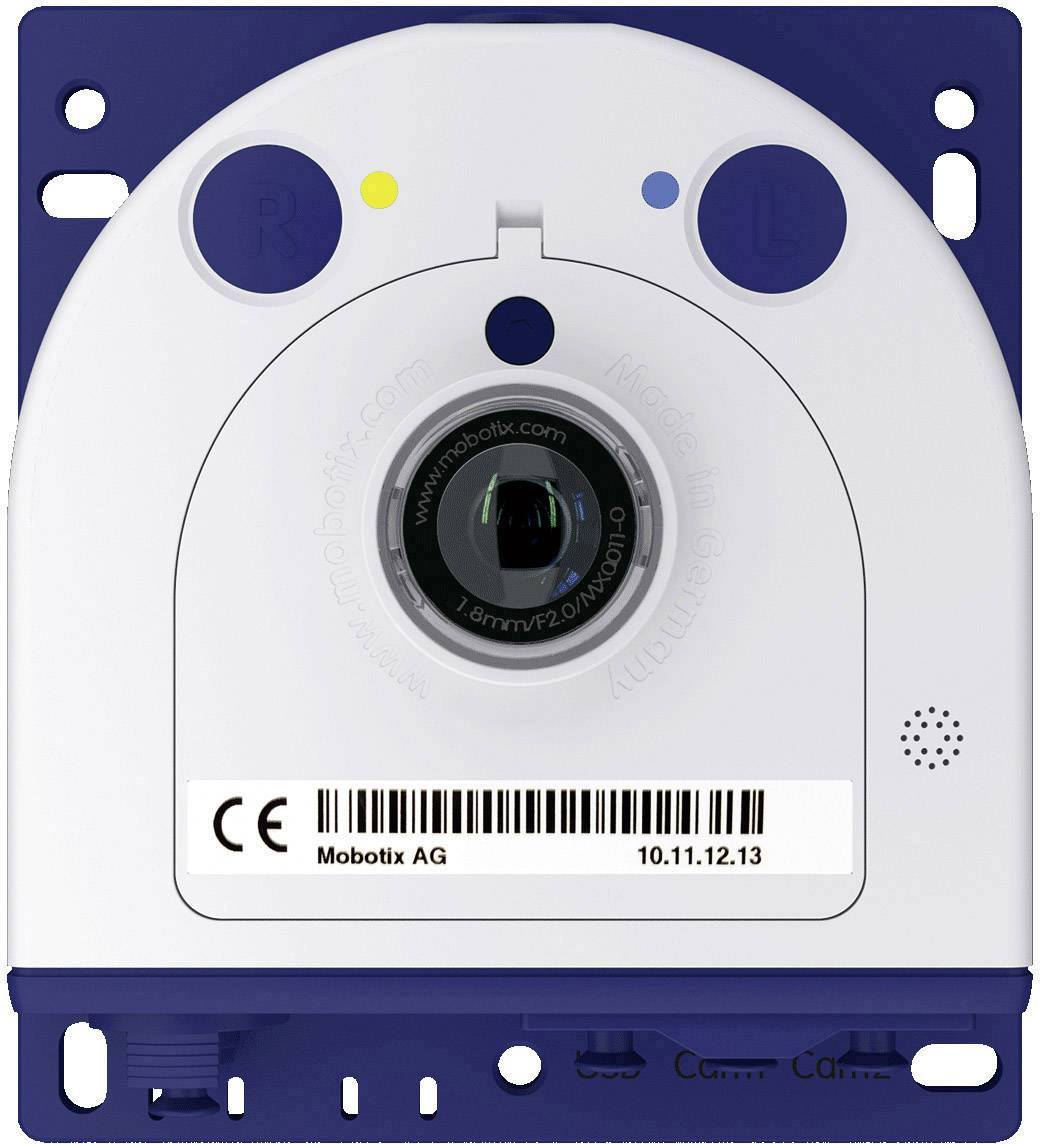

Mobotix Mx-S26B-6N016 LAN IP CCTV camera 3072 x 2048 p
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LAN IP-Compact camera;3072 x 2048 p;Mobotix;Mx-S26B-6N016Outdoors
- Resolution 6 MP
- With B016 Lens
- 180° night version
- This text is machine translated.
Technical specifications
- Video formats: MxPEG/MJPEG/H.264
- Operating temperature: -40 to + 50 °C.
- Product type
CCTV camera
- CCTV features
ONVIF support
Saves footage on SD card
Fish eye lens
PoE IEEE 802.3af
- Camera type
Compact camera
- Resolution (max.)
3072 x 2048 p
- Sensor size
14.11 mm (1/1.8")
- Sensor type
CMOS
- Max. viewing angle hor.
180°
- Vertical viewing angle
180°
- App compatibility
Yes
- Transfer type
LAN
- Light sensitivity (+ IR)
0.001 lx
- Used at
Outdoors
- Type
microSD card (up to 4 GB)
- Width
115 mm
- Height
130 mm
- Depth
48 mm
- Dim
(W x H x D) 115 x 130 x 48 mm
- Weight
430 g
- Factory colour
White
IK07
IP66
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1894024 Mobotix Mx-S26B-6N016 LAN IP CCTV camera 3072 x 2048 p
User & Safety Instructions
User & Safety Instructions 1894024 Mobotix Mx-S26B-6N016 LAN IP CCTV camera 3072 x 2048 p
Description
Sees everything. Is hardly to be seen.
The compact S26B Flex is a universally applicable, covered mounted video system with a detailed resolution. In the completely weatherproof IP camera is a miniature sensor module in the camera housing. Thanks to the hemispheric optics can be an area without dead angle video can be secured.
This text is machine translated.
The compact S26B Flex is a universally applicable, covered mounted video system with a detailed resolution. In the completely weatherproof IP camera is a miniature sensor module in the camera housing. Thanks to the hemispheric optics can be an area without dead angle video can be secured.
This text is machine translated.
Features
- The mx6 system platform 2. Generation, with MxBus, H.264 and ONVIF compatibility
- Recording on internal 4 GB microSD card (standard)
- As a day or night version available (6 MP color or black-sensor)
- Standard with temperature and vibration sensor and MxAnalytics (heat maps, number of corridors and behavior detection)
- Multi-streaming
- Weatherproof and shock-proof casing (IP66, IK07)
- Suitable for ceiling, wall or mast mounting
- Optional Vandalism protection made of stainless steel
Scope of delivery
- Camera with B016 Lens
- Fixings
- Ethernet patch cable 0.5 m
- Quick guide.
Hints
The S26B-Series does not have a mx bus connection and therefore can not be used as a door station camera alternative to T2 x.
