Mobotix Mx-SD1A-540-IR-VA MOBOTIX Mx-SD1A-540-IR-VA LAN IP CCTV camera 2720 x 1976 p
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LAN IP-Dome camera;2720 x 1976 p;MobotixMx-SD1A-540-IR-VA MOBOTIX;Mx-SD1A-540-IR-VAOutdoors
- Weatherproof, motorized ONVIF S/G/T/M Dome PTZ camera
- Up to 40x optical Zoom
- WDR up to 130 dB
- Temperature range -40 to 55 °C with heater
- Motor-controlled zoom lens
Technical specifications
- Frame rate at max resolution (frames/second): 30
- COMPRESSION METHOD: H.264 / H.265 / MJPEG
- Horizontal field of view: 62.6° (wide angle), 1.9° (tele)
- Vertical field of view: 48.8° (wide angle), 1.4° (tele)
- Product type
CCTV camera
- Series
MOBOTIX MOVE
- CCTV features
IR LEDs
Motorized lens
ONVIF support
Saves footage on SD card
Face recognition
Vehicle recognition
Optical zoom
- Camera type
Dome camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
2720 x 1976 p
- Sensor size
9.07 mm (1/2.8")
- Sensor type
CMOS
- Focal length
4,3 - 170 mm
- Max. viewing angle hor.
62.6°
- Vertical viewing angle
48.8°
- Transfer type
LAN
- Light sensitivity (+ IR)
0.001 lx
- Light sensitivity (- IR)
0.02 lx
- IR range (max.)
300 m
- Used at
Outdoors
- Type
microSD Karte (up to 1 TB)
- Width
249 mm
- (Ø)
207 mm
- Dim
(Ø) 207 mm
- Weight
3800 g
- F-numbers
F1.6-F4.95
- Enclosure material
Metal
Plastic
- Factory colour
White
IP66
IK10
- Signal standard
IP
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3152745 Mobotix Mx-SD1A-540-IR-VA MOBOTIX Mx-SD1A-540-IR-VA LAN IP CCTV camera 2720 x 1976 p
User & Safety Instructions
User & Safety Instructions 3152745 Mobotix Mx-SD1A-540-IR-VA MOBOTIX Mx-SD1A-540-IR-VA LAN IP CCTV camera 2720 x 1976 p
Description

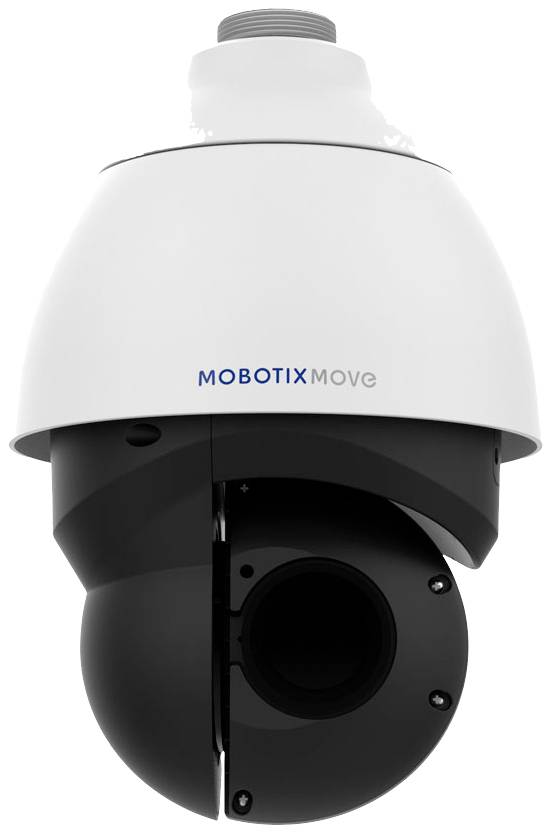

Mobotix MOVE 5MP Speeddome camera delivers the best results with its fast pan and tilt technology, automatic object detection and integrated video analysis - thanks to the integrated infrared lighting (LED, up to 300 m) even in complete darkness.
This text is machine translated.
This text is machine translated.
Features
- 10 Integrated Video Analytical Functions Incl DNN Face- and Vehicle-Numbers
- Image sensor 5MP Sony STARVIS II IMX675 (2608 x 1964), 1/2.8" progressive CMOS
- Automatic switching from color to B/W image (mechanical IR band-blocking filter)
- Motor controlled zoom lens (F1.6-F4.95: 4.3 to 170 mm, HxV image angle: 62.6°–1.9° x 48.8°–1.4°) with auto focus
- Remotely controllable optical Zoom
- Day/night mode
- Audio input
- Audio output
- Digital input:
- Digital output
- Motion detection
- Memory card slot.
Scope of delivery
- Mobotix MOVE Speeddome SD-540-IR-VA (DNN Analytics)
Hints
Memory card not included
