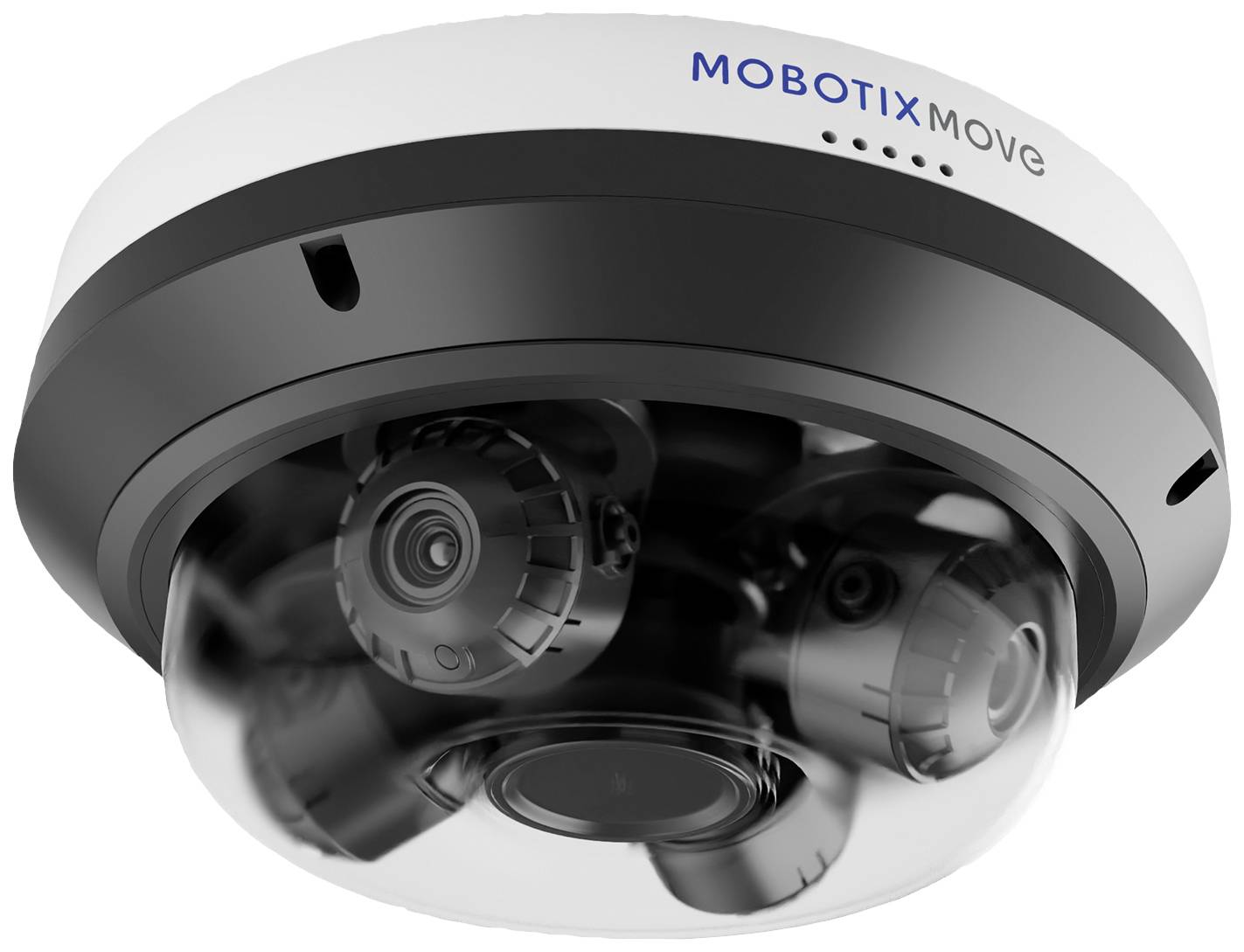

Mobotix Mx-VM1A-20-IR-VA LAN IP CCTV camera 2608 x 1964 p
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LAN IP-Dome camera;2608 x 1964 p;Mobotix;Mx-VM1A-20-IR-VAOutdoors
- 4 flexible image sensors (5 MP each)
- Up to 8 TB of SSD memory onboard
- Built-in video analytics
- Compact design
Technical specifications
- Lens viewing angle 111.5 - 53.7°
- COMPRESSION METHOD: H.264 / H.265 / MJPEG
- Lens type: Motor zoom lens
- 111.5° (wide angle), 53.7° (tele)
- 79° (wide angle), 40.2° (tele)
- Product type
CCTV camera
- Series
MOBOTIX MOVE
- CCTV features
Motorized lens
IR LEDs
ONVIF support
Optical zoom
- Camera type
Dome camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
2608 x 1964 p
- Sensor size
9.07 mm (1/2.8")
- Sensor type
CMOS
- Focal length
2,8 - 8 mm
- Max. viewing angle hor.
111.5°
- Transfer type
LAN
- Light sensitivity (+ IR)
0.001 lx
- Light sensitivity (- IR)
0.02 lx
- IR range (max.)
30 m
- Used at
Outdoors
- Type
microSD Karte (up to 1 TB)
- Height
105 mm
- (Ø)
255 mm
- Dim
(Ø x H) 255 mm x 105 mm
- Weight
2400 g
- F-numbers
F1.6
- Enclosure material
Metal
Plastic
- Factory colour
White
IP66
IK10
- Signal standard
IP
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3152761 Mobotix Mx-VM1A-20-IR-VA LAN IP CCTV camera 2608 x 1964 p
User & Safety Instructions
User & Safety Instructions 3152761 Mobotix Mx-VM1A-20-IR-VA LAN IP CCTV camera 2608 x 1964 p
Description
Four turn into one! Monitor large areas with the highest level of detail and only one camera installation. The Mobotix MOVE VDAL Multisensor camera has four manually aligned sensor modules each with 5 MP - four-fold overview - compact packing.
This text is machine translated.
This text is machine translated.
Features
- Remotely controllable optical Zoom
- Automatic IR band-pass filter
- Day/night mode
- WDR technology: WDR
- Audio input
- Audio output
- Digital input:
- Digital output
- Motion detection
- Memory card slot.
Scope of delivery
- Mobotix MOVE Vandal Multi-sensor VM-20-IR-VA
Hints
Memory card not included
