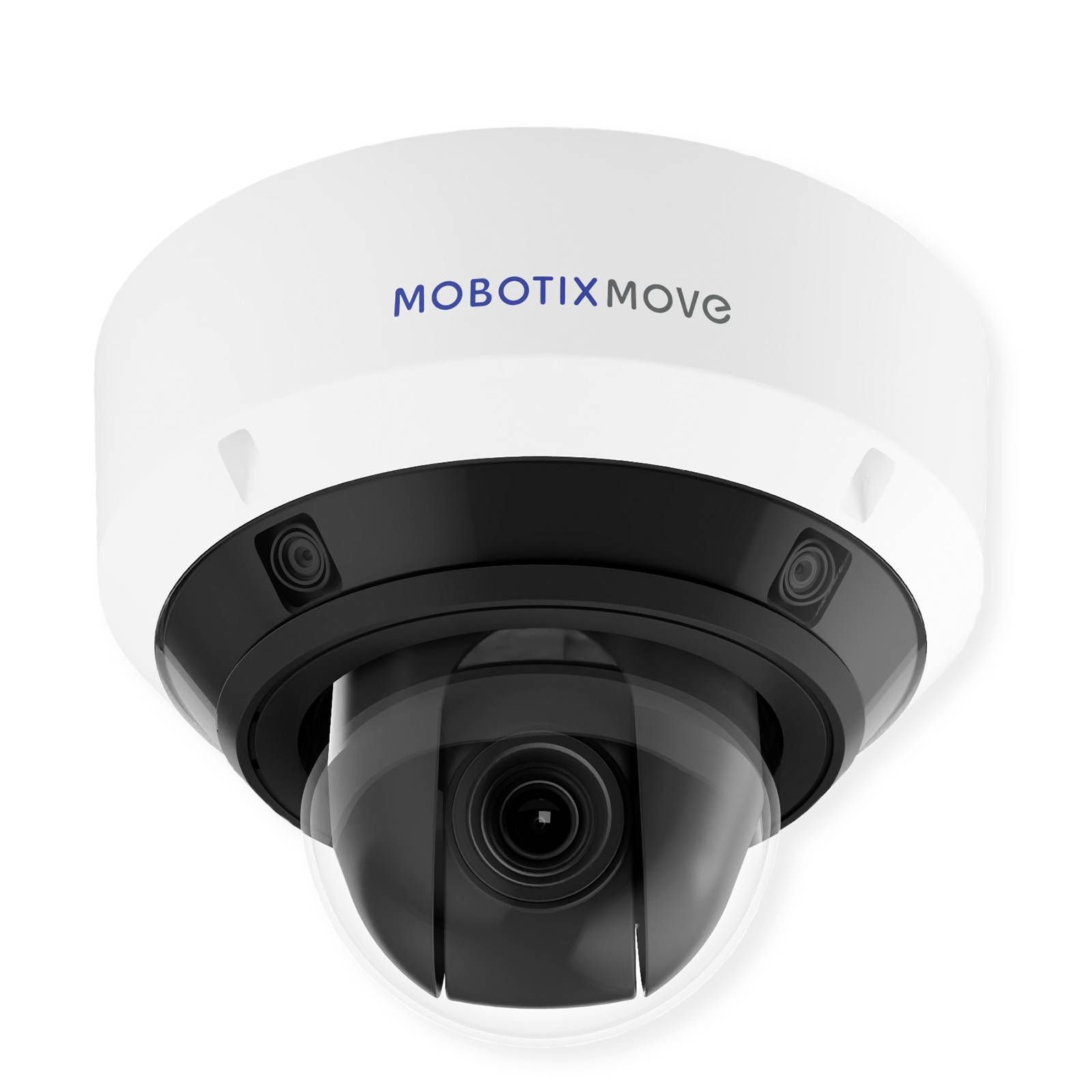

Mobotix Mx-VMSD1A-2021-VA LAN IP CCTV camera 2560 x 1920 p
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LAN IP-Dome camera;2560 x 1920 p;Mobotix;Mx-VMSD1A-2021-VAOutdoors
- 4 flexible image sensors (5 MP each)
- PTZ 2MP optical Zoom
- Built-in video analytics
- Compact design
Technical specifications
- Lens focal length 3.2 mm (PTZ 4.0-84.6 mm)
- Lens viewing angle 97° (PTZ 3.7-77°)
- 1/2.7" CMOS MULTI-SENSOR (1/2.8" CMOS)
- Product type
CCTV camera
- Series
MOBOTIX MOVE
- CCTV features
Motorized lens
IR LEDs
ONVIF support
Optical zoom
Pan-tilt-zoom
- Camera type
Dome camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
2560 x 1920 p
- Sensor size
9.4 mm (1/2.7")
9.07 mm (1/2.8")
- Sensor type
CMOS
- Focal length
3,2 mm
4 - 84,6 mm
- Transfer type
LAN
- Used at
Outdoors
- Type
microSD card (up to 512 GB)
- Height
195 mm
- (Ø)
250 mm
- Dim
(Ø x H) 250 mm x 195 mm
- Weight
3800 g
- F-numbers
F1.6
- Enclosure material
Aluminium (die-cast)
- Factory colour
White
IP66
IP67
IK10
- Signal standard
IP
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3152763 Mobotix Mx-VMSD1A-2021-VA LAN IP CCTV camera 2560 x 1920 p
User & Safety Instructions
User & Safety Instructions 3152763 Mobotix Mx-VMSD1A-2021-VA LAN IP CCTV camera 2560 x 1920 p
Description
Experience the best overview outdoors and indoors combined with remarkable mobility - all compactly combined in one device! The four sensors of the Mobotix MOVE combo-camera provide for a 360-degree all-round view. The PTZ pan, tilt, and zoom function allows you to capture all the details in the desired area. For installation, only one network cable is required.
360° overview or would you prefer to focus on the smallest details? Both! And that too in a camera.
This text is machine translated.
360° overview or would you prefer to focus on the smallest details? Both! And that too in a camera.
This text is machine translated.
Features
- Multidirectional 4 x 5 MP (fixed installation)
- Calibration-free multi-sensor unit
- Automatic Object Tracking (PTZ)
- PTZ 2MP optical Zoom
- Pan/tilt speed up to 500 deg/s.
- Intelligent Video-Motion-Detection
- NDAA-compliant
- IP 66 / IP 67 / IK 10 / NEMA 4X
- Memory card slot.
Scope of delivery
- Mobotix MOVE vandal multi-sensor PTZ combo VMSD-2021-VA
What kind of IP Cameras are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
