Mobotix Netzwerkkamera Mx-M16TB-R237 LAN IP CCTV camera 3072 x 2048 p
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LAN IP-Compact camera;3072 x 2048 p;MobotixNetzwerkkamera;Mx-M16TB-R237Outdoors
- With premium infrared sensor
- Resolution 6 MP
- View angle 17°
- This text is machine translated.
Technical specifications
- Thermal image sensor with 336 x 252 pixels: uncooled, IR range from 7.5 to 13.5 μm
- Temperature measurement range (adjustable): High Sensitivity: -40 to 160°C-Low sensitivity: -40 to 550°C
- Video formats: MxPEG/MJPEG/H.264
- Max. Image size (dual screen with both image sensors): 2 x 6 MP (6144 x 2048)
- Product type
CCTV camera
- Series
MOBOTIX M16
- CCTV features
Saves footage on SD card
2-way communication
Speaker
Microphone
ONVIF support
PoE IEEE 802.3af
Optical zoom
- Camera type
Compact camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
3072 x 2048 p
- Sensor size
14.11 mm (1/1.8")
- Sensor type
CMOS
- Max. viewing angle hor.
17°
- Vertical viewing angle
13°
- App compatibility
Yes
- Transfer type
LAN
- Light sensitivity (+ IR)
0.001 lx
- Used at
Outdoors
- Type
microSD card (up to 4 GB)
- Width
158 mm
- Height
210 mm
- Depth
207 mm
- Dim
(W x H x D) 158 x 210 x 207 mm
- Weight
1320 g
- Factory colour
White
IK06
IP66
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1894008 Mobotix Netzwerkkamera Mx-M16TB-R237 LAN IP CCTV camera 3072 x 2048 p
User & Safety Instructions
User & Safety Instructions 1894008 Mobotix Netzwerkkamera Mx-M16TB-R237 LAN IP CCTV camera 3072 x 2048 p
Description

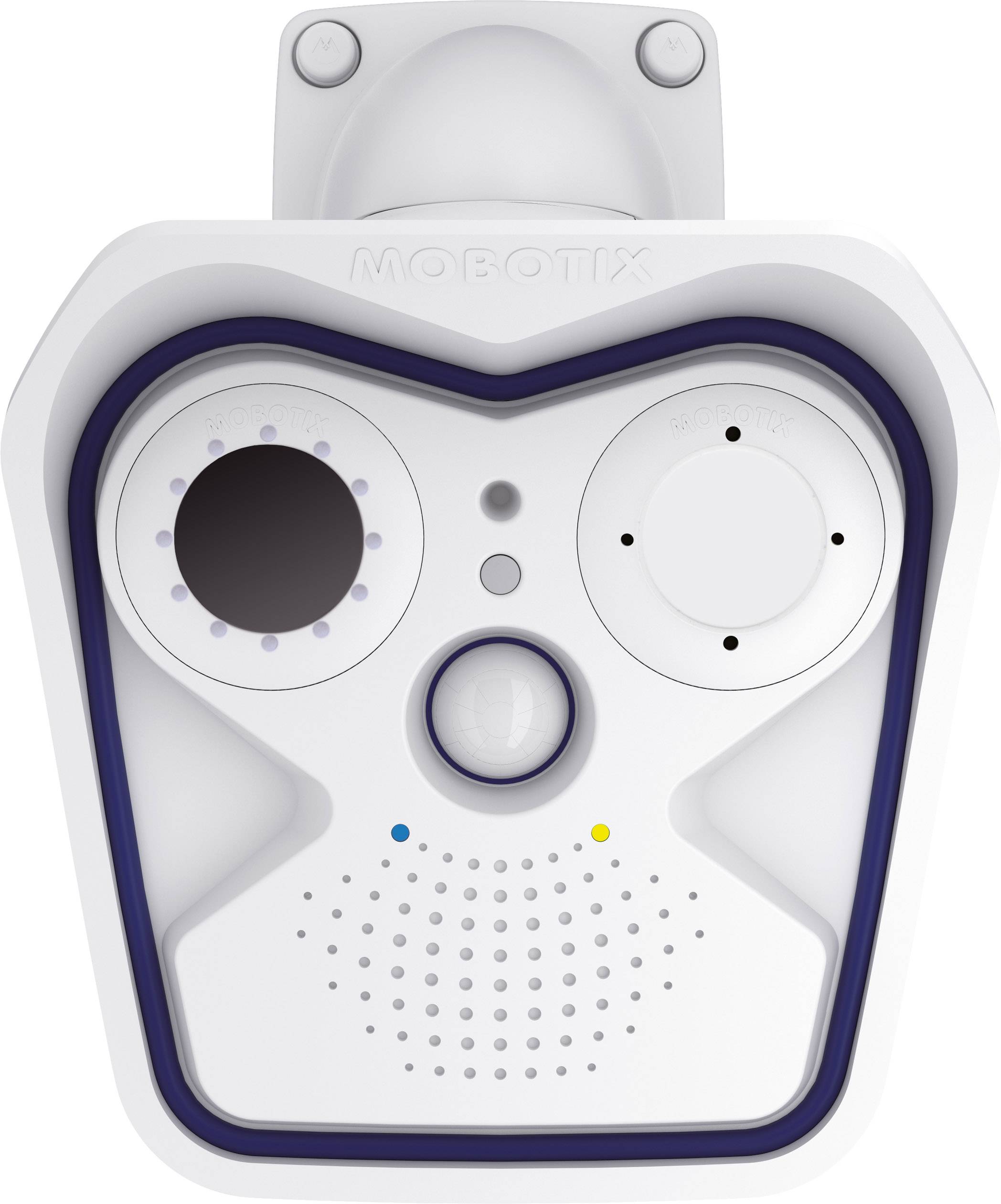

Twice as safe. Even in total darkness.
The intelligent video system with a built-in high-heat-image sensor uses all the advantages of the M16-camera designs. Thanks to the two directly adjacent lenses there is also a thermal overlay function with image overlay (thermal and optical), in order to be able to precisely locate in the visible image hotspots such as smoldering fires. The TR-cameras from MOBOTIX have a calibrated infrared sensor. You can use the heat radiation in the entire image area can also measure and individually adjustable limit value is exceeded or fallen below a an event (camera alarm, network message, activate a switch output, etc.).
This text is machine translated.
The intelligent video system with a built-in high-heat-image sensor uses all the advantages of the M16-camera designs. Thanks to the two directly adjacent lenses there is also a thermal overlay function with image overlay (thermal and optical), in order to be able to precisely locate in the visible image hotspots such as smoldering fires. The TR-cameras from MOBOTIX have a calibrated infrared sensor. You can use the heat radiation in the entire image area can also measure and individually adjustable limit value is exceeded or fallen below a an event (camera alarm, network message, activate a switch output, etc.).
This text is machine translated.
Features
- The mx6 system platform 2. Generation, with MxBus
- Premium infrared sensor with netd 50 mK permanently installed
- TR-temperature measurement in the entire image area
- Measurable added value with Thermal Radiometry: calibrated infrared sensor
- Additional optical sensor module of your choice
- Digital zoom with panning (vPTZ)
- Recording on internal 4 GB microSD card (standard)
- Built-in microphone and speaker
- PIR temperature and vibration sensor
- Multi-streaming
- Can be used in absolute darkness also MxActivitySensor
- Event Triggering upon exceeding or falling short of a temperature limit
- PoE-thermal camera with less than 10 W power consumption
- Mobile MOBOTIX App, MxManagementCenter.
Scope of delivery
- Infrared camera,
- Fixings
- Vario Flex wall and ceiling mount
- Ethernet patch cable 0.5 m
- Quick guide.
