Mobotix Zubehör Netzwerk Mx-O-M7SB-336RP100 LAN IP CCTV camera 336 x 256 p
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LAN IP-Compact camera;336 x 256 p;MobotixZubehör Netzwerk;Mx-O-M7SB-336RP100Indoors, Outdoors
- 2 x 4K UHD resolution
- Large dynamic range (WDR) with up to 120 dB
- Simple plug-in quick mounting system
- Robust in any environment: -40° to 65°C.
- IP66, IK10
Technical specifications
- Image sensor (color or black/white sensor): Up to 4K UHD 3840 x 2160, 16:9, 1/1.8"
- Light sensitivity: Colour sensor (day): 0.1 lx at 1/60 s; 0.005 lx at 1 s.; Black and white sensor (night): 0.02 lx at 1/60 s; 0.001 lx at 1 s.
- Weight without sensor modules: 1130 g
- Interfaces: 4 sensor/function modules, USB-C®, 2 slots for plug-in cards (network, iOS, etc.)
- Product type
CCTV camera
- Series
MOBOTIX S74
- CCTV features
Tamperproof
Saves footage on SD card
PoE IEEE 802.3at
IR LEDs
- Camera type
Compact camera
- Resolution (max.)
336 x 256 p
- Sensor size
1/1.8" (14.11 mm)
- Transfer type
LAN
- Light sensitivity (+ IR)
0.001 lx
- Light sensitivity (- IR)
0.005 lx
- IR range (max.)
30 m
- Used at
Indoors
Outdoors
- Width
232 mm
- Height
36 mm
- Depth
110 mm
- Dim
(W x H x D) 232 x 36 x 110 mm
- Weight
0.89
- Enclosure material
Aluminium
PBT
- Factory colour
White
IK10
IP66
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2973145 Mobotix Zubehör Netzwerk Mx-O-M7SB-336RP100 LAN IP CCTV camera 336 x 256 p
User & Safety Instructions
User & Safety Instructions 2973145 Mobotix Zubehör Netzwerk Mx-O-M7SB-336RP100 LAN IP CCTV camera 336 x 256 p
Description

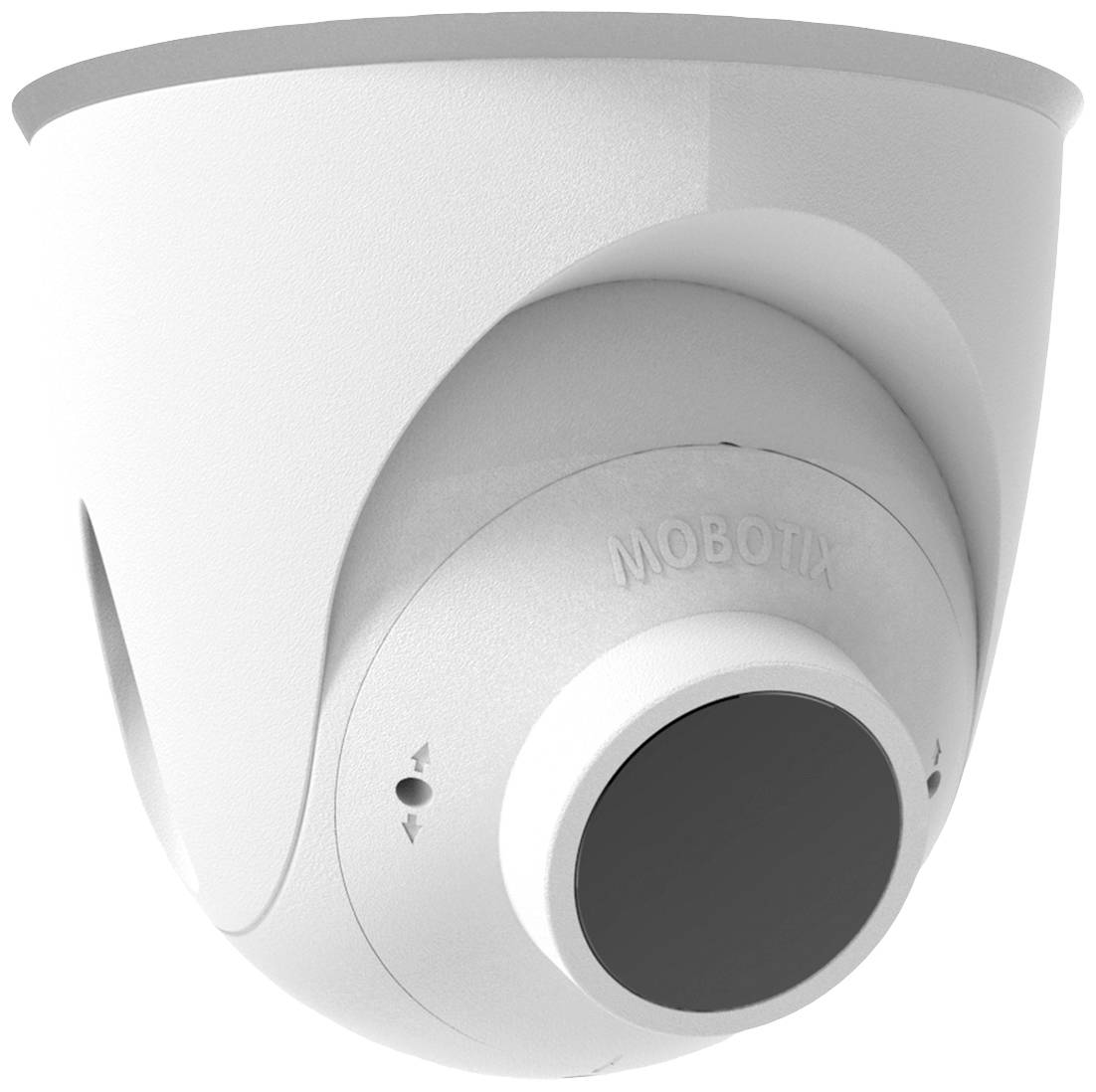

Mobotix S74 PT-mount, 45°, CIF, radiometry, white, Inclusive 2 m cable.
The Mobotix S74 is weather-proof and robust It is also the most flexible camera from Mobotix. With up to 4 modules, you have everything in view.
This text is machine translated.
The Mobotix S74 is weather-proof and robust It is also the most flexible camera from Mobotix. With up to 4 modules, you have everything in view.
This text is machine translated.
Features
- Platform with the most flexible codec support: H.264, H.265, MxPEG+ and MJPEG
- The ONVIF Profile S and T compliance ensures the highest level of interoperability
- Increased modularity thanks to the flexible use of a combination of up to three sensor or function modules
- Motion detection
- Suitable for outdoor use
- Wall-mounting possible.
Scope of delivery
- Camera
- 1 SD card with 8 GB (installed)
- 1 x important safety information
- 1 sticker with EAN number of the camera
- 1 stickers showing the camera IP address
- 1 Module key (gray)
- 1 lens wrench (blue)
- 4 Wooden screws 4.5 x 60 mm
- 4 plug S8
- 2 covers for screw, plastic, white.
