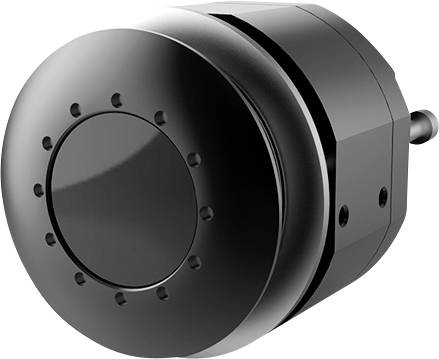

Mobotix Zubehör Netzwerk Mx-O-SMA-TS-T119
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor module
- Weight
0.62
- Factory colour
Black
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2340949 Mobotix Zubehör Netzwerk Mx-O-SMA-TS-T119
Description
Features
- Extension of the S15/S16 system solution based on the latest MOBOTIX thermal technology
- Highly sensitive thermal image sensor: NETD type. 50 MK, <79 MK, IR range 7.5 to 13.5 micrometer, uncooled microbolometer, up to 9 fps
- One or two thermal sensor modules are connected to the S15/S16 via sensor cable, just like the standard sensor modules
- Weatherproof and can be mounted without any additional accessories
- Protection class IP66, environment temperature range: -30 to +60 °C.
- Housing: Aluminum, black anodized
- Horizontal angle of view: 25°
- Vertical angle of view: 19°
- Focal length: equivalent to B119 optics
- Max. Image size: Image size: 336 x 252 pixels (can be scaled up to max. 6MP)
- Camera optics: Thermal
- Type. 50 MK, < 79 MK (50 MK corresponds to temperature changes of 0.05 °C), pixel spacing 0.017mm (17µm) at 336 x 256 px
- This text is machine translated.
