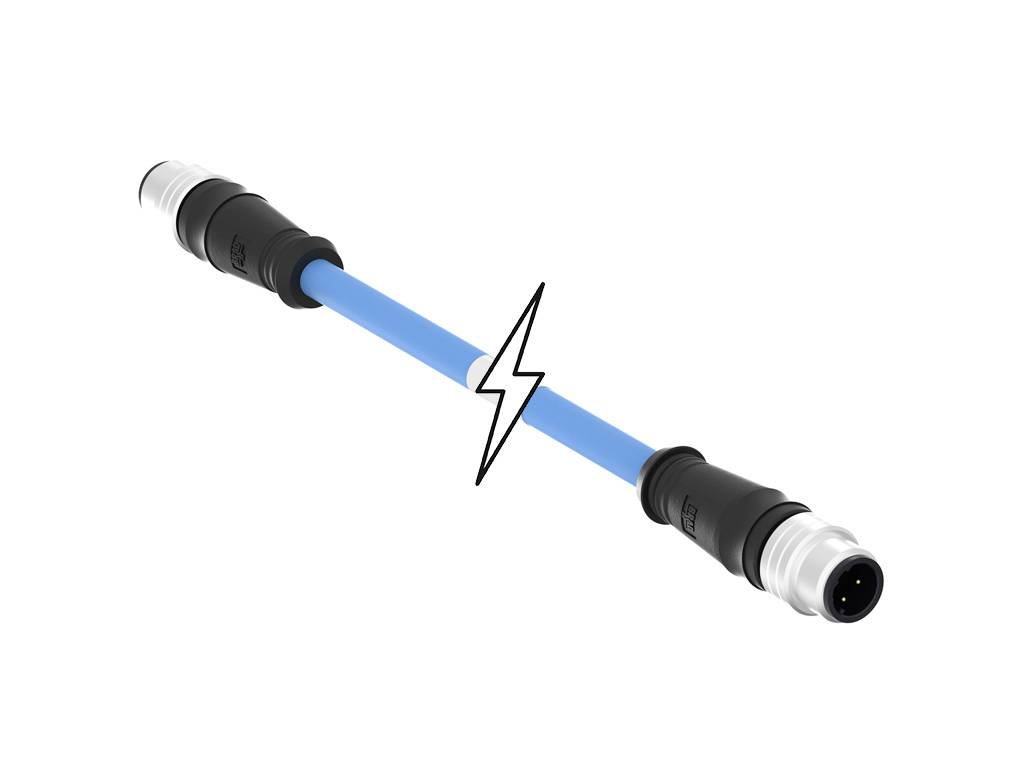

Molex 1201080364 Sensor/actuator connector (pre-fab) M12 Plug 45.00 m No. of pins (RJ): 4 1 pc(s)
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug
Connector standard
Sensor connector
Connection side A
Micro-Change (M12)
Connection side B
Micro-Change (M12)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 275.00 / piece)
€ 275.00
incl. VAT
Only 7 Piece(s) available
Highlights & Details
Ethernet
- Micro-Change (M12) Double-Ended Cordset, 4 Poles, Male (Straight) to Male (Straight), 24 AWG, TPE Cable, 45.0m (147.64' ) Length, 6.99mm (.275") Diameter, Blue
- This text is machine translated.
Our service for you
Technical specifications
- Wire size AWG: 24Coupling type: With threadPerformance class: 5eMaterial - Connector body: PURMaterial - union nut: Nickel-plated brassOrientation: Straight to Straight
- Type
Molex WOD Industrial Solution
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug
- Connector standard
Sensor connector
- Connection side A
Micro-Change (M12)
- Connection side B
Micro-Change (M12)
- No. of pins
4
- Cable length
45.00 m
- Jacket material
TPE
- Nominal voltage
30 V
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Connection
Plug
- Factory colour
Blue
- Thread type connection side
M12
- Coding
D
- Contact material
Copper alloy
- Contact surface
Gold
IP67
- Features
TPE
- Min. temperature
-20 °C
- Max. temperature
+75 °C
- Seal type
Screw-on
- Manufacturer part #
1201080364
- Industrial packaging
Yes
- Content
1 pc(s)
- Cable Ø
6.99 mm
- Cable Ø (max.)
6.99 mm
- Cable Ø range
6.99 mm (max)
- RoHS-compliant
Yes
- Engineering Part No
E11A06006M450
- Engineering Series Name
Ethernet Cordsets
- Engineering Series No
120108
Documents & Downloads
Datasheet
Datasheet 2447126 Molex 1201080364 Sensor/actuator connector (pre-fab) M12 Plug 45.00 m No. of pins (RJ): 4 1 pc(s)
Datasheet 2447126 Molex 1201080364 Sensor/actuator connector (pre-fab) M12 Plug 45.00 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2447126 Molex 1201080364 Sensor/actuator connector (pre-fab) M12 Plug 45.00 m No. of pins (RJ): 4 1 pc(s)
Circuit diagramm
Circuit diagramm 2447126 Molex 1201080364 Sensor/actuator connector (pre-fab) M12 Plug 45.00 m No. of pins (RJ): 4 1 pc(s)
Description
Micro-Change (M12) Double-Ended Cordset, 4 Poles, Male (Straight) to Male (Straight), 24 AWG, Blue TPE Cable, 45.0m (147.64' ) Length, 6.99mm (.275") Diameter
