Name: Molex Molex MOL Power & Signal Sol. 1727040103 D-SUB housing Metal 45 ° 1 pc(s) Carton
Brand: Molex
SKU: 2447509
Availability: BackOrder

Metal D-sub plug, rectangular shape, two screws, black cable at rear. Used in electrical connections.

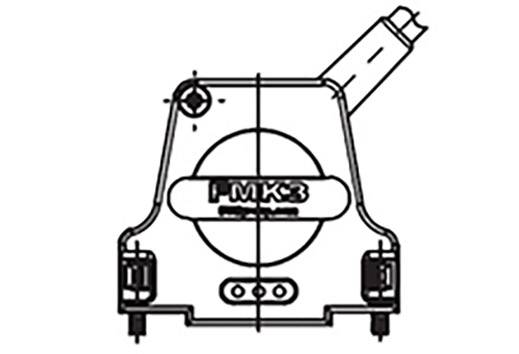

Technical drawing of a mechanical device with the label 'MK3'. Shows structural details with connections and an angled pipe.

1/2

Image similar

Packaging type

Carton

Product type

D-SUB housing

Case material

Metal

Connection angle

45 °

Content

1 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed, 30 Dec 2026

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Multiple: 1

Total (€ 16.05 / piece)

€ 16.05

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

D-Sub

Metal

Technical specifications

Shielding: YesFastening method: ScrewsOperating temperature range: -35 °C to +100 °CThread size: 4-40 UNC

Packaging type: Carton

Product type: D-SUB housing

Case material: Metal

Connection angle: 45°

Content: 1 pc(s)

Shielded: Yes

Manufacturer part #: 1727040103

Cable Ø (max.): 12 mm

Cable Ø up to: 3 mm

Cable Ø range: 3 - 12 mm

RoHS-compliant: Yes

Features: + locking screws

Type: Molex MOL Power & Signal Sol.

Engineering Part No: FMK5

Engineering Series Name: FCT GENERAL

Engineering Series No: 172704

Material (details): Die-cast zinc; TPE; steel

Thread type: Standard

UKCA: yes
