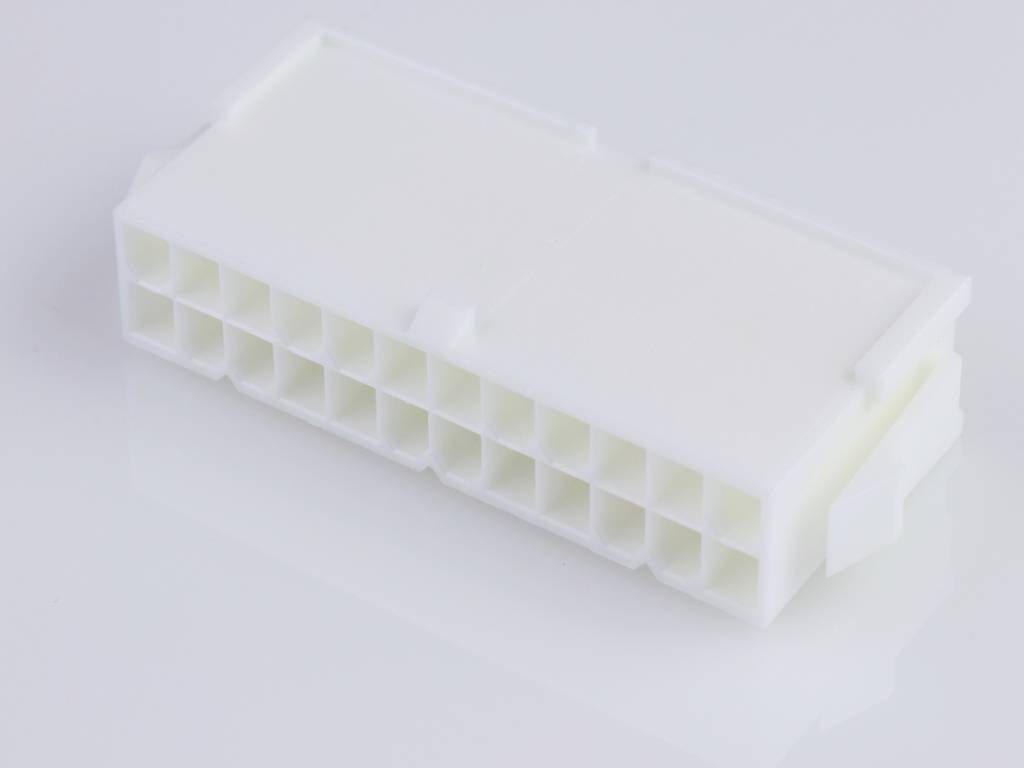

Molex Socket housing cable Total number of pins 24 Contact spacing: 4.2 mm 39012246 1 pc(s) Bag
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Plug
No. of rows
2
CS
4.2 mm
Total number of pins
24
Datasheet (PDF)
Number
Total (€ 2.79 / piece)
€ 2.79
incl. VAT
14-day return policy included
Highlights & Details
MINI FIT
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 24
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Socket housing cable
- Connector type
Plug
- No. of rows
2
- CS
4.2 mm
- Total number of pins
24
- Nominal current
13 A
- Nominal current - rounded value
13 A
- Content
1 pc(s)
- Case material
Nylon (NL)
- Manufacturer part #
39012246
- Factory colour
Ecru
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
5559-24P-210
- Engineering Series Name
MINIFIT JR PLUG HSG
- Engineering Series No
05559
Documents & Downloads
Datasheet
Datasheet 2448323 Molex Socket housing cable Total number of pins 24 Contact spacing: 4.2 mm 39012246 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2448323 Molex Socket housing cable Total number of pins 24 Contact spacing: 4.2 mm 39012246 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2448323 Molex Socket housing cable Total number of pins 24 Contact spacing: 4.2 mm 39012246 1 pc(s) Bag
Description
Mini-Fit Jr. Plug Housing, Dual Row, 24 Circuits, UL 94V-0, with Panel Mounting Ears, Natural
