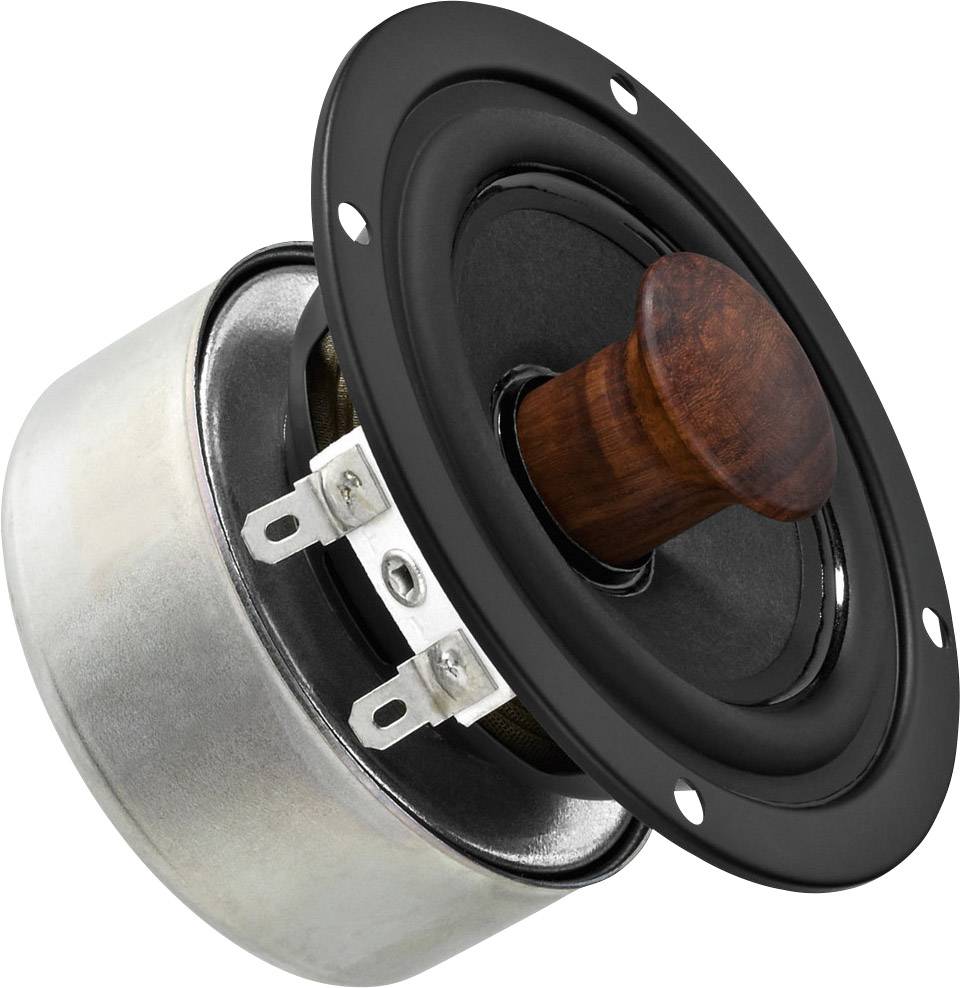

Monacor SPX-32M 9.3 cm Wideband speaker 8 Ω
EAN:
Part number:
Item no:
Total (€ 29.99 / piece)
€ 29.99
incl. VAT
14-day return policy included
Technical specifications
- Impedance (Z): 8 ohms
- Resonance frequency (fs): 110 Hz
- Max. Frequency range F3-22000 Hz
- Maximum load capacity 40 WMAX
- Nominal load (P): 20 WRMS
- Avg. Sound pressure (1 W/m): 88 dB
- Yield (Cms): 1.11 mm/N.
- Moving mass (Mms): 1.7 g
- Mechanical quality (Qms): 7.66
- Electrical quality (Qes): 0.60
- Total Quality (Qts): 0.56
- Equivalent volume (Vas): 1.6 l
- DC resistance (Right): 6.6 ohms
- Power factor (WxL) 3.69 Tm
- Voice coil ind. (Le): 0.18 mH
- Voice coil diameter: Dia. 20 mm
- Voice coil former: Kapton
- Linear deflection (XMAX): +/- 1.1 mm
- EFF. Membrane area (Sd): 32 cm2
- Magnet weight: 99 g
- Weight: 0.52 kg
- Product type
Wideband speaker
- Speaker size (cm)
9.3 cm
- Max. frequency
22000 Hz
- Min. frequency
110 Hz
- Impedance
8 Ω

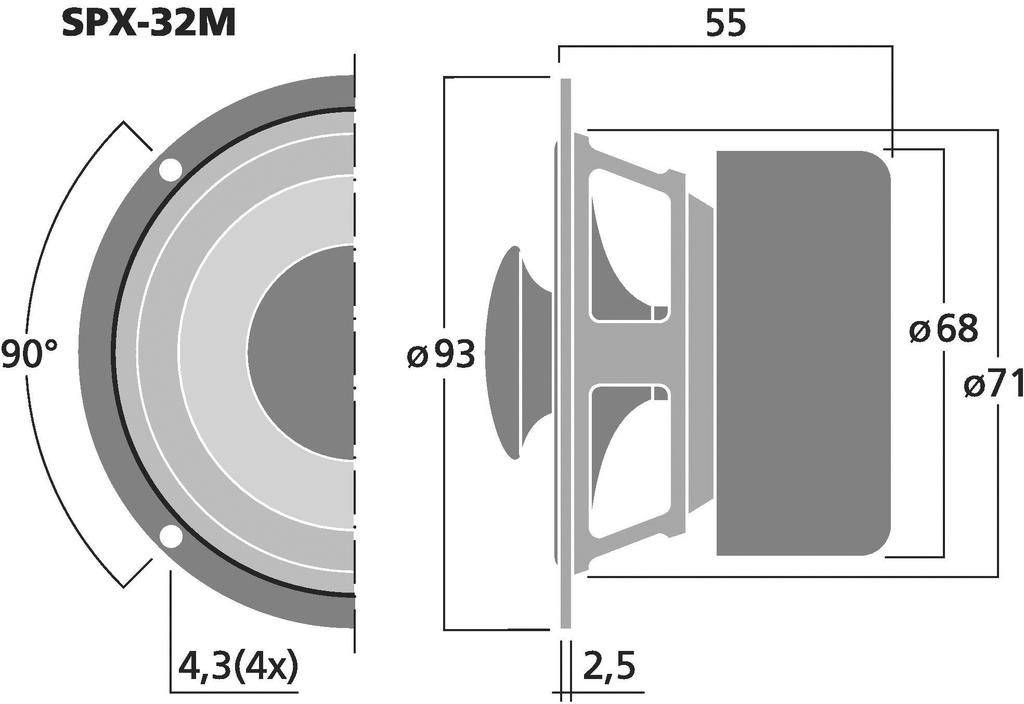

- Recess diameter
71 mm
- Frequency range
110 Hz - 22000 Hz
Description
Features
- Hi-Fi wideband speaker, 40 WMAX, 20 WRMS, 8 ohms
- Very good sound quality
- High-quality paper membrane
- Phase plug made of wood for optimizing the radiation behavior
- Rear-ventilated spider
- Shielded magnet system
- For use in small loudspeakers or satellite systems
- Ideal for use in FAST loudspeakers (Full range and Subwoofer Technology)Hobby HiFi 03/2012 Audiophile genes thanks to paper diaphragm and phase plug made of solid wood.
- This text is machine translated.
