Name: Monacor TXA-1020USB Portable speaker, Portable PA speaker 25 cm 10 inch rechargeable, mains-powered 1 pc(s)
Brand: Monacor
SKU: 1416892
Price: 1379 EUR
Availability: SoldOut

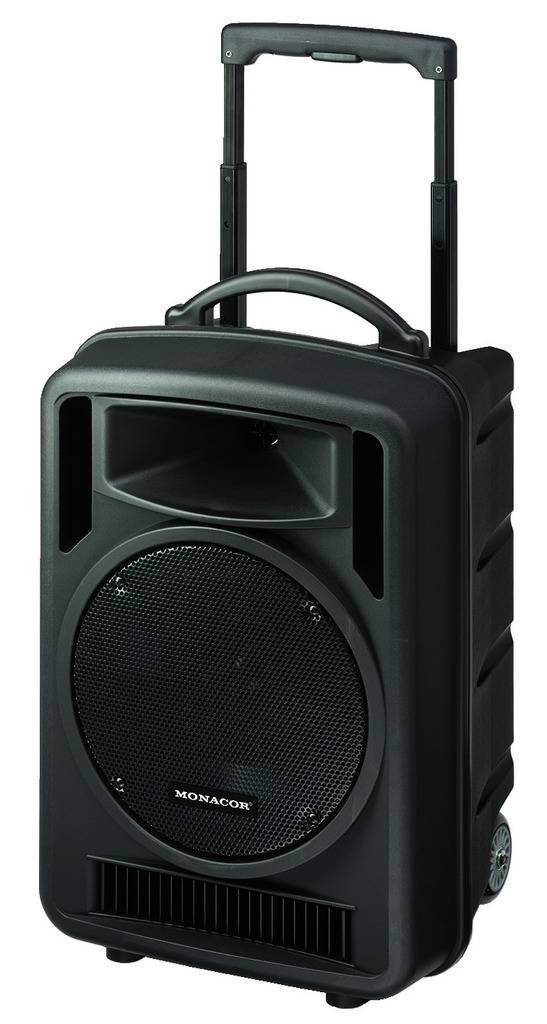

Portable black speaker with wheels and extendable handle, suitable for mobile audio use.

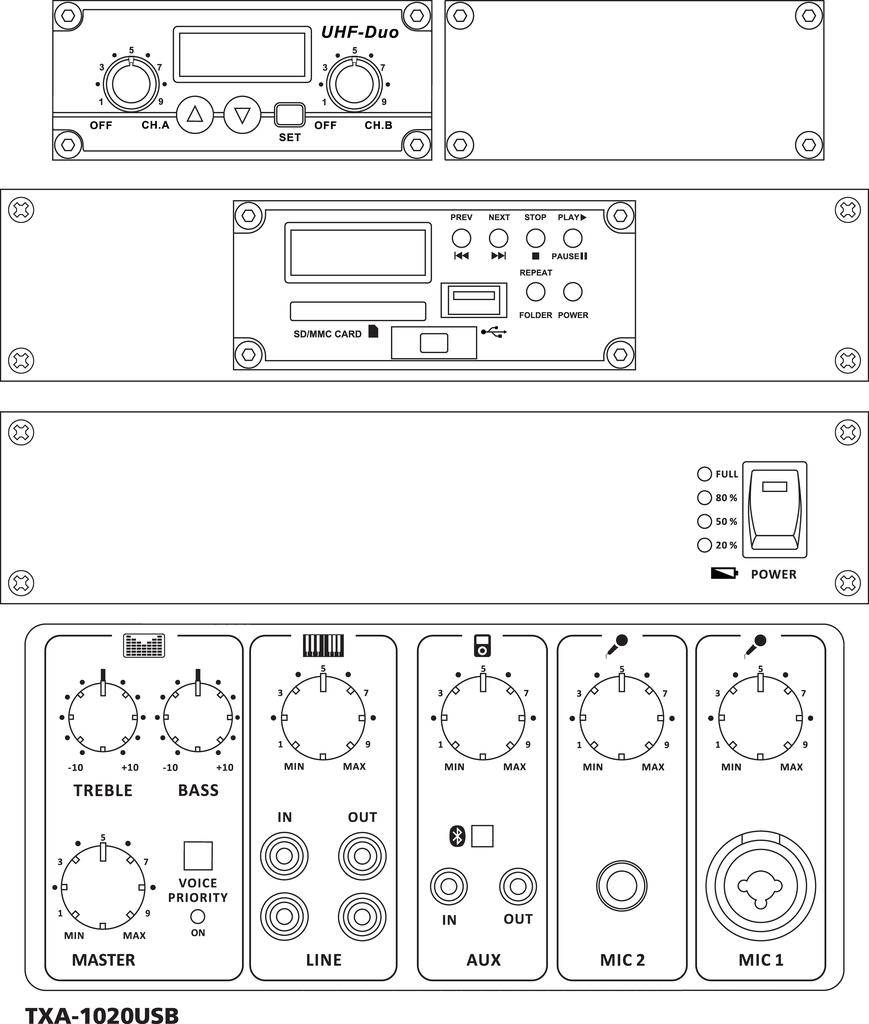

The diagram shows the front panels of three audio devices with controls, displays, and connections for various audio functions.

Black portable speaker with handle and wheels, marked with 'Monacor'. Ideal for easy transportation of audio equipment.

Illustration of audio devices with controls and connections. Top: UHF dual receiver. Bottom: Mixing desk with bass, treble, and volume controls.

1/4

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,379.00 / piece)

€ 1,379.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Portable High-power amplifier systems TXA-1020 USB

Integrated, adjustable 2-channel multi-frequency receiver unit in UHF PLL technology and Bluetooth receiver
MP3 player with SD-card reader and USB-interface

Technical specifications

Output power: 170WMAX/120WRMS
Frequency range 20-20000 Hz
Carrier frequency: 863,1-864.9 MHz
Range: approx. 30 m
Sensitivities:
Mic-Inputs: 6 mV
Line inputs: 300mV (incl. Aux)
Link: optional (TXA-1020 MT)
Sound controller, Depth: +/-10 dB/100 Hz

Product type: Portable speaker

RMS power: 120 W

RMS power (subwoofer): 120 W

Max. power: 170 W

Speaker size (cm): 25 cm

Speaker size (inch): 10 inch

Interfaces: Line in
Mic 6.35 mm in
Mic input combo jack (XLR, 6.35 mm jack)
SD memory card slot
USB type B

Features: Bluetooth
Built-in MP3 player
Cordless
Casters

Weight: 19.1 kg

Frequency range: 20-20000 Hz

Power supply (LOV): rechargeable
mains-powered

Dim: (L x W x H) 32 x 36 x 58 cm

Max. battery life: 4 h

Max. RMS power: 170 W

Width: 36 cm

Height: 58 cm

Length: 32 cm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1416892 Monacor TXA-1020USB Portable speaker, Portable PA speaker 25 cm 10 inch rechargeable, mains-powered 1 pc(s)

Description

The TXA-1020 surprise 06/2015 Tools4music sound could, surprisingly well tuned sound.

This text is machine translated.

Features

Portable High-power amplifier system, with integrated, adjustable 2-channel multi-frequency receiver unit in UHF PLL technology and Bluetooth receiver
Powerful Class D version 170WMAX, with optimum efficiency
Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (up to 4 hours of operating time), integrated automatic charging of rechargeable battery with charging status display, deep discharge protection
For mobile use, for example, sales events, Lectures
2 x 16 selectable UHF frequencies (863,1-864.9 MHz) with Diversity System
Powerful 2-way speaker system with 25 cm bass loudspeaker (10")
1 microphone input via combination socket (XLR/6.3-mm jack), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 Aux input (3.5-mm jack), all inputs can be regulated
Common master controller, 2-way tone control
1 stereo line output (RCA), 1 aux output (3.5 mm jack)
Switchable microphone priority function
Through the telescopic handle and 2 wheels can be pulled out of the amplifier system conveniently like a trolley
Stand sleeve
Free registration and in the EU
Amplifier System with 2-channel radio receiver
MP3 player with SD-card reader and USB-interface
Supplied with remote control for the MP3 player

Scope of delivery

Remote control for the MP3 player.

Description

The TXA-1020 surprise 06/2015 Tools4music sound could, surprisingly well tuned sound.

This text is machine translated.

Features

Portable High-power amplifier system, with integrated, adjustable 2-channel multi-frequency receiver unit in UHF PLL technology and Bluetooth receiver
Powerful Class D version 170WMAX, with optimum efficiency
Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (up to 4 hours of operating time), integrated automatic charging of rechargeable battery with charging status display, deep discharge protection
For mobile use, for example, sales events, Lectures
2 x 16 selectable UHF frequencies (863,1-864.9 MHz) with Diversity System
Powerful 2-way speaker system with 25 cm bass loudspeaker (10")
1 microphone input via combination socket (XLR/6.3-mm jack), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 Aux input (3.5-mm jack), all inputs can be regulated
Common master controller, 2-way tone control
1 stereo line output (RCA), 1 aux output (3.5 mm jack)
Switchable microphone priority function
Through the telescopic handle and 2 wheels can be pulled out of the amplifier system conveniently like a trolley
Stand sleeve
Free registration and in the EU
Amplifier System with 2-channel radio receiver
MP3 player with SD-card reader and USB-interface
Supplied with remote control for the MP3 player
