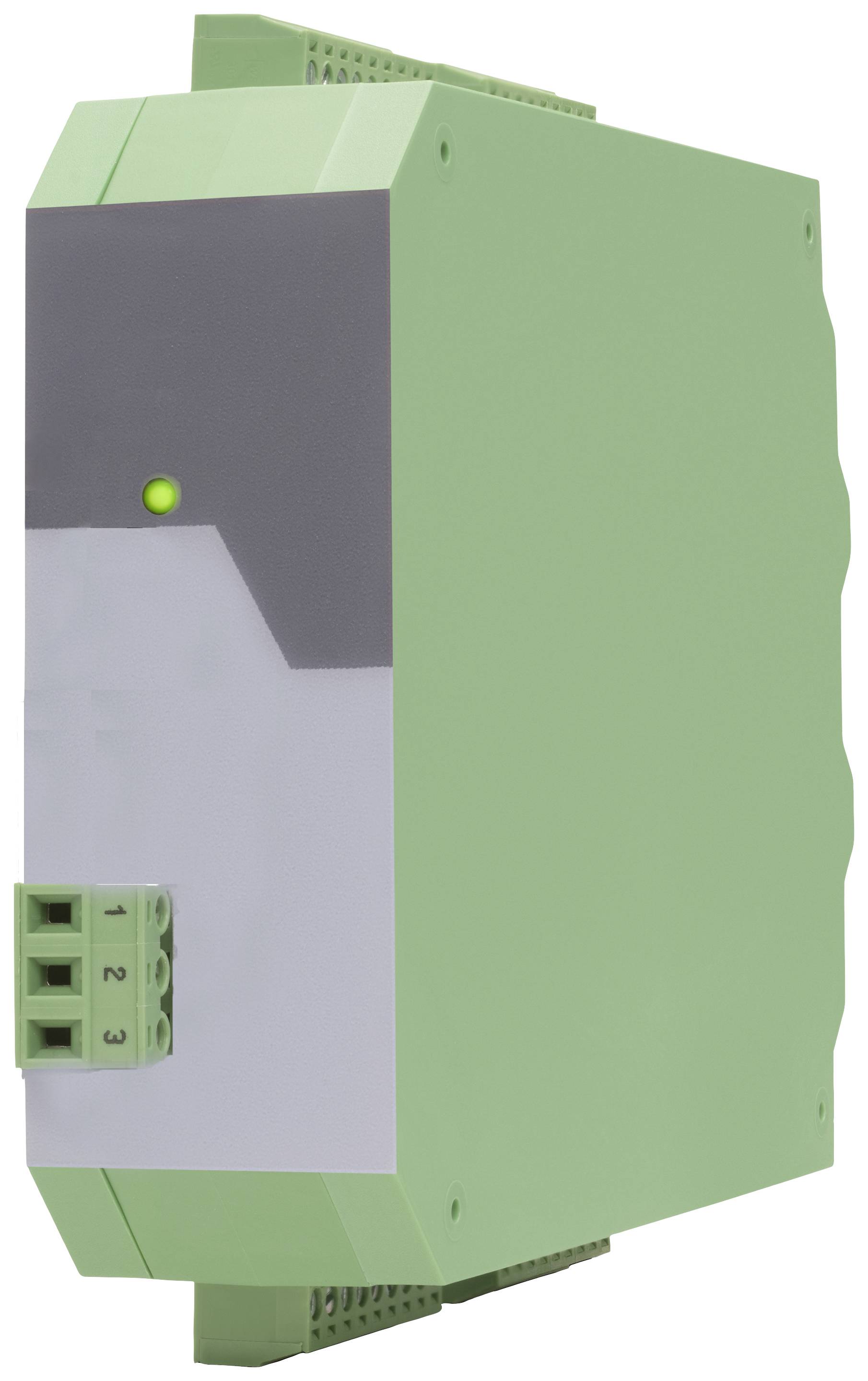

Motrona 7379.5021 IO module No. of digital inputs: 1
EAN:
Part number:
Item no:
Product type
IO module
Type
7379.5021
Operating voltage
24 V DC
Operating voltage
12 - 30 V DC
Height
109 mm
Datasheet (PDF)
Number
Total (€ 251.26 / piece)
€ 251.26
plus VAT.
Only 2 Piece(s) available
Highlights & Details
DMS to IO-Link converter
- DMS input with read-back
- Configuration:
- Voltage: +/- 5mV, +/-10mV, +/-20mV, +/-40mV, +/-80mV
- 16-bit resolution
- Accuracy +/- 0.01% / 10K
- DMS supply voltage 3-10 VDC max. 50 mA
Technical specifications
- Connections Connection type: Screw terminals, 1.5 mrn2/ AWG 16
- Voltage supply input voltage: 24VDC (18 ... 30 VDC - via 10 link master port)
- Voltage supply protective circuit: Reverse polarity protection
- Power supply current consumption: Approx. 75 mA (unloaded)
- DMS input number: 1 with readback
- DMS configuration input: Voltage
- DMS input sensitivity: +1- 5mV, +/-10mV, +/-20e, +/-4OmV, +/-80mV
- 16-bit DMS input resolution
- DMS input accuracy: +/- 0.01% / 10K
- DMS input DMS supply voltage: 3-10 VDC
- DMS input Output current: Max. 50 mA
- Control inputs (only with option "CO")Number: Format: 3
- Control inputs (only with option "CO")Frequency: HTL, PNP (Low 0 ... 3 V, high 9 ... 30 V) max. 1 kHz
- CONTROL inputs (only with option "CO") Response time: Approx. 1 ms
- Control inputs (only with option "CO")Transfer time (10 Link): Every approx. 2 ms - (10 link cycle time)
- Control inputs (only with option "CO") Load: Max. 2 mA at 24VDC
- Control outputs (only with "CO" option) Number: 2
- Control outputs (only with option "CO")Format: 5 ... 30 V (depending on voltage on Com+), PNP
- Control outputs (only with "CO" option) Output current: Max. 100 mA per output (with external Com+ supply!)
- CONTROL outputs (only with option "CO")Response time: Min. 1 ms (Depending on "Sampling Time" and "Filter" setting)
- Control outputs (only with option "CO")Transfer time (10 Link): Every approx. 2 ms - (10 link cycle time)
- Assembly / Specification: Device /10 Link V1.1
- I0-Link bitrate COM 3 (230.4 kBit/s)
- I0-Link Port Class: Type A
- I0-Link Cycle time: Min. 2 ms
- I0-Link Data width: 16 bytes (14 bytes (input data) + 1 bytes (CO status) + 1 bytes (diagnostic data))
- Display elements Number of:1 LED
- Display elements Function: 1 x green for operating status or 10 link status (with option "CO")
- Housing material: Plastic
- Casing mounting: On 35 mm DIN rail (according to EN 60715)
- Case dimensions (W x H x D) (without connections) 34 x 100 x 131 mm
- Case dimensions (W x H x D) (with connections) 34 x 109 x 140 mm
- Housing weight: Approx. 160 g
- Housing protection IP20
- Ambient temperature operation: -20 °C ... +60 °C non-condensing
- Ambient temperature Storage: -25 °C ... +70°C
- Ambient conditions Altitude: Max. 2000 m above sea level
- Ambient conditions Humidity: Max. 80% relative humidity up to 30°C.
- Environmental conditions Pollution level: 2
- MTBF in years (continuous operation at 60 °C): 92.9 a
- Programming
- Product type
IO module
- Type
7379.5021
- Operating voltage
24 V DC
- Operating voltage
12 - 30 V DC
- Height
109 mm
- Length
140 mm
- Width
34 mm
- No. of digital inputs
1
- Dim
(L x W x H) 140 x 34 x 109 mm
- Manufacturer part #
7379.5021
Documents & Downloads
Datasheet
Datasheet 2899374 Motrona 7379.5021 IO module No. of digital inputs: 1
User & Safety Instructions
User & Safety Instructions 2899374 Motrona 7379.5021 IO module No. of digital inputs: 1
Description
This device is Ideal suitable for connecting a DMS full bridge sensor whose converted measurement result is transmitted cyclically via the process data via IO link.
The individual device parameters can be set and stored using Diverser engineering tools or via IO-Link during operation. The supported "data storage" mechanism makes it possible to exchange devices easily and without problems at any time.
This text is machine translated.
The individual device parameters can be set and stored using Diverser engineering tools or via IO-Link during operation. The supported "data storage" mechanism makes it possible to exchange devices easily and without problems at any time.
This text is machine translated.
Features
- Robust plastic casing for direct snapping onto DIN rails
Scope of delivery
- User manual
