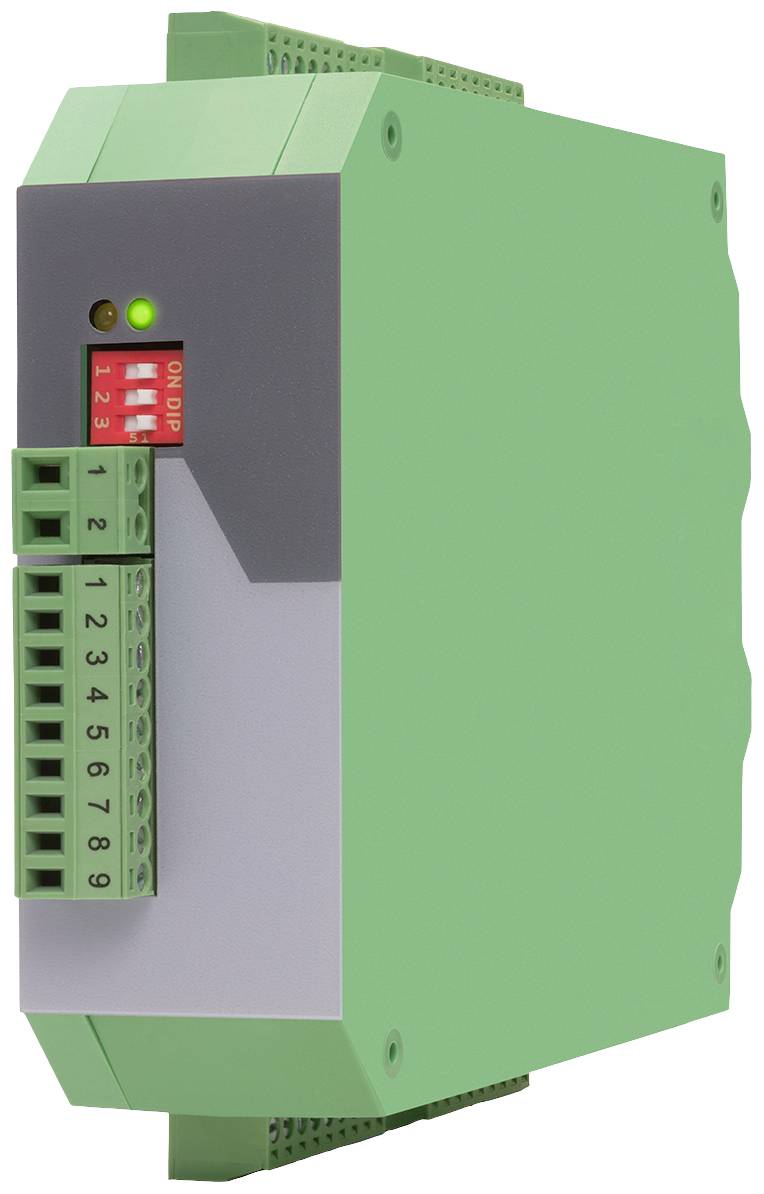

Motrona 7184.5024 IO module Screw terminal No. of digital outputs: 4 No. of digital inputs: 1
EAN:
Part number:
Item no:
Product type
IO module
Interfaces
Screw terminal
Type
7184.5024
Operating voltage
10 - 30 V DC
Height
118 mm
Datasheet (PDF)
Number
Total (€ 612.61 / piece)
€ 612.61
plus VAT.
Only 2 Piece(s) available
Highlights & Details
4-way sensor distributor/splitter with potential separation
- 1 pulse input in the format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
- Input frequency up to 250 kHz [HTL] or 1 MHz [RS422 / TTL]
- 4 push-pull output levels
- Formats according to the input signals, but with individual assignment of the output level for each output
- Potential separation between inputs and outputs
Technical specifications
- Input voltage supply: 10 … 30 VDC
- Voltage supply protective circuit: Reverse polarity protection
- Power supply remaining ripple: ≤ 10% at 24 VDC
- Power supply current consumption: Approx. 25 mA, with unloaded sensor supply
- Power supply Connection type: Screw terminals, 1.5 mm² / AWG16
- Sensor supply output voltage 1: 24 VDC (approx. 0.8 V lower than supply voltage)
- Encoder supply Output current: Max. 250 mA, (galvanically connected with device supply)
- Sensor supply output voltage 2: 5 VDC
- Encoder supply Output current: Max. 500 mA, (galvanically connected with device supply)
- Sensor supply: Protective circuit: Short-circuit proof
- Sensor supply Connection type: Screw terminals, 1.5 mm², 9-pin
- Encoder supply Other options: A) External via a separate source b) Using the same source, which also supplies the distributor (10…30V)
- Incremental input signal level (switchable):
- RS422 / TTL (difference voltage > 0.5 V);HTL differential (difference voltage > 2 V)
- HTL (ASYMMETRICAL): LOW 0 … 6 V, HIGH 8 … 40 V.
- TTL (ASYMMETRIC): LOW < 0.8 V, HIGH >2.0 V.
- Incremental Input Tracks: Asymmetrical: A, B, Z or symmetrical: A, /A, B, /B, Z, /Z
- Incremental input frequency: Max. 1 MHz at RS422 / TTL; max. 500 kHz at HTL Differential; max. 250kHz at SE TTL / SE HTL
- Incremental input Connection type: Screw terminals, 1.5 mm² / AWG16
- Incremental outputs Number of outputs: 4
- Incremental outputs output logic: Push-pull
- Incremental outputs Signal level: 5 … 30 V (can be fed via respective ext. COM+ terminal)
- Incremental outputs Signal delay time: Approx. 160 ns
- Incremental outputs Output current: Max. 30 mA
- Incremental outputs Protection circuit: Short circuit proof
- Incremental outputs Connection type: Screw terminals, 1.5 mm² / AWG16
- Potential separation GT222 / GT224: Potential separation between input and outputs and all
- Potential separation GT228: Outputs among each other.
- Display elements Number of: 2 LEDs
- Display elements Function: 1 x green for operational readiness; 1 x yellow for error detection at inputs A, B, Z.
- Ambient temperature operation: -20 °C … +60 °C (non-condensing)
- Ambient temperature Storage: -30 °C … +75°C (non-condensing)
- MTBF failure rate in years (continuous operation at 60 °C): 102.0 a
- Product type
IO module
- Interfaces
Screw terminal
- Type
7184.5024
- Operating voltage
10 - 30 V DC
- Height
118 mm
- Length
140 mm
- Width
54 mm
- No. of digital inputs
1
- No. of digital outputs
4
- Dim
(L x W x H) 140 x 54 x 118 mm
- Manufacturer part #
7184.5024
Documents & Downloads
Datasheet
Datasheet 2899370 Motrona 7184.5024 IO module Screw terminal No. of digital outputs: 4 No. of digital inputs: 1
User & Safety Instructions
User & Safety Instructions 2899370 Motrona 7184.5024 IO module Screw terminal No. of digital outputs: 4 No. of digital inputs: 1
Description
This 4-way impulse distributor with potential separation is a very compact, space-saving and extremely versatile distributor for signals of incremental encoders and measurement systems. There is a potential separation between the input and output circuits and the output circuits. There is no galvanic separation between the input and the device supply. This is of particular advantage when pulse distribution is performed under very far-away plant components as well as in the case of unfavorable EMC conditions, potential shifts and poor grounding conditions within large plants.
This text is machine translated.
This text is machine translated.
Features
- Robust plastic casing for direct snapping onto DIN rails
Scope of delivery
- User manual
