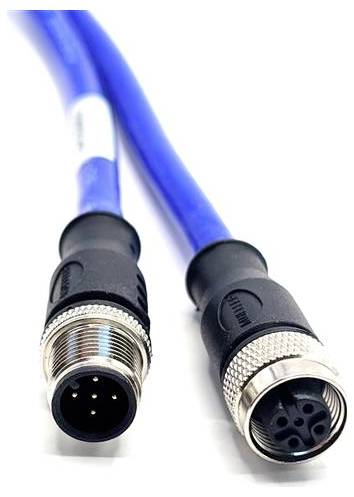

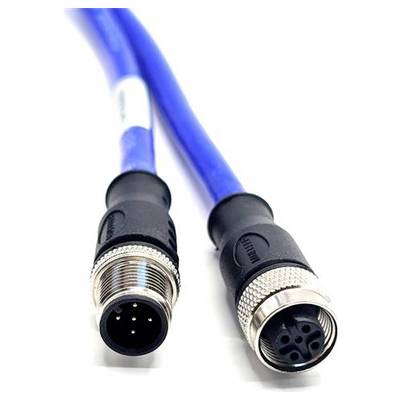

Mueller Electric C5AC82M005 Sensor/actuator connector M12 Plug, straight, Socket, straight 5 m No. of pins (RJ): 5 1 pc(
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Plug, straight
Socket, straight
Connector standard
Sensor connector
Connection side A
Plug, straight
Connection side B
Socket, straight
Datasheet (PDF)
Number
Total (€ 41.17 / piece)
€ 41.17
plus VAT.
Only 5 Piece(s) available
Highlights & Details
C5AC82M005 Mueller Blue-Flex™, M12 cable set, 5-pin, straight plug to straight socket, silicone, 5 m
- Mueller M12 Blue-FlexTM Cable - 4-wire, 22 AWG, unshielded, silicone outer sheath and inner conductor sheath for maximum flexibility
- 5-pin
- Straight plug on straight socket
- FT2 flame tester
Technical specifications
- Type
C5AC82M005
- Product type
Sensor/actuator connector
- Connector type
Plug, straight
Socket, straight
- Connector standard
Sensor connector
- Connection side A
Plug, straight
- Connection side B
Socket, straight
- No. of pins
5
- Cable length
5 m
- Nominal voltage
60 V DC/AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
M12 socket
M12 plug
- Factory colour
Blue
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Cable colour
Blue
- Coding
A
- Contact material
Brass gold plated
- Contact surface
Gold
- max. cross section
0.34 mm²
IP68
- Features
A-coded
- Min. temperature
-40 °C
- Max. temperature
150 °C
- Manufacturer part #
C5AC82M005
- Industrial packaging
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3527587 Mueller Electric C5AC82M005 Sensor/actuator connector M12 Plug, straight, Socket, straight 5 m No. of pins (RJ): 5 1 pc(
User & Safety Instructions
User & Safety Instructions 3527587 Mueller Electric C5AC82M005 Sensor/actuator connector M12 Plug, straight, Socket, straight 5 m No. of pins (RJ): 5 1 pc(
Description
Mueller Blue-Flex™, M12 cable set, straight plug to straight socket, 5-pin position, silicone-insulated leads, different lengths available. Bending strength 20 million cycles. Torsion strength 20 million cycles.
This text is machine translated.
This text is machine translated.
Scope of delivery
- C5AC82M005
