Name: Mueller Electric WI-M-10-100-0 Wire 1 x 5.26 mm² + 5.26 mm² Black 30.5 m
Brand: Mueller Electric
SKU: 3776108
Availability: BackOrder

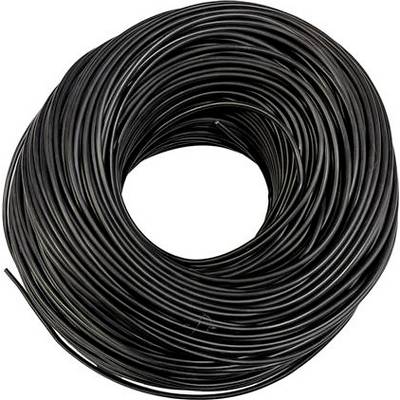

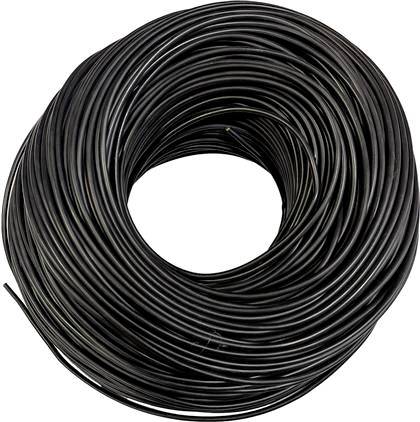

Coiled black cable or wire spool on a white background.

Product type

Wire

No. of leads

1 x

Cross section (each core)

5.26 mm²

Outside Ø

6 mm

Content

30.5 m

Datasheet (PDF)

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 12.66)

€ 385.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Premium silicone test lead 10 AWG (black) – 30.4 m coil

Particularly high load-carrying capacity 10 AWG
Silicone sheath test lead
Voltage – 1100 V.
Dielectric strength - 3.2 kV/min.
Spark test (Spark test) – 10 kV
Nominal temperature range - -40 °C to 180 °C.
Flame resistant according to FT2

Our service for you

Technical specifications

Pre-fabricated coil with fixed length

Product type: Wire

No. of leads: 1 x

Content: 30.5 m

Cross section (each core): 5.26 mm²

Insulation material: Silicone

Cross section (each core) (part 2): 5.26 mm²

Outside Ø: 6 mm

Nominal voltage: 600 V

AWG max.: 10

AWG (min.): 10

Packaged: Yes

Halogen-free: Yes

Manufacturer part #: WI-M-10-100-0

Factory colour: Black

Insulation: Silicone rubber (VMQ)

Core layout: Fine-wired strands

Core layout: 1064 Stränge

Material (details): Copper, tin-plated (conductor material)

Max. length sold by the metre: 30.4 m

Sold per metre: No

Nominal voltage U0: 600 V

Nominal current: 45 A

Certification marks: UL listed

Cross section: 1 x 5.26 mm² + 5.26 mm²

RoHS-compliant: Yes

Max. temperature range (flexible installation): 150 °C

Min. temperature range (flexible installation): -60 °C

Max. temperature range (fixed installation): 150 °C

Min. temperature range (fixed installation): -60 °C

Type: WI-M-10-100-0

Standards: UL758
Complies with ROHS3
Complies with REACH

Variants(All information include VAT, plus shipping costs)

Cross section (each core)

Content

Outside Ø

Core layout

Factory colour

Mueller Electric WI-M-10-100-0 Wire 1 x 5.26 mm² + 5.26 mm² Black 30.5 m

Item no:3776108

Available soon

Conrad Electronic

This article

5.26 mm²

30.5 m

6 mm

Fine-wired strands

Black

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 385.00^*

1 m = € 12.66

Mueller Electric WI-M-10-100-2 Wire 1 x 5.26 mm² Red 30.4 m

Item no:3776109

Available soon

Conrad Electronic

5.26 mm²

30.4 m

6 mm

Stranded wire

Red

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

1 m = € 11.02

Mueller Electric WI-M-10-50-0 Wire 1 x 5.26 mm² Black 15.2 m

Item no:3776110

Available soon

Conrad Electronic

5.26 mm²

15.2 m

6 mm

1-wire, flexibly stranded

Black

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

1 m = € 13.49

Mueller Electric WI-M-10-50-2 Wire 1 x 5.26 mm² Red 15.24 m

Item no:3776111

Available soon

Conrad Electronic

5.26 mm²

15.24 m

6 mm

1050 lines x 0.08 mm

Red

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

1 m = € 13.49

Mueller Electric WI-M-14-10-0 Wire 1 x 5.26 mm² Black 3 m

Item no:3776112

Fast track dispatch on Wed 4 Nov

2 Piece(s)Conrad Electronic

5.26 mm²

3 m

3.7 mm

Stranded wire

Black

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

1 m = € 10.33

Mueller Electric WI-M-14-10-2 Wire 1 x 2.5 mm² Red 3 m

Item no:3776115

Fast track dispatch on Wed 4 Nov

2 Piece(s)Conrad Electronic

2.5 mm²

3 m

4.7 mm

Stranded wire

Red

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

1 m = € 10.33

Mueller Electric WI-M-14-100-0 Wire 1 x 2.08 mm² Black 30.4 m

Item no:3776113

Available soon

Conrad Electronic

2.08 mm²

30.4 m

4.7 mm

Stranded wire

Black

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

1 m = € 6.74

Mueller Electric WI-M-14-100-2 Wire 1 x 2.08 mm² Red 30.4 m

Item no:3776114

Available soon

Conrad Electronic

2.08 mm²

30.4 m

4.7 mm

Stranded wire

Red

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

1 m = € 6.74

Mueller Electric WI-M-14-25-0 Wire 1 x 2.1 mm² Black 7.6 m

Item no:3776116

Available soon

Conrad Electronic

2.1 mm²

7.6 m

4.7 mm

Fine-wired strands

Black

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

1 m = € 10.26

Mueller Electric WI-M-14-25-2 Wire 1 x 2.5 mm² Red 7.6 m

Item no:3776117

Available soon

Conrad Electronic

2.5 mm²

7.6 m

4.7 mm

Braid (fine strands)

Red

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

1 m = € 10.26

Documents & Downloads

Datasheet

Datasheet 3776108 Mueller Electric WI-M-10-100-0 Wire 1 x 5.26 mm² + 5.26 mm² Black 30.5 m

User & Safety Instructions

User & Safety Instructions 3776108 Mueller Electric WI-M-10-100-0 Wire 1 x 5.26 mm² + 5.26 mm² Black 30.5 m

Description

Are you looking for maximum reliability in extreme conditions? Our high-capacity 10 AWG silicon test leads with their robust silicone sheath offer unsurpassed flexibility and highest security. With a dielectric strength of up to 1100 V and an extreme temperature range from -40 °C to 180 °C, this cable is the perfect choice for demanding measurement configurations, laboratory applications and industrial applications. Rely on tested quality for your projects!

This text is machine translated.
