Name: Mueller Electric WI-M-10-100-2 Wire 1 x 5.26 mm² Red 30.4 m
Brand: Mueller Electric
SKU: 3776109
Availability: BackOrder

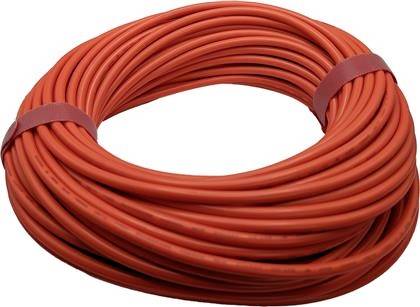

Coiled orange extension cord or cable bundled with two straps on a white background.

Product type

Wire

No. of leads

1 x

Cross section (each core)

5.26 mm²

Outside Ø

6 mm

Content

30.4 m

Datasheet (PDF)

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 11.02)

€ 335.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Premium silicone test lead 10 AWG (red) – 30.4 m coil for extreme loads

Extra high load-carrying capacity 10 AWG
Silicon jacket test lead
Voltage – 1100 V.
Dielectric strength - 3.2 kV/min.
Spark Test (Spark Test) – 10 kV
Nominal temperature - -40 °C to 180 °C.
Flame resistant according to FT2

Our service for you

Technical specifications

Pre-assembled coil with 100 feet / approx. 30.5 m.
Series: Coolflex 45;

Product type: Wire

No. of leads: 1 x

Content: 30.4 m

Cross section (each core): 5.26 mm²

Insulation material: Silicone

Cable features: Heat-resistant
highly flexible

Outside Ø: 6 mm

Nominal voltage: 600 V

AWG max.: 10

AWG (min.): 10

Packaged: Yes

Halogen-free: Yes

Manufacturer part #: WI-M-10-100-2

Factory colour: Red

Insulation: Silicon-rubber

Core layout: Stranded wire

Core layout: 1050 Stränge / 0,08 mm

Material (details): Copper tin-plated

Sold per metre: No

Nominal voltage U0: 600 V

Nominal current: 45 A

Cross section: 1 x 5.26 mm²

RoHS-compliant: Yes

Max. temperature range (flexible installation): 150 °C

Min. temperature range (flexible installation): -60 °C

Max. temperature range (fixed installation): 150 °C

Min. temperature range (fixed installation): -60 °C

Type: WI-M-10-100-2

Standards: UL758
RoHS compliant
REACH unaffected

Variants(All information include VAT, plus shipping costs)

Cable features

Content

Cross section (each core)

Outside Ø

Mueller Electric WI-M-10-100-2 Wire 1 x 5.26 mm² Red 30.4 m

Item no:3776109

Available soon

Conrad Electronic

This article

Heat-resistant

30.4 m

5.26 mm²

6 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

1 m = € 11.02

Mueller Electric WI-M-10-100-0 Wire 1 x 5.26 mm² + 5.26 mm² Black 30.5 m

Item no:3776108

Available soon

Conrad Electronic

30.5 m

5.26 mm²

6 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 385.00^*

1 m = € 12.66

Mueller Electric WI-M-10-50-0 Wire 1 x 5.26 mm² Black 15.2 m

Item no:3776110

Available soon

Conrad Electronic

highly flexible

15.2 m

5.26 mm²

6 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

1 m = € 13.49

Mueller Electric WI-M-10-50-2 Wire 1 x 5.26 mm² Red 15.24 m

Item no:3776111

Available soon

Conrad Electronic

Heat-resistant

15.24 m

5.26 mm²

6 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

1 m = € 13.49

Mueller Electric WI-M-14-10-0 Wire 1 x 5.26 mm² Black 3 m

Item no:3776112

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

Heat-resistant

3 m

5.26 mm²

3.7 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

1 m = € 10.33

Mueller Electric WI-M-14-10-2 Wire 1 x 2.5 mm² Red 3 m

Item no:3776115

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

highly flexible

3 m

2.5 mm²

4.7 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

1 m = € 10.33

Mueller Electric WI-M-14-100-0 Wire 1 x 2.08 mm² Black 30.4 m

Item no:3776113

Available soon

Conrad Electronic

highly flexible

30.4 m

2.08 mm²

4.7 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

1 m = € 6.74

Mueller Electric WI-M-14-100-2 Wire 1 x 2.08 mm² Red 30.4 m

Item no:3776114

Available soon

Conrad Electronic

Heat-resistant

30.4 m

2.08 mm²

4.7 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

1 m = € 6.74

Mueller Electric WI-M-14-25-0 Wire 1 x 2.1 mm² Black 7.6 m

Item no:3776116

Available soon

Conrad Electronic

highly flexible

7.6 m

2.1 mm²

4.7 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

1 m = € 10.26

Mueller Electric WI-M-14-25-2 Wire 1 x 2.5 mm² Red 7.6 m

Item no:3776117

Available soon

Conrad Electronic

highly flexible

7.6 m

2.5 mm²

4.7 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

1 m = € 10.26

Documents & Downloads

Datasheet

Datasheet 3776109 Mueller Electric WI-M-10-100-2 Wire 1 x 5.26 mm² Red 30.4 m

User & Safety Instructions

User & Safety Instructions 3776109 Mueller Electric WI-M-10-100-2 Wire 1 x 5.26 mm² Red 30.4 m

Description

Get maximum reliability for your most demanding projects. This extra high load-carrying 10 AWG silicon cable is convincing due to its extreme flexibility and excellent thermal resistance from -40 °C to 180 °C. With a dielectric strength of 1100 V and a flame-resistant FT2 silicone sheath, it is the perfect choice for professional test leads, laboratory applications and highly stressed electronic components. Robust, safe and durable - quality that you can rely on.

This text is machine translated.
