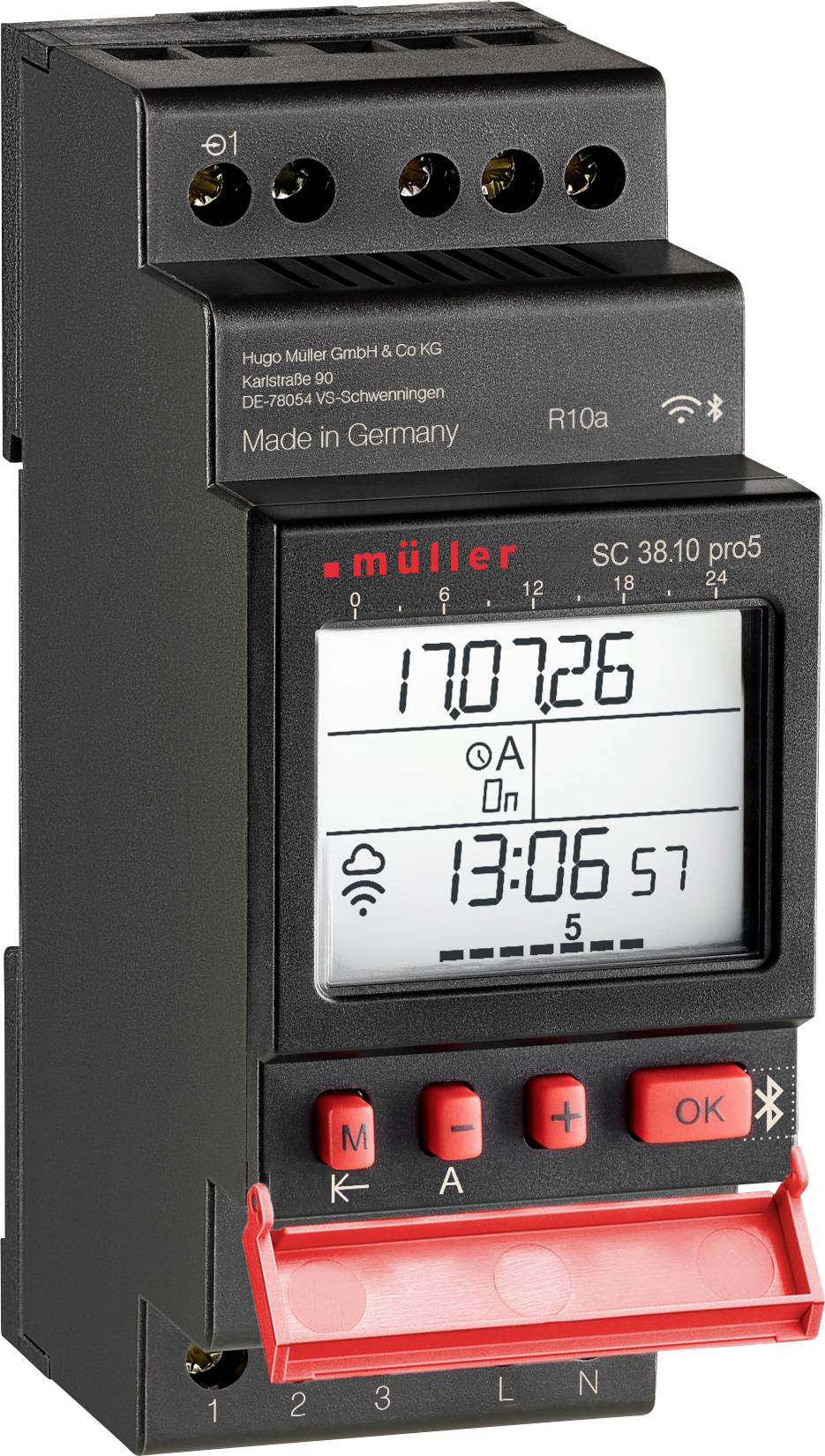

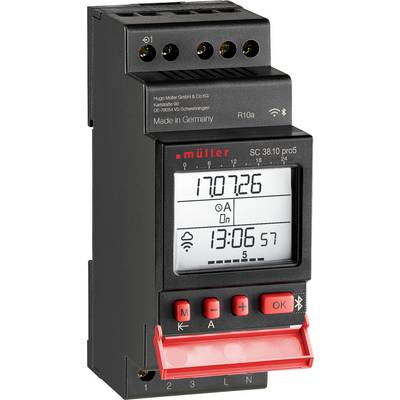

Müller SC 38.10 pro5 Timer digital 110 V AC, 230 V AC 600 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 104.99 / piece)
€ 104.99
incl. VAT
Only 1 Piece(s) available
Highlights & Details
Müller SC 38.10 pro5 110-230V 50-60Hz, digital timer switch week / Astro / year
- Programmable and controllable by smartphone via WLAN and Bluetooth (free iOS and Android APP) as well as directly on the timer through the integrated display
- Mobile access via cloud
- Supports multi-user access for shared programming and operation via the cloud
- The external input can be freely assigned to the switching channels
- Daily, weekly, Astro and yearly program
- Astro program with 3 functions: Standard, invert and pulse
- Annual program with 3 functions: Standard, Easter and year
- The quartz accuracy (at -30 to +55 °C) is less or equal to ±0.5 s/day
- Fast and intuitive programming
- Data security through non-volatile memory
Technical specifications
- Own consumption (effective power): Approx. 0.9 W in standby
- Permissible ambient temperature -30 °C to +55 °C.
- Housing material: Self-extinguishing thermoplastic
- Product type
Timer
- Operating voltage
110 V AC
230 V AC
- Channels
1-channel
- Type
digital
- Type
SC 38.10 pro5
- Manufacturer part #
24699
- Factory colour
Black
Red
- Dim
(L x W x H) 58 x 35 x 45 mm
- Memory slots
300
- Astro function
Yes
- Type
Programming and controllable via APP (WLAN & Bluetooth) as well as cloud link
- Output rating
600 W
- Display type
LCD
- Display backlighting
Yes
- External input
Yes
- Min. power reserve
10 years
- Impulse
Yes
- Width
35 mm
- Height
45 mm
- Length
58 mm
- Features
Daylight savings/sunup/sundown control
Power reserve
Impulse change-over
Progammable
- Switching cycle
24h mode
7 day mode
365 days mode
Daylight savings/sunup/sundown control
- Cycle
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3771295 Müller SC 38.10 pro5 Timer digital 110 V AC, 230 V AC 600 W
User & Safety Instructions
User & Safety Instructions 3771295 Müller SC 38.10 pro5 Timer digital 110 V AC, 230 V AC 600 W
Information
Information 3771295 Müller SC 38.10 pro5 Timer digital 110 V AC, 230 V AC 600 W
Description
Intelligent, flexible, future-proof. The Hugo Müller SC 38.10 pro5 digital premium timer is an all-in-one solution for anyone who doesn't want to compromise on lighting, ventilation or technical systems.
No matter whether industry, trade or demanding home – this multi-talent fits perfectly on your needs.
This text is machine translated.
No matter whether industry, trade or demanding home – this multi-talent fits perfectly on your needs.
This text is machine translated.
Features
- 1-channel
- Daily, weekly, Astro and yearly program
- 300 memory slots
- Built-in WLAN and Bluetooth
- Programming and controllable via APP (iOS and Android)
- 10 years power reserve
- Replaceable battery (CR1620)
- Zero-voltage switching
- Up to 600 W LED lamp load
- Switching capacity 16 A per channel
- Cycle and random function
- External input (switch or button)
- Timer
- Additional switch times ON, OFF, impulse and cycle on date and time
- Permanent switching according to date and time/vacation program
- Up to 10 special programs possible
- Manual permanent switching
- Manual switch pre-setting
- Automatische Sommerzeitumstellung
- Operating hours and switching pulse counter
- Easy to use
- Backlit display
- Security through PIN code
