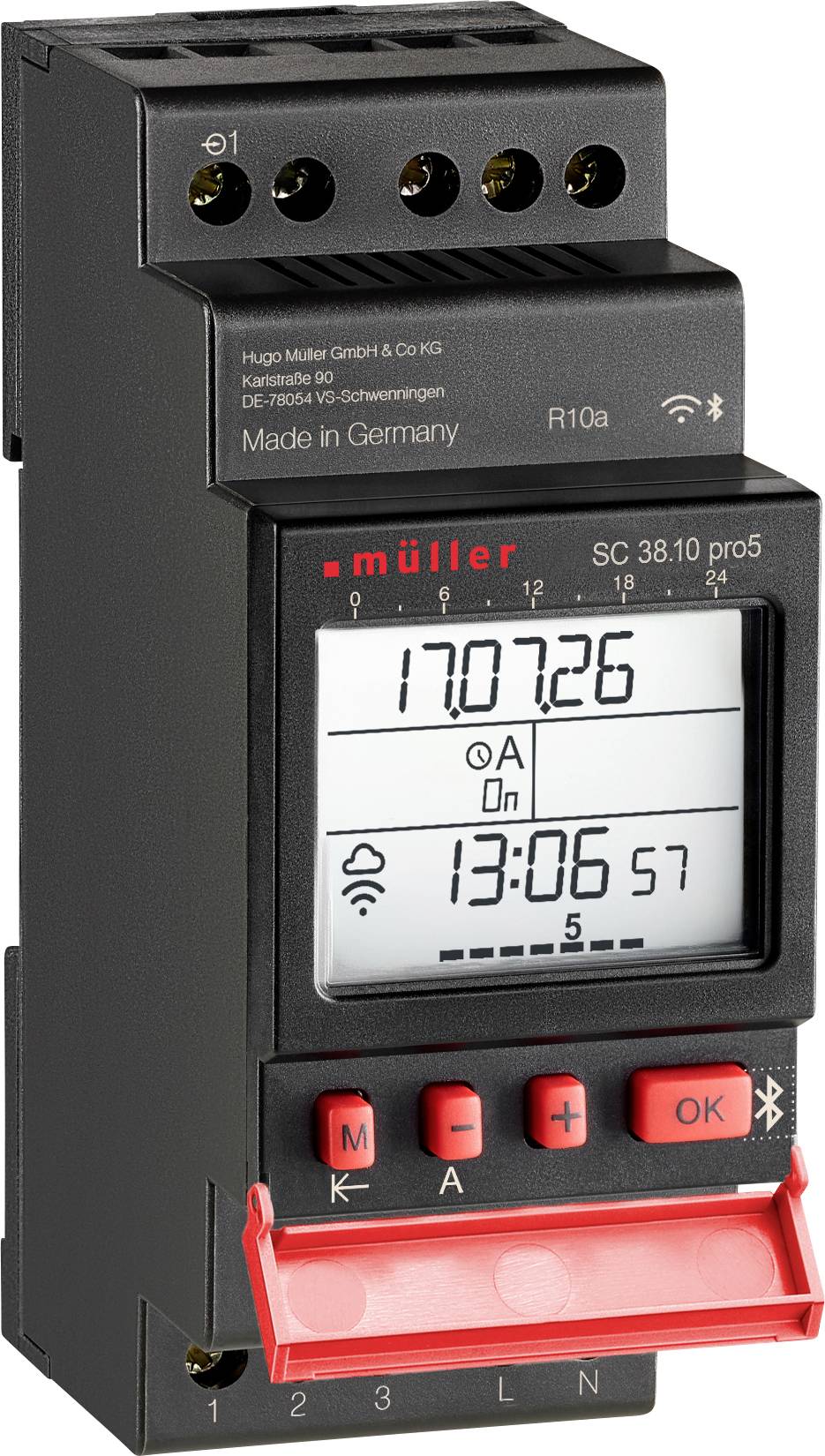

Buy Müller SC 38.10 pro5 Timer digital 12 V DC/AC, 24 V DC/AC 600 W

Digital electricity meter showing 170726 kWh, time 13:06:57, and a red control panel with M, -, +, and OK buttons.

Datasheet (PDF)

Fast track dispatch on Mon, 21 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

Only 1 Piece(s) available

14 days return policy included

Report legal concerns

Highlights & Details

Müller SC 38.10 pro5 12-24V ACDC, digital timer switch week / Astro / year

Programmable and controllable by smartphone via WLAN and Bluetooth (free iOS and Android APP) as well as directly on the timer through the integrated display
Mobile access via cloud
Supports multi-user access for shared programming and operation via the cloud
The external input can be freely assigned to the switching channels
Daily, weekly, Astro and yearly program
Astro program with 3 functions: Standard, invert and pulse
Annual program with 3 functions: Standard, Easter and year
The quartz accuracy (at -30 to +55 °C) is ±0.5 s/day
Fast and intuitive programming
Data security through non-volatile memory

Technical specifications

Own consumption (effective power): Approx. 0.9 W in standby
Permissible ambient temperature -30 °C to +55 °C.
Housing material: Self-extinguishing thermoplastic

Product type: Timer

Operating voltage: 12 V DC/AC
24 V DC/AC

Channels: 1-channel

Type: digital

Type: SC 38.10 pro5

Manufacturer part #: 24782

Factory colour: Black
Red

Dim: (L x W x H) 58 x 35 x 45 mm

Memory slots: 300

Astro function: Yes

Type: For distributor installation / DIN rail mounting (35 mm)

Output rating: 600 W

Data key: No

Display type: LCD

Display backlighting: Yes

External input: Yes

Min. power reserve: 10 years

Impulse: Yes

Width: 35 mm

Height: 45 mm

Length: 58 mm

Features: Progammable
Daylight savings/sunup/sundown control
Impulse change-over
External input

Switching cycle: 24h mode
Daylight savings/sunup/sundown control
7 day mode
365 days mode

Cycle: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3771296 Müller SC 38.10 pro5 Timer digital 12 V DC/AC, 24 V DC/AC 600 W

User & Safety Instructions

User & Safety Instructions 3771296 Müller SC 38.10 pro5 Timer digital 12 V DC/AC, 24 V DC/AC 600 W

Information

Information 3771296 Müller SC 38.10 pro5 Timer digital 12 V DC/AC, 24 V DC/AC 600 W

Description

Hugo Müller SC 38.10 pro5 - The smart all-in-one timer for professionals
Maximum flexibility meets intuitive operation: The Hugo Müller SC 38.10 pro5 is the ultimate solution for precise time control in private, commercial and industrial areas. Whether it's a classic weekly program, high-precision Astro function for location-dependent light control or complex annual appointments – this professional device copes with every challenge in a playful way. Thanks to the most modern programming via APP or data key and a reliable power reserve your control is absolutely future-proof and fail-safe at all times.

This text is machine translated.

Features

1-channel
Daily, weekly, Astro and yearly program
300 memory slots
Built-in WLAN and Bluetooth
Programming and controllable via APP (iOS and Android)
10 years power reserve
Replaceable battery (CR1620)
Zero-voltage switching
Up to 600 W LED lamp load
Switching capacity 16 A per channel
Cycle and random function
External input (switch or button)
Timer
Additional switch times ON, OFF, impulse and cycle on date and time
Permanent switching according to date and time/vacation program
Up to 10 special programs possible
Manual permanent switching
Manual switch pre-setting
Automatische Sommerzeitumstellung
Operating hours and switching pulse counter
Easy to use
Backlit display
Security through PIN code
