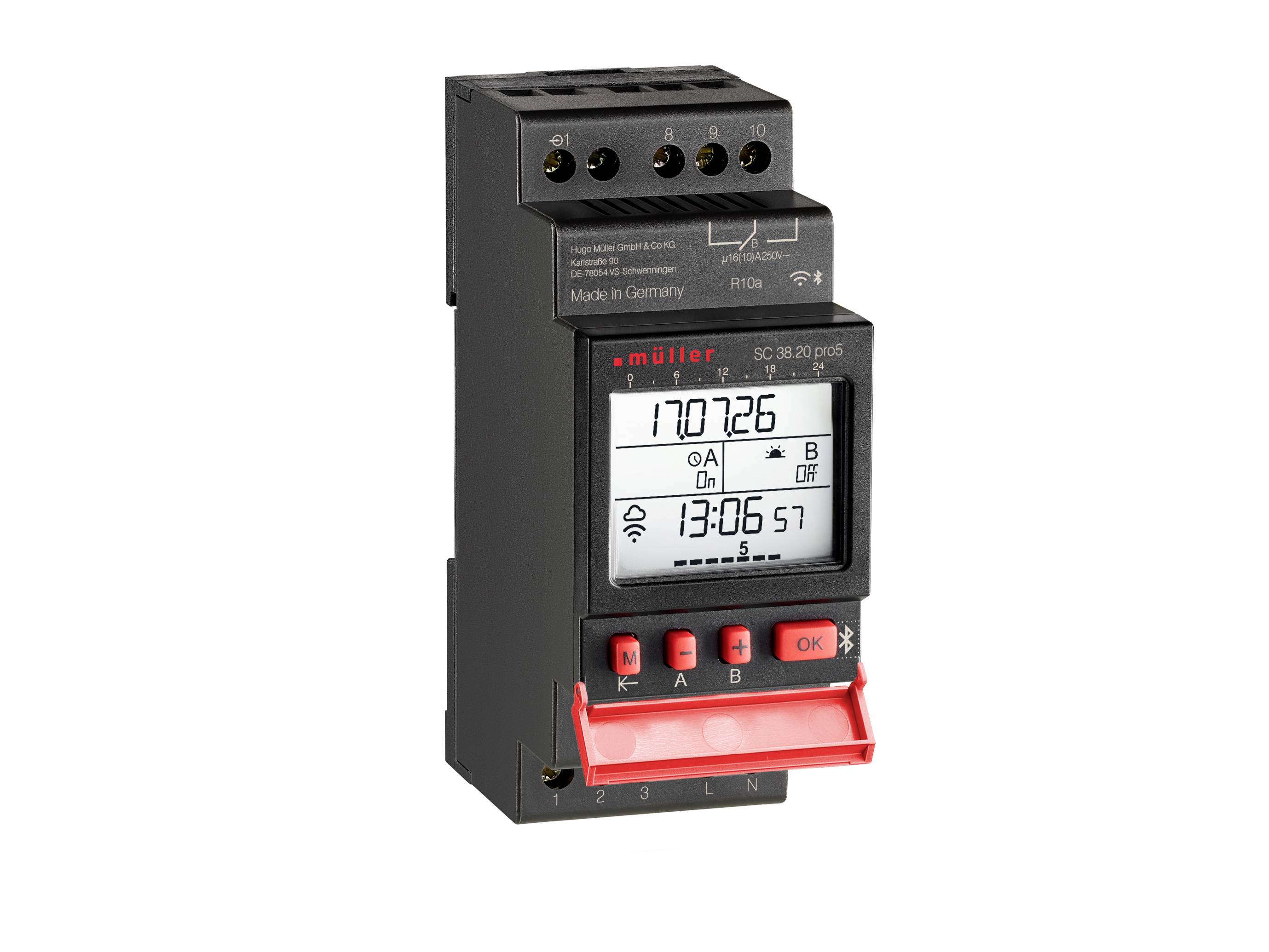

Müller SC 38.20 pro5 Timer digital 110 V AC, 230 V AC 600 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Müller SC 38.20 pro5, 110-230V 50-60Hz, digital timer switch week / Astro / year
- Programmable and controllable by smartphone via WLAN and Bluetooth (free iOS and Android APP) as well as directly on the timer through the integrated display
- Mobile access via cloud
- Supports multi-user access for shared programming and operation via the cloud
- The external input can be freely assigned to the switching channels
- Daily, weekly, Astro and yearly program
- Astro program with 3 functions: Standard, invert and pulse
- Annual program with 3 functions: Standard, Easter and year
- The quartz accuracy (at -30 to +55 °C) is ±0.5 s/day
- Fast and intuitive programming
- Data security through non-volatile memory
Technical specifications
- Own consumption (effective power): Approx. 0.9 W in standby
- Permissible ambient temperature -30 °C to +55 °C.
- Housing material: Self-extinguishing thermoplastic
- Product type
Timer
- Operating voltage
110 V AC
230 V AC
- Channels
2-channel
- Type
digital
- Type
SC 38.20 pro5
- Manufacturer part #
24783
- Factory colour
Black
Red
- Dim
(L x W x H) 58 x 35 x 45 mm
- Memory slots
300
- Astro function
Yes
- Type
Distributor installation for 35 mm DIN-rail (top hat rail), 2 TE
- Output rating
600 W
- Data key
No
- Display type
LCD
- Display backlighting
Yes
- External input
Yes
- Min. power reserve
10 years
- Impulse
Yes
- Width
35 mm
- Height
45 mm
- Length
58 mm
- Features
Power reserve
Impulse change-over
Daylight savings/sunup/sundown control
Progammable
Backlit display
- Switching cycle
24h mode
7 day mode
365 days mode
Daylight savings/sunup/sundown control
- Cycle
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3771297 Müller SC 38.20 pro5 Timer digital 110 V AC, 230 V AC 600 W
User & Safety Instructions
User & Safety Instructions 3771297 Müller SC 38.20 pro5 Timer digital 110 V AC, 230 V AC 600 W
Information
Information 3771297 Müller SC 38.20 pro5 Timer digital 110 V AC, 230 V AC 600 W
Description
Are you looking for a timer that doesn't make any compromises?
The Hugo Müller SC 38.20 pro5 combines the latest Smart home connectivity with absolute precision. Weekly, Astro or annual program – this multitalent is perfectly tuned to your needs thanks to cloud-connection, WLAN and Bluetooth.
Allows you to operate and program channels intuitively via APP by smartphone. With 300 memory locations, an impressive power reserve of 10 years and the integrated zero-voltage switching (Ideal for modern LED lamps), you are guaranteed a future-proof and durable solution for your control technology.
This text is machine translated.
The Hugo Müller SC 38.20 pro5 combines the latest Smart home connectivity with absolute precision. Weekly, Astro or annual program – this multitalent is perfectly tuned to your needs thanks to cloud-connection, WLAN and Bluetooth.
Allows you to operate and program channels intuitively via APP by smartphone. With 300 memory locations, an impressive power reserve of 10 years and the integrated zero-voltage switching (Ideal for modern LED lamps), you are guaranteed a future-proof and durable solution for your control technology.
This text is machine translated.
Features
- 2-channel
- Daily, weekly, Astro and yearly program
- 300 memory slots
- Built-in WLAN and Bluetooth
- Programming and controllable via APP (iOS and Android)
- 10 years power reserve
- Replaceable battery (CR1620)
- Zero-voltage switching
- Up to 600 W LED lamp load
- Switching capacity 16 A per channel
- Cycle and random function
- External input (switch or button)
- Timer
- Additional switch times ON, OFF, impulse and cycle on date and time
- Permanent switching according to date and time/vacation program
- Up to 10 special programs possible
- Manual permanent switching
- Manual switch pre-setting
- Automatische Sommerzeitumstellung
- Operating hours and switching pulse counter
- Easy to use
- Backlit display
- Security through PIN code
