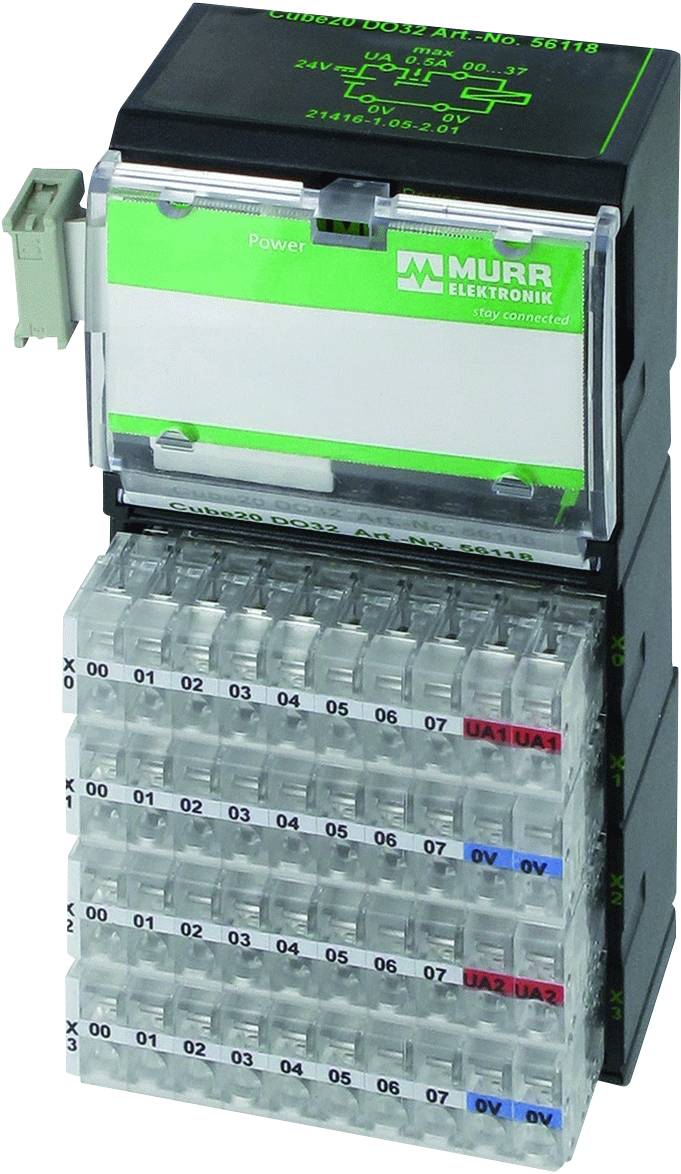

Electrical module from MURR Elektronik with multiple terminal rows, numbered from 01 to 08, for industrial applications.

Electrical module from MURR Elektronik with multiple terminal rows, numbered from 01 to 08, for industrial applications.

Image similar

Product type

GPO module

Type

56118

Operating voltage

24 V

Height

117 mm

Length

47 mm

Datasheet (PDF)

Murrelektronik

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 399.00 / piece)

€ 399.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Actuator supply UA: 24 V DC (EN 61131-2), max. 12 A
Diagnostics via BUS: Per module and channel
Fieldbus: Ribbon cable connection
Electrical isolation: 500 V DC between outputs and internal communication
I/O slots: 32× spring-loaded terminals, max. 2.5 mm²
Short circuit and overload: Yes
Lamp load 10 W
Switching current per output: Max. 0.5 A (short-circuit and overload-proof)
Protection class: IP20
Power consumption maximum 25 mA
Temperature range 0...+55 °C (storage temperature -20...+85 °C)
Monitoring - no voltage: no.
Monitoring - undervoltage: Yes
Supply module: Via system connection
Sensor system/actuator supply: 8× Spring-loaded terminals, max. 2.5 mm² (max. 12 A)

Product type: GPO module

Type: 56118

Operating voltage: 24 V

Height: 117 mm

Length: 47 mm

Width: 56 mm

No. of digital outputs: 32

Dim: (L x W x H) 47 x 56 x 117 mm

Control LEDs: Yes

Manufacturer part #: 56118

Fitting type (details): Can be snapped onto mounting rail

Status LEDs: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2312890 Murrelektronik 56118 56118 GPO module No. of digital outputs: 32

User & Safety Instructions

User & Safety Instructions 2312890 Murrelektronik 56118 56118 GPO module No. of digital outputs: 32
