Name: Murrelektronik 7005-17061-6641000 Sensor/actuator connector Socket, right angle 10.00 m No. of pins (RJ): 8 1 pc(s)
Brand: Murrelektronik
SKU: 2313646
Availability: BackOrder

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

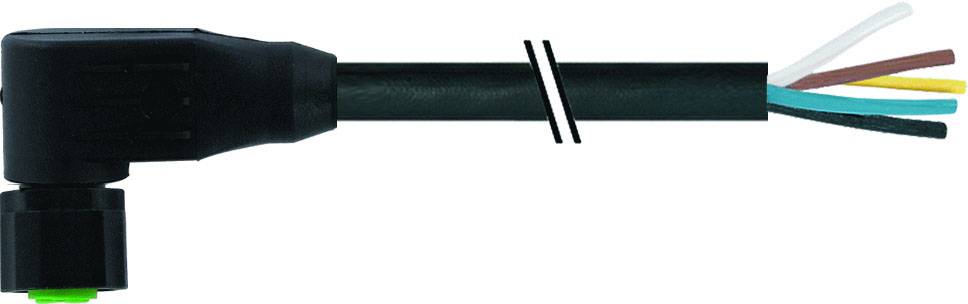

A black cable plug with four stripped conductors in the colours white, brown, green and yellow.

Image similar

Product type

Sensor/actuator connector

Connector type

Socket, right angle

Connection side A

M12 socket, right angle

Connection side B

Cable, open end

No. of pins

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 79.99 / piece)

€ 105.00

-24 %

€ 79.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

M12 BU 90° free cable end Lite PUR 8x0.34 sw UL/CSA+schnak. 10m

Our service for you

Technical specifications

Design: 17061
Core number/cross-section: 8× 0.34 mm²
Drag chain values: 5 Mio.
Wire insulation: PP (ws, br, gn, ge, gr, rs, bl, rt)
Bending radius (moving): 10× outer-Ø
Temperature range (flexible): -25...+80 °C.
Cable identification 664
Cable weight [g/m]: 64.90
Material (conductor): Plain copper braid
Resistance (conductor): Max. 60 Ω/km (20 °C)
Single wire Ø (conductor): 0.1 mm
Construction (conductor): 42× 0.1 mm (strand class 6)
AWG: Similar AWG 22
Material (core insulation): PP
Wire Ø incl. insulation: 1.45 mm ±5%
Wire color/numbering: br, ws, rt, bl, rs, gr, ge, gn
Verseilverbund: 8 cores stranded around core filler
Shielding: no.
Chemical resistance: Good oil, petrol and chemical resistance (VDE 0472 Part 803 Test B)
Thermal resistance: Flame-resistant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
Test voltage: 2000 V/AC
Bending radius (fixed): 5× outer-Ø
Number of bending cycles (drag chain): Max. 5 Mio (25 °C)
Travel path (drag chain): Max. 5 m (horizontal)
Travel speed (drag chain): Max. 3.3 m/s.
Acceleration (drag chain): Max. 5 m/s²
Dimensioning surge voltage: 0.8 kV
Locking the slots: Screw thread (M12×1 mm) recommended tightening torque 0.6 Nm, self-locking
Material (locking): PA
Pollution level 3

Type: 7005-17061-6641000

Product type: Sensor/actuator connector

Connector type: Socket, right angle

Connection side A: M12 socket, right angle

Connection side B: Cable, open end

No. of pins: 8

Cable length: 10.00 m

Jacket material: PUR

Nominal voltage: 600 V AC

Nominal current: 2 A

Nominal current - rounded value: 2 A

Outside Ø: 6.9 mm

Cross-section (sensor/actuator wiring): 0.34 mm²

Thread type (wiring and installation): M12

Cable colour: Black

Coding: A

: IP65
IP66K
IP67

Features: PUR jacket
A-coded

Min. temperature: -25 °C

Max. temperature: +85 °C

Manufacturer part #: 7005-17061-6641000

Content: 1 pc(s)

Cable Ø: 6.9 mm

RoHS-compliant: Yes
