Name: NETGEAR XSM4344C-100NES M4350-40X4C Network switch PoE
Brand: NETGEAR
SKU: 3773473

Rear view of a rackmount power distribution unit with multiple cooling fans, AC outlets, USB ports, and power connectors<br>

Rack-mounted NETGEAR network switch shown from the front-left, with multiple Ethernet ports, status LEDs, and cooling fans on a black chassis.

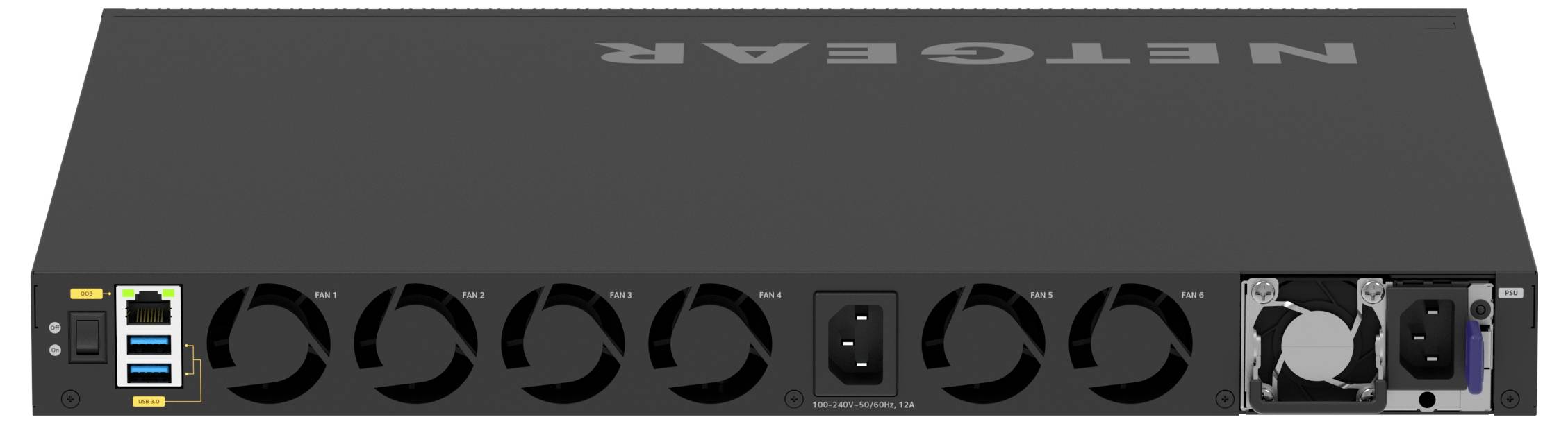

Back of a NETGEAR rackmount network switch with multiple Ethernet ports, fan openings, and power connectors.

Front view of a Netgear rackmount network switch with many Ethernet ports and status lights, plus two management/display modules on the right.

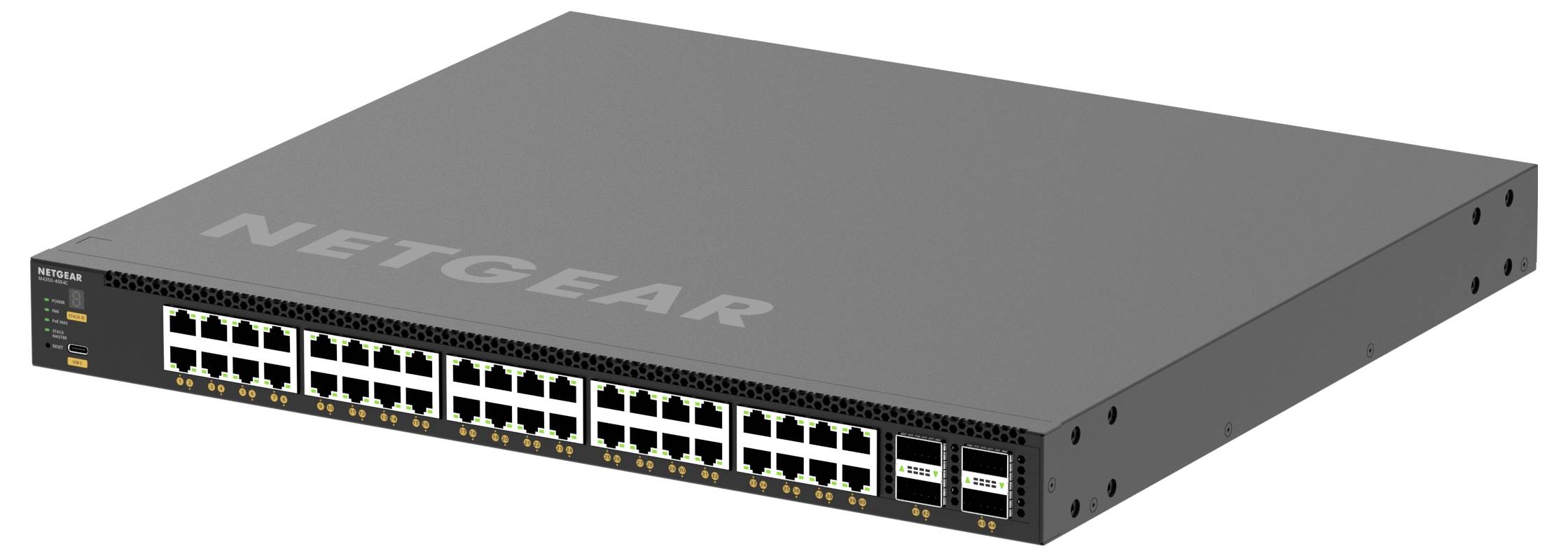

A NETGEAR network switch with multiple Ethernet ports on the front, shown in a gray rack-mountable case.

Front view of a NETGEAR rack-mounted network switch with many Ethernet ports and status indicator lights.

Front view of a NETGEAR network switch with multiple Ethernet ports and status lights, used for connecting wired devices in a network.

1/8

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR M4350-40X4C managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U black

40 10G/Multi-Gig PoE+ ports with 4 100GBase-X QSFP28 uplinks
750 W internal power supply with 196 W PoE-budget
1 Modular Power Slot (1+1 redundancy and/or EPS share)
The PoE budget can reach 1676 W, if the redundant PoE budget remains 196 W.
Virtual Chassis Stacking offers Non-Stop Forwarding (NSF) and Hitless Failover
Layer 3 feature set includes static, policy-based, and dynamic routing
NETGEAR IGMP Plus, AV user interface and Engage controller accelerate AV installations

Technical specifications

Form factor: 1U
DDR4 SDRAM
Energy source: AC

Product type: Network switch

Working principle: Managed switch

No. of 100 Mbps/1Gbps/10Gbps ports: 40 x

Jumbo frames: Yes

Router features: PoE

MAC addresses: 16000

Weight: 7.76 kg

Width: 440 mm

Height: 43.2 mm

Depth: 400 mm

Type: M4350-40X4C

Factory colour: Black

Power consumption (ON): 200.4 W

PSU power: 750 W

CPU speed: 1800 MHz

: 4096 MB

Processor/type: ARM Cortex-A57

UKCA: yes

Operating temperature (T-T): 0 - 45 °C

Power over Ethernet plus (PoE+) ports quantity: 40

Basic switching RJ-45 Ethernet ports quantity: 40

Total Power over Ethernet (PoE) budget: 1676 W

Packet buffer memory: 256 MB

Latency (10 Gbps): 2.71 µs

Throughput: 1190.4 Mpps

Storage relative humidity (H-H): 0 - 95 %

Non-operating altitude: 0 - 3000 m

Password protection: yes

Switching capacity: 1600 Gbit/s

Rack mount kit: yes

Loop protection: yes

BPDU filtering/protection: yes

ARP inspection: yes

Jumbo frames: 12000

Power over Ethernet (PoE) power per port: 90 W

Flow control support: yes

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Static port security: yes

GARP VLAN Registration Protocol (GVRP): yes

Access Control List (ACL) ingress: 511

Access Control List (ACL) egress: 1023

Policy-based routing: yes

IGMP proxy: yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

Rate limiting: yes

Quick start guide: yes

QSFP28 ports quantity: 4

IPv4 routes: 512

IPv6 routes: 256

10G Ethernet (copper) ports quantity: 40

Rack mounting: yes

Full duplex: yes

Flash memory: 512 MB

MAC address table: 16000 Eintragungen

IGMP snooping: yes

Number of VLANs: 4093

Spanning tree protocol: yes

Operating altitude: 0 - 3000 m

Operating relative humidity (H-H): 0 - 90 %

VLAN support: yes

DoS attack prevention: yes

10G support: yes

Storage temperature (T-T): -20 - 70 °C

Built-in processor: yes

Power consumption (max): 413 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773473 NETGEAR XSM4344C-100NES M4350-40X4C Network switch PoE

Description

IT M4350 Switch, developed and certified for Audio/Video over IP with special service and support. The M4350 offers all the simplicity of the M4250 AV line, packed in enterprise-class hardware with redundant power supplies and larger fabrics. The revolutionary NETGEAR AV user interface and the Engage Controller include pre-configured profiles for all major audio, video and lighting protocols.
