NetPeppers NP-FIBER41 WFM-50 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 1,936.97 / piece)
€ 1,936.97
plus VAT.
Technical specifications
- Resolution 1 μm
- Magnification 400 times
- Light source: Blue LED
- Viewing range of microscope: 0.349 mm - Y 0.283 mm
- Power supply: Via connected device (USB)
- Brightness adjustment: Yes
- Connections 1 x USB-C
- Type
WFM-50
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339545 NetPeppers NP-FIBER41 WFM-50 1 pc(s)
Description

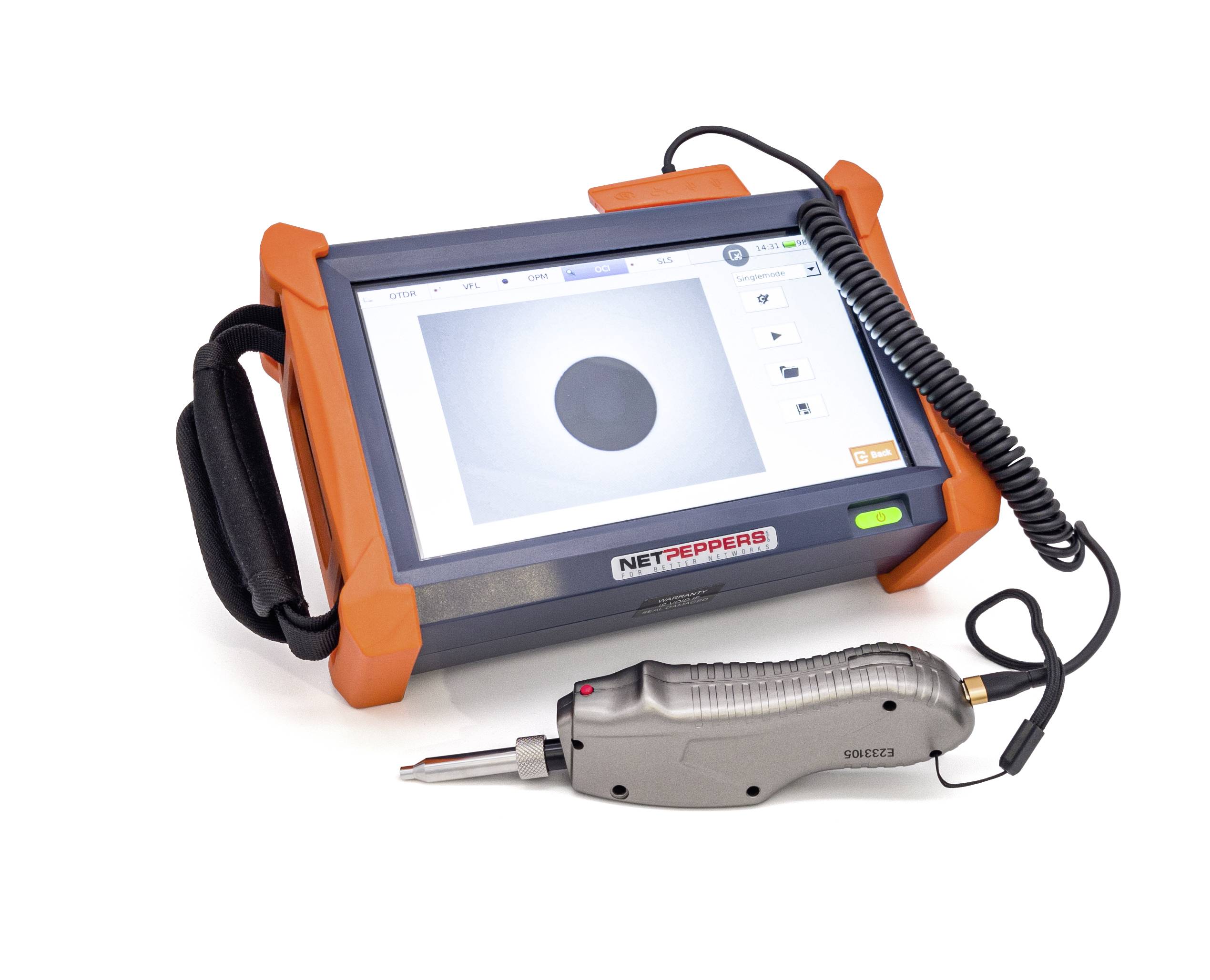

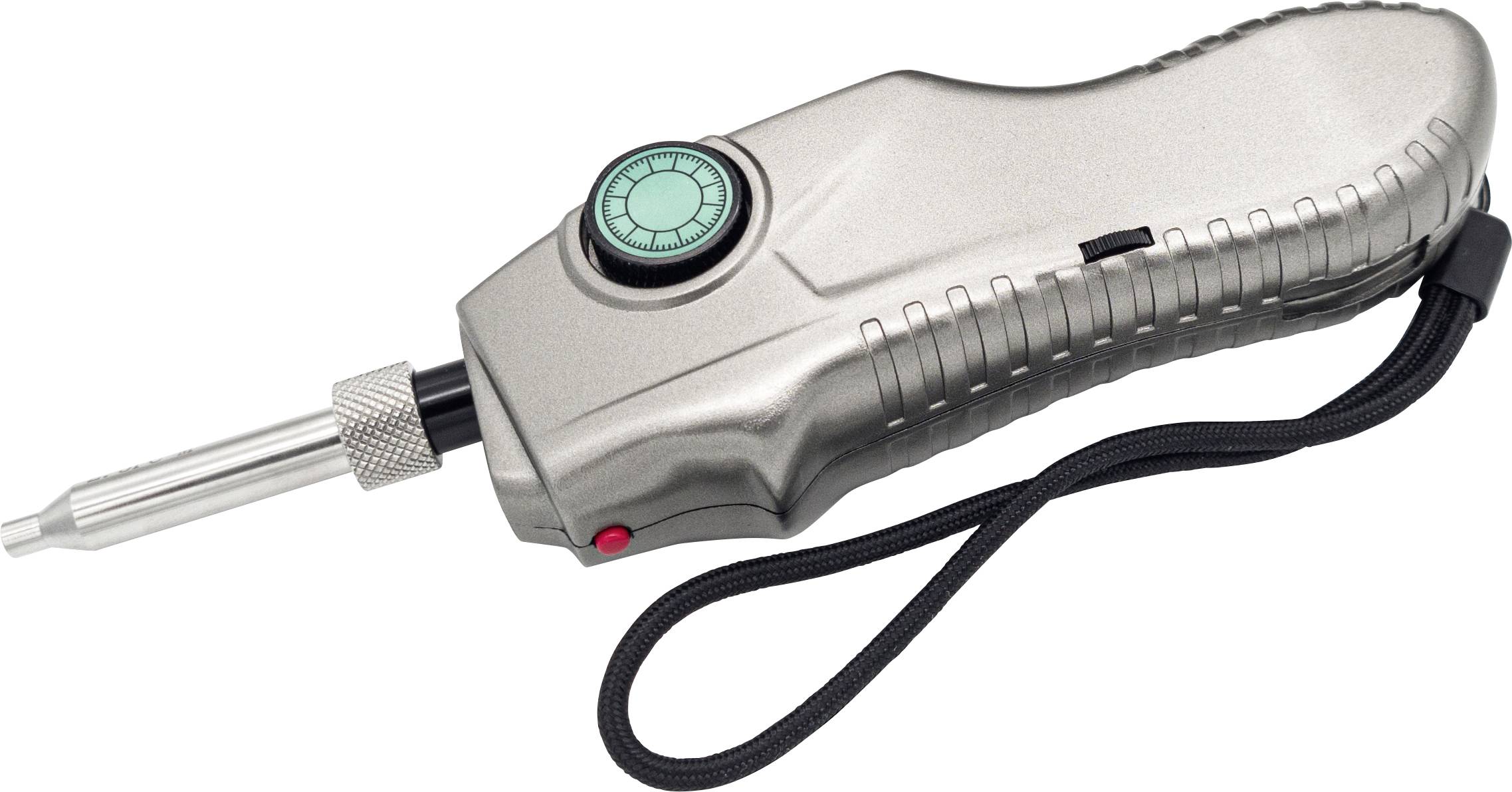

The NetPeppers WFM50 is a portable video microscope for connection to the OTDR1000. It checks the fiber connectors for dirt or scratches. It is the ideal test device for technicians and installers who are involved in the installation of LAN and FTTX fiber networks and want to provide proof of cleanliness of the installed system.
This text is machine translated.
This text is machine translated.
Features
- Simple documentation
- Digital, high-resolution image output for complete documentation of fiber-optic plug connections
- Wide range of uses
- 400-fold resolution of the fiber end surface. Suitable for all common glass fiber connectors: APC, UPC, MTP, etc.
- STREAMLINED WORKFLOW
- Direct connection via USB-C to the OTDR1000 and thus fully integrated in the test run

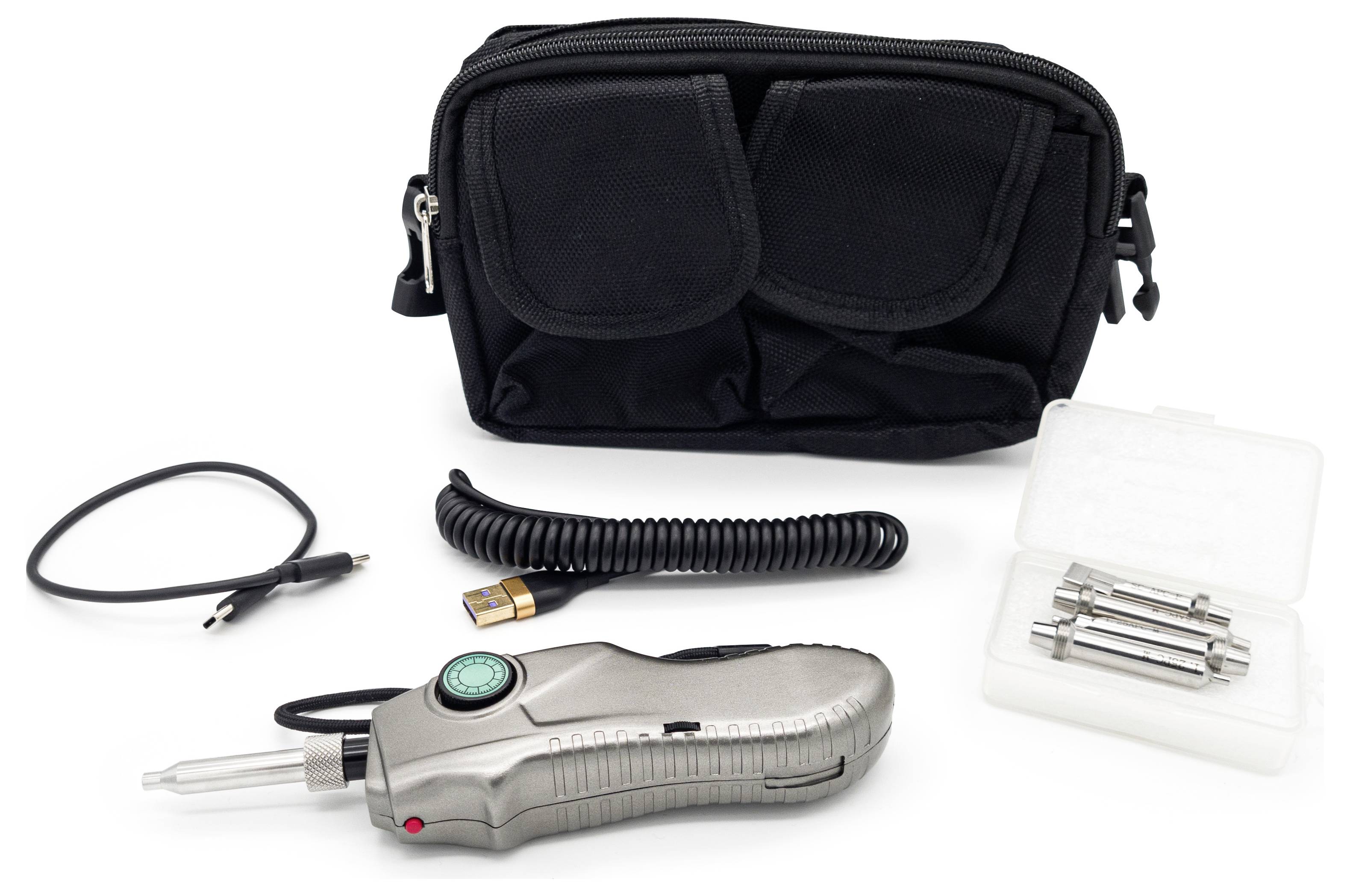

Scope of delivery
- 1x video microscope WFM-50
- 1x set test probes (1.25 mm UPC, 1.25 mm APC, 2.5 mm UPC, 2.5 mm APC, SC/APC)
- 1x cable USB-C to USB-A
- 1x cable USB-C to USB-C.
- 1x carry bag
