Omnitronic CM-5300 5-channel DJ mixer
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 489.00 / piece)
€ 489.00
incl. VAT
14-day return policy included
Highlights & Details
Professional 5-channel club mixer
- 5 stereo input channels including 3-band kill EQ
- 3 microphone input channels with combo socket on the front
- Single-button compressor and auto talkover for each of the microphone inputs
- Smooth-running double-rail fader (60 mm/100 mm)
- Rear stereo input FOH for stage mixers
- 2 independant stereo outputs (XLR)
- Additional zone output (mono) with switchable high pass filter
- Subwoofer output (mono) with integrated active crossover filter
- Adjustable effect send/return connection for external effect devices
- Rack mount, 7U
- This text is machine translated.
Technical specifications
- Power supply 115/230 V AC, 50/60 Hz
- Total connected wattage 25 W
- Inputs:
- MIC 1-3: Combination XLR/6.3 mm jack balanced
- LINE 1-5: PHONO L/R
- PHONO 1.2: PHONO L/R
- AUX: 3.5 mm stereo jack
- FOH: 6.3 mm jack balanced
- FX RETURN: 6.3 mm jack unbalanced

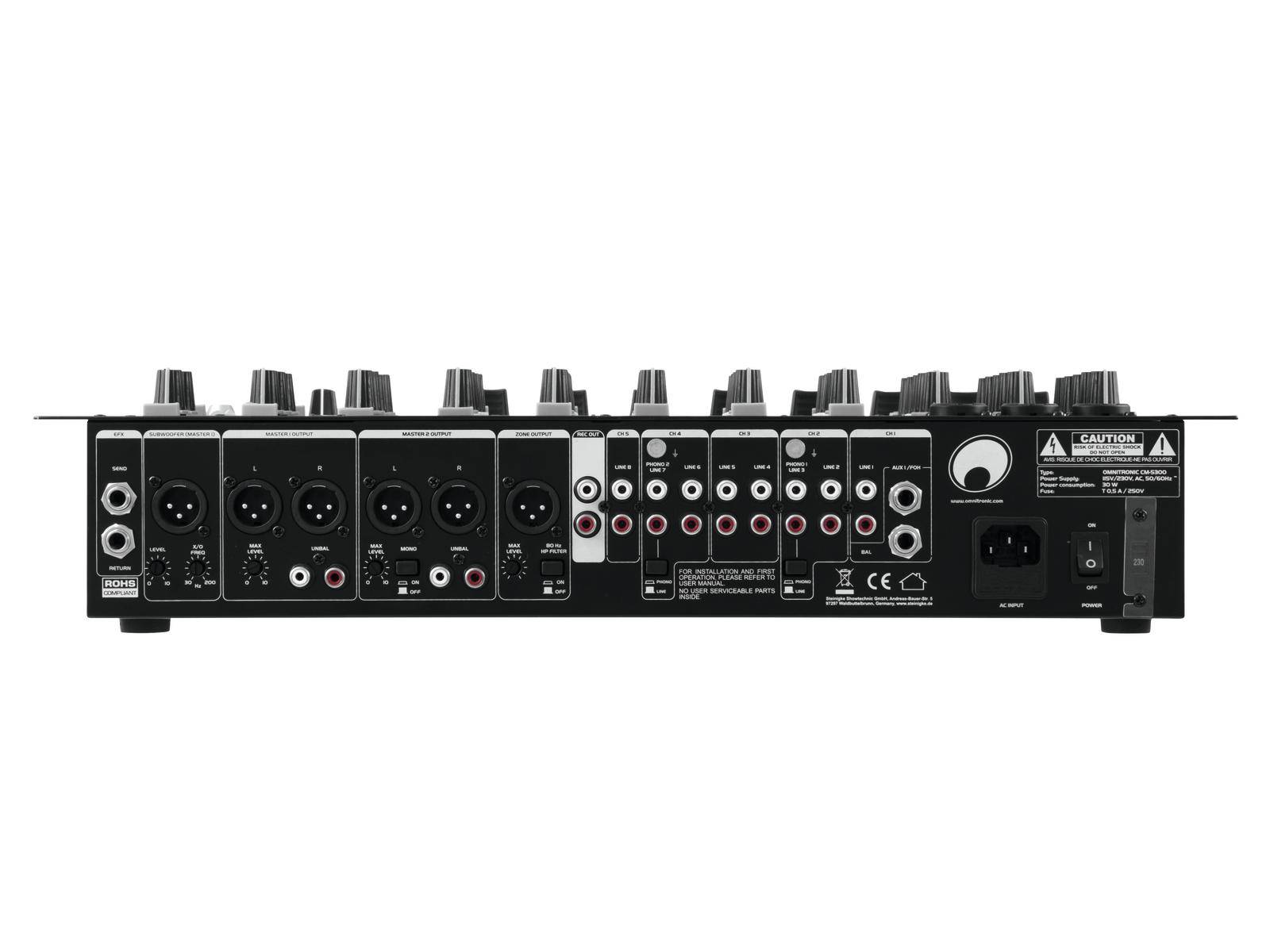

- Outputs:
- MASTER 1.2: XLR L/R BALANCED, RCA L/R.
- ZONE: XLR symmetric
- SUB: XLR symmetric
- REC: CINCH L/R
- FX SEND: 6.3 mm jack unbalanced
- PHONES: Jack unbalanced
- Frequency range 20 - 20,000 kHz
- Distortion: 0.05% (Line)
- 82> dB (Line) noise voltage spacing
- Dimensions (L x W x H): 383 x 483 x 106 mm (19", 7 HE)
- Weight 6 kg.
- Shipping weight: 8,00 kg
- No. of channels (details)
5
- Product type
DJ mixer
- Inputs
12
- Interfaces
XLR in
XLR out
6.3 mm jack out
6.3 mm jack in
Audio CD in
6.35 mm headphone out
- Dim
(W x H x D) 483 x 106 x 383 mm
- Installable
Yes
- Weight
6 kg
- Principle
5-channel
- Width
483 mm
- Height
106 mm
- Depth
383 mm
- No. of line-ins
8 x
- No. of microphone XLR inputs
3 x
- No of. XLR outputs
6 x
Documents & Downloads
Datasheet
Datasheet 1529890 Omnitronic CM-5300 5-channel DJ mixer
User & Safety Instructions
User & Safety Instructions 1529890 Omnitronic CM-5300 5-channel DJ mixer
Description
Features
- High-quality stereo mixer for use as a central mixer in clubs and a variety of mobile applications
- 5 stereo input channels with gain controller, 3-band kill EQ (+12/-26dB) and 10-digit LED level display
- Front-sided aux input
- Rear-side stereo input FOH for stage mixers
- Smooth double-track faders in the inputs, 60 mm or 100 mm
- 3 microphone input channels with front-side combo socket
- Gain controller with peak LED, 3-band EQ and on-air switch in the microphone inputs
- One-button compressor for each of the microphone inputs
- 2-way adjustable talkover function for automatic lowering of the music when discussing the microphone
- Assignable, smooth-running double-rail crossfader (45 mm) Between the stereo inputs
- Output section with two independant stereo outputs, output 2 can be switched to mono

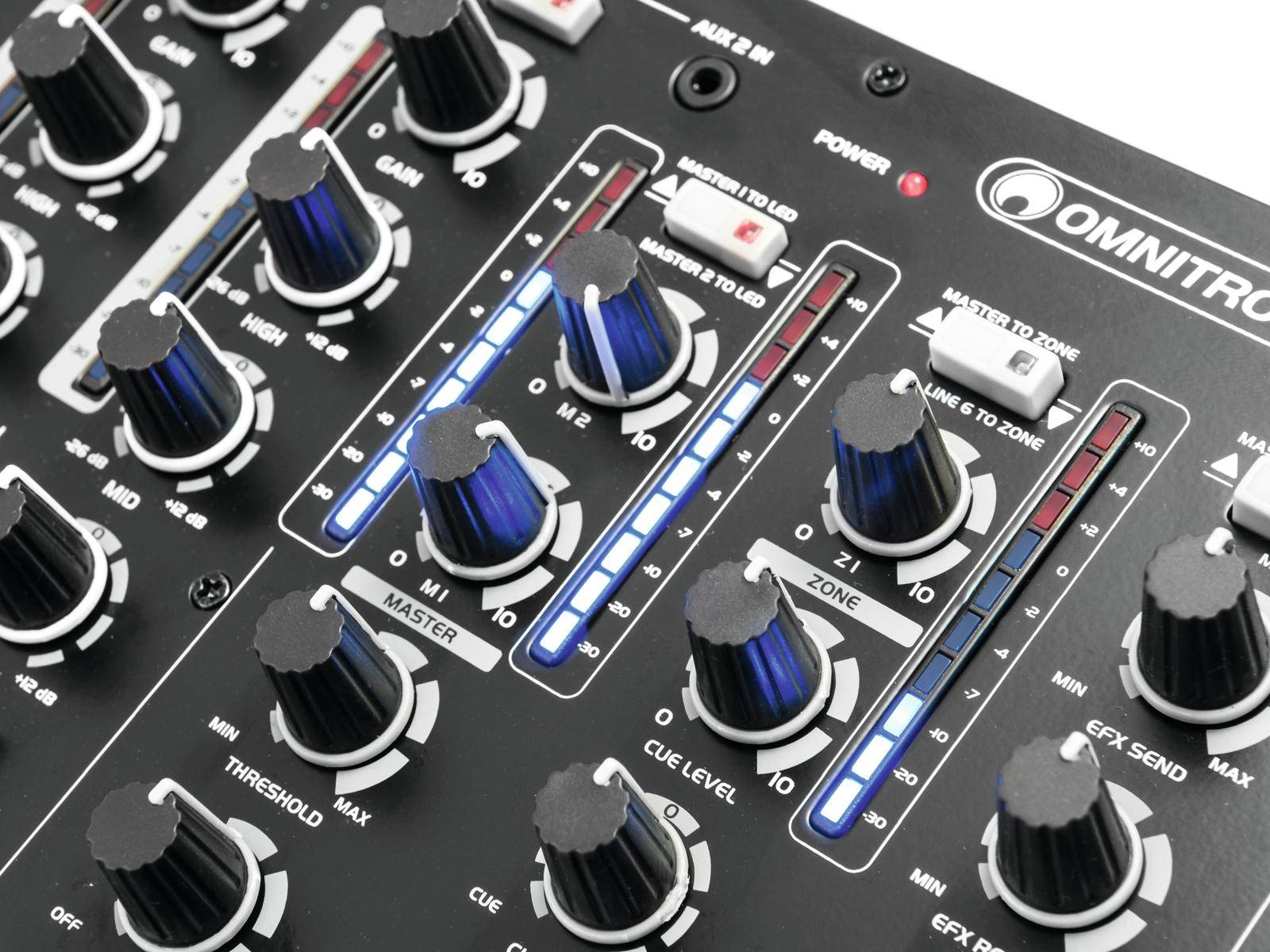

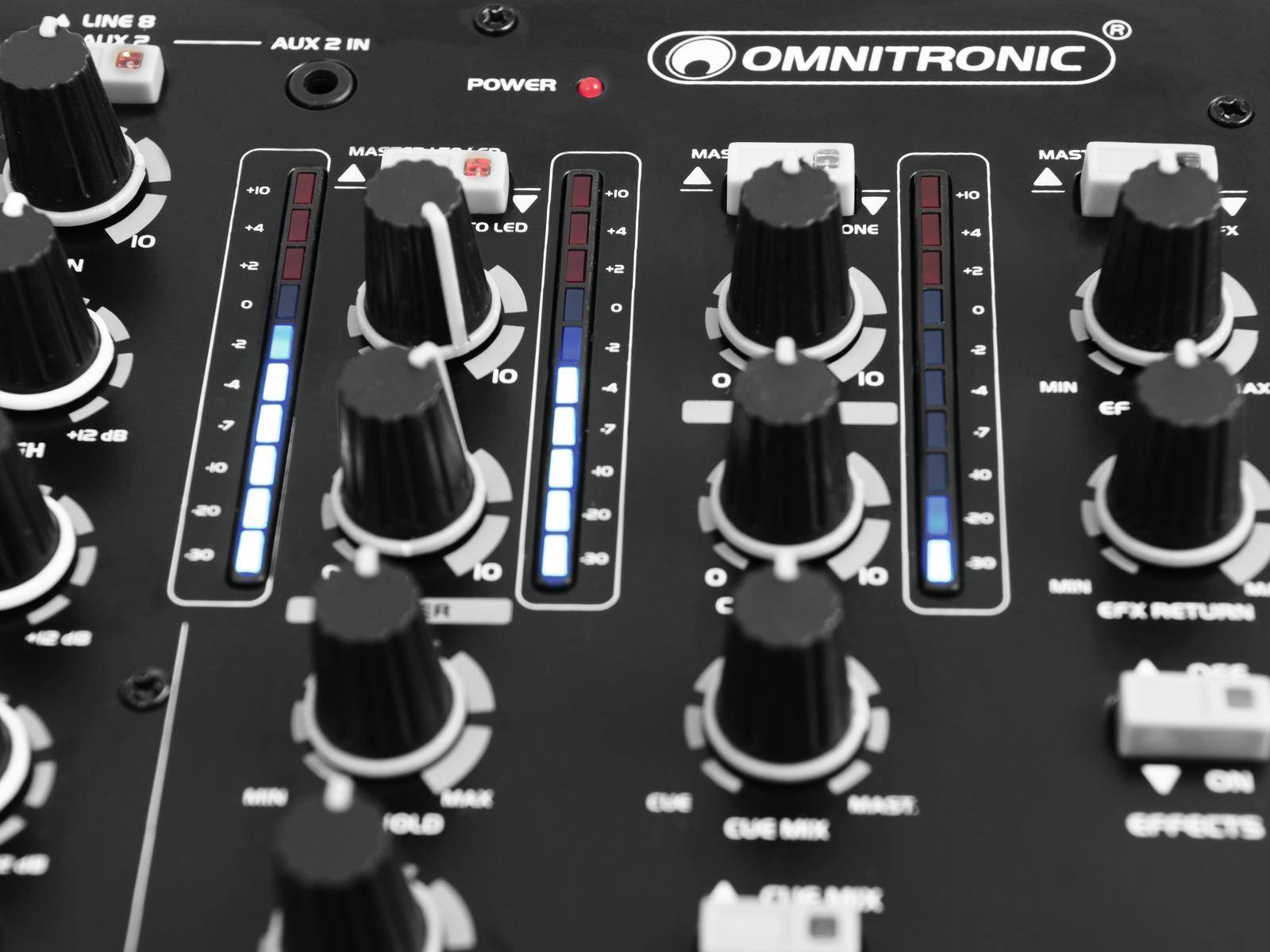

- 10-digit stereo LED level display, can be switched between the two outputs
- symmetric XLR outputs and cinch sockets
- additional zone output (mono) with switchable high-pass filter, Switchable between master signal and channel 5
- 10-digit LED level display for the zone output
- Subwoofer output (mono) with integrated active crossover filter (adjustable crossover frequency and level)
- Rear level adjuster for maximum output level in each of the outputs
- Controllable effect send/return connection for external effect devices, can be assigned to microphone or master signal
- PFL section with volume control, PFL-/Main-balance control and cue-mix/split-function
- Record-output, master-independant
- Rack installation, 7 HE
