Name: Omnitronic LH-042 Audio stereo line converter
Brand: Omnitronic
SKU: 313381
Availability: InStock

Small grey audio converter labelled 'LH-042' with multiple audio ports on the front panel, suitable for phono connections.

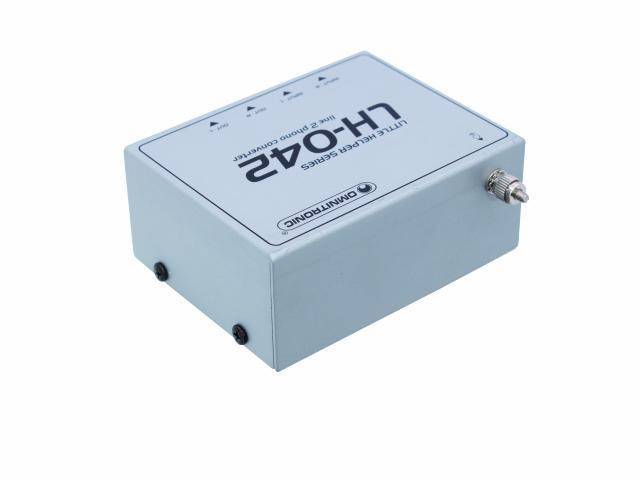

A rectangular, grey electronic device with the inscription 'LHO4-2' and a connection on the right-hand side.

1/2

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

30 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 30.99 / piece)

€ 30.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Omnitronic LH-007 Line/Phono Converter

Passive stereo line/phono converter

Technical specifications

Nominal input level: 500 mV
Nominal Output level: 2.5 mV
Input impedance:> 10 kOhm
Output impedance: 470 Ohms
Level reduction: -46 dB/1 kHz
Frequency response: 10 Hz - 20 kHz ±1 dB
Frequency characteristics: passive inverse riaa
Noise distance:> 100 dB
Phono input compatibility: moving magnet (MM), moving coil (MC)
Dimensions: 98 x 92 x 40 mm
Weight: 300 g

Product type: Audio stereo line converter

: n.rel.

Dim: (L x W x H) 98 mm x 23 cm x 8 cm

Weight: 400 g

Width: 23 cm

Height: 8 cm

Length: 98 mm

Depth: 13.5 cm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 313381 Omnitronic LH-042 Audio stereo line converter

Description

Passive stereo line/phono converter · Converts a line level signal into a phono signal · Connect line sources, such as CD, MP3, DVD, or PC to the magnetic phono input of a mixing desk, amplifier or recording device to · Input and output via the stereo cinch connection · Ground terminal to avoid ground loops · No power supply via mains adapter or batteries required
