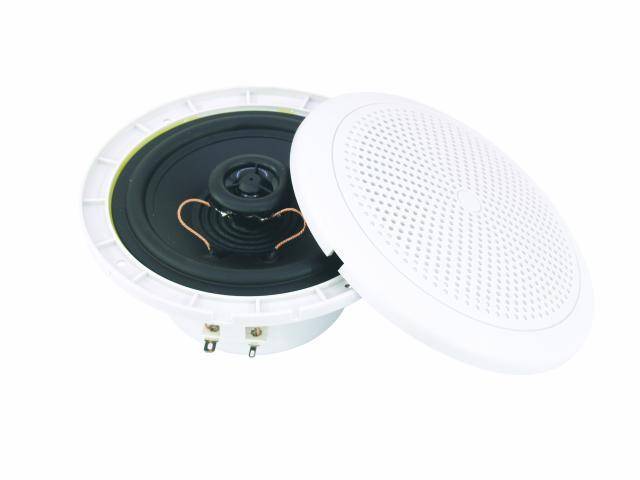

Omnitronic WF-5 Flush mount speaker 45 W 8 Ω White 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Highlights & Details
Omnitronic WF-5-mounted loudspeaker
- Speaker Units
Technical specifications
- Nominal load capacity: 25 W RMS
- Load-carrying capacity: 45 W
- Components: 13 cm woofer (5), 2.5 cm (1") tweeter
- Connections: 2-pin. Terminal
- Sensitivity 90 dB, ± 3 dB (1 W, 1 m)
- Impedance: 8 Ohm
- Frequency range 95 Hz - 20 kHz

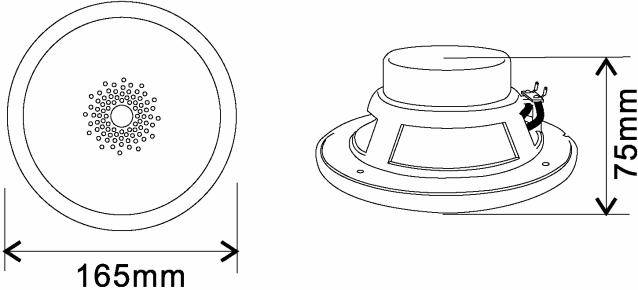

- Dimensions (HXWXD): 165 x 165 x 75 mm
- Installation cut-out: 140 mm dia.
- Cutout depth: 60 mm
- Weighs 0.7 kg.
- Product type
Flush mount speaker
- RMS capacity
25 W
- Max. load
45 W
- Power levels
45 W
- Impedance
8 Ω
- Max. sound pressure
90 dB
- Features
2-way
sprayproof
IP44
- Type
Round
- Factory colour
White
- Material
Plastic
- Recess diameter
14 cm
- Width
165 mm
- Height
165 mm
- Depth
75 mm
- (Ø)
16.5 cm
- Weight
700 g
- External width
165 mm
- Dim
(Ø x H) 16.5 cm x 165 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313264 Omnitronic WF-5 Flush mount speaker 45 W 8 Ω White 1 pc(s)
Description
Speaker Units · 2-way system with 13 cm (5") woofer and 2.5 cm tweeter (1") · 8-Ohm-Lautsprechersystem · Splash-proof design (IP44) for outdoor use · White plastic housing · For public address system in exterior and interior
