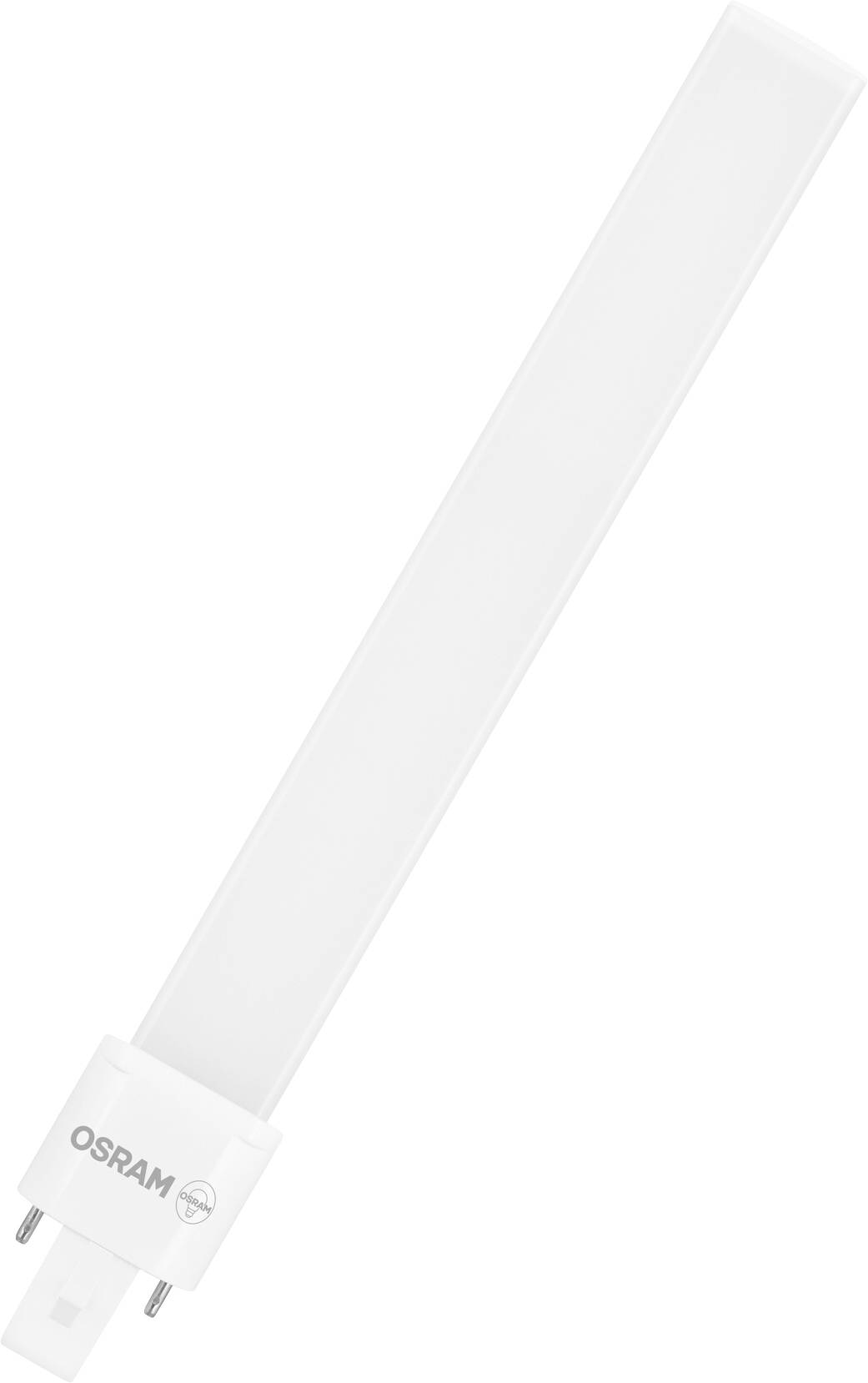

OSRAM HOMELIGHTING 4099854502514 LED tube EEC E (A - G) G23 Tube shape 6 W Daylight white (Ø) 32.5 mm 1 pc(s)

1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct

14 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 11.99 / piece)
€ 11.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

OSRAM HOMELIGHTING 4099854502514 LED tube G23 6 W Daylight white Tube shape

  • Power= 6 W
  • Total luminous flux= 700 lm
  • Daylight white

Technical specifications

Product type

LED tube

G23

6 W

700 lm

Factory colour

White

Tube shape

Colour

Daylight white

Colour temperature range

6500 K (max)

Circuits

200000

Operating voltage

220 V

240 V

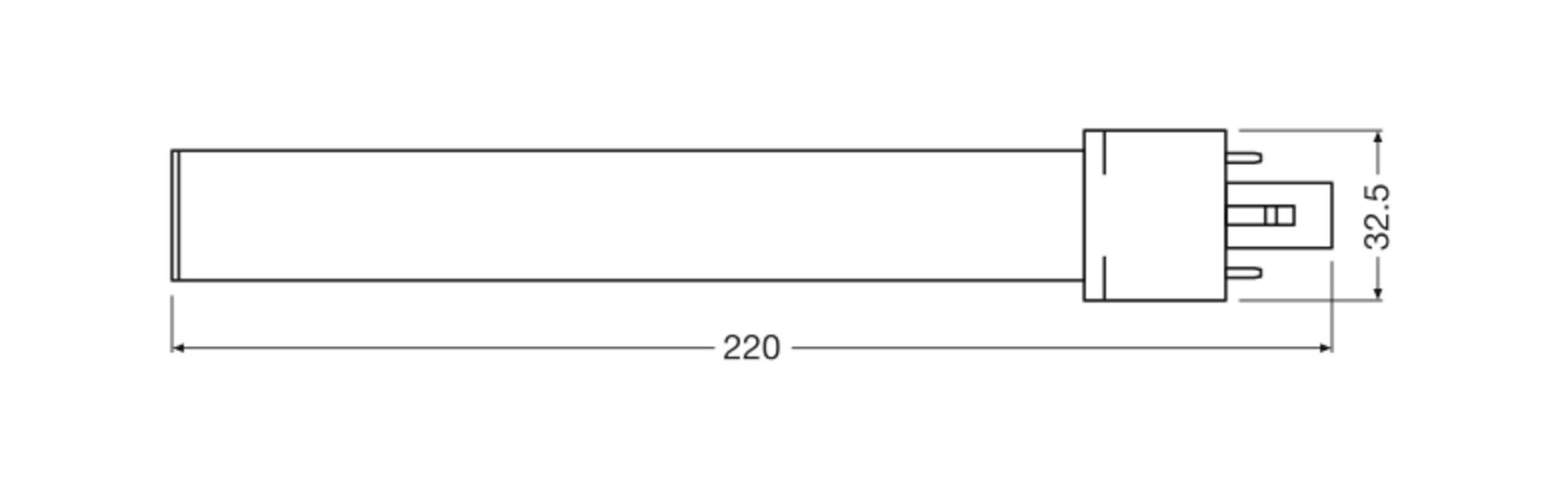

(Ø)

32.5 mm

Content

1 pc(s)

E (A - G)

Dim

(Ø) 32.5 mm

Operated via

CB

Power range

5 W - 7.4 W

Colour temperature (max.)

6500 K

Total luminous flux

700 lm

Material

Plastic

UKCA

yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3438030 OSRAM HOMELIGHTING 4099854502514 LED tube EEC E (A - G) G23 Tube shape 6 W Daylight white (Ø) 32.5 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3438030 OSRAM HOMELIGHTING 4099854502514 LED tube EEC E (A - G) G23 Tube shape 6 W Daylight white (Ø) 32.5 mm 1 pc(s)

Warranty Terms

Warranty Terms 3438030 OSRAM HOMELIGHTING 4099854502514 LED tube EEC E (A - G) G23 Tube shape 6 W Daylight white (Ø) 32.5 mm 1 pc(s)

Description

LED replacement for short KLLni with 2-pole G23 plug base for use on KVG/VVG LED replacement for conventional compact fluorescent lamps in conventional ballast lights or mains voltage. Life up to 30,000 h. One side 2-pin receptacle G23. Protection class: IP20 Mercury-free lamps Product benefits: Easy installation. Low power consumption Easy lamp change thanks to compact design. Operation directly at 230 V mains voltage possible. Areas of application: Supermarkets and department stores. Hallways and hallways. Hotels, restaurants. Safety instructions: Suitable for tandem operation. The operating temperature range of the DULUX LED is limited. If you are in doubt about the suitability of the application, please measure the TC temperature on the product before installation. All electrical connections must be made by qualified personnel only. Not suitable for emergency lighting. Do not touch the lamp if it is damaged. Operation with defective external piston not permitted.

This text is machine translated.

Features

  • Product advantages
  • Easy to set up
  • Low energy consumption
  • Easy lamp change thanks to compact design
  • Operation directly at 230 V mains voltage possible product features
  • LED replacement for conventional compact fluorescent lamps in conventional ballast lights or from mains voltage
  • Lifecycle up to 30,000 hrs
  • On-side 2-pin plug base G23
  • Protection class: IP20
  • Mercury-free lamps for application
  • Supermarkets and department stores
  • Hallways and hallways
  • Hotels, restaurants

Hints

Suitable for tandem operation.,The operating temperature range of the DULUX LED is limited. If you are in doubt as to the suitability of the application, please measure the TC temperature of the product before installation.,All electrical connections must only be carried out by qualified personnel.,Not suitable for emergency lighting.,Do not touch the lamp if it is damaged.,Do not use with defective external piston.
