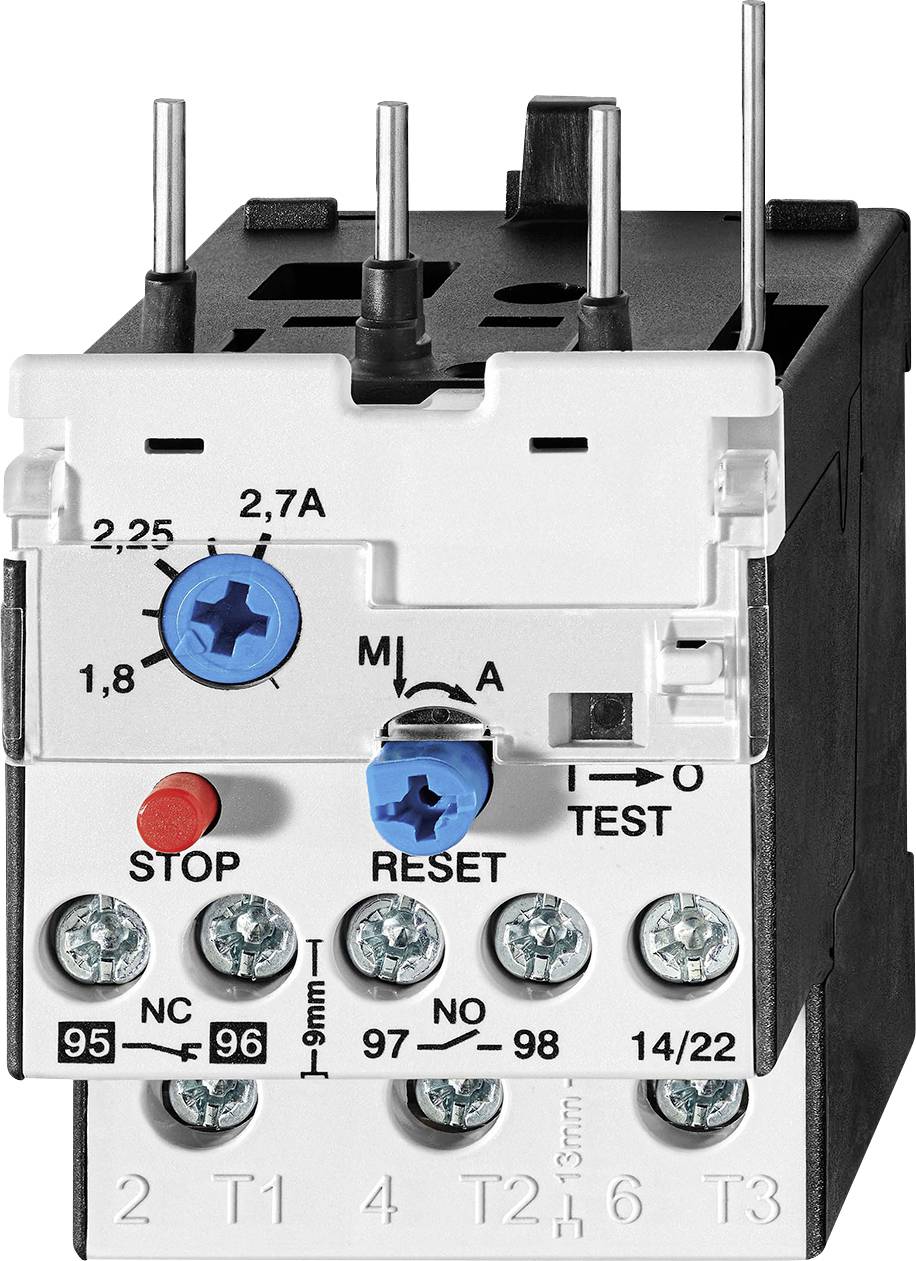

Overload relay 690 V (max) 1 maker, 1 breaker Finder 6K.T1.0.000.1827 1 pc(s)
EAN:
Part number:
Item no:
Product type
Overload relay
Max. operating voltage
690 V
Contact type
1 maker
1 breaker
Type
6K.T1.0.000.1827
Operating voltage
690 V (max)
Datasheet (PDF)
Number
Total (€ 40.67 / piece)
€ 40.67
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Motor protection relay for 6K.13 and 6K.14
- Feedback contact 1 NO contact + 1 NC contact Setting range: 1.8…2.7 A.
- Stop key
- Manual/automatic reset and reset button contact material AgNi
- Nominal isolation voltage 690 V
- Trigger class according to IEC 947-4-1_ 10 A cage terminals
- Protection: IP 20
Technical specifications
- Product type
Overload relay
- Type
6K.T1.0.000.1827
- Max. operating voltage
690 V
- Operating voltage
690 V (max)
- Amperage adjustment range (min.)
1.8 A
- Amperage adjustment range (max.)
2.7 A
- Adjustment range (amperage)
1.8 - 2.7 A
- Contact type
1 maker
1 breaker
- Contact material
AgNi
- Connection
Spring-loaded heavy duty connector
IP20
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Width
45 mm
- Height
74 mm
- Depth
104.5 mm
- Dim
(W x H x D) 45 x 74 x 104.5 mm
- Content
1 pc(s)
- Industrial packaging
Yes
- Factory colour
Grey
Black
- Nominal current
2 A
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Cross section (flexible) (min.)
1 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3702264 Overload relay 690 V (max) 1 maker, 1 breaker Finder 6K.T1.0.000.1827 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3702264 Overload relay 690 V (max) 1 maker, 1 breaker Finder 6K.T1.0.000.1827 1 pc(s)
Description
Motor protection relay for 6K.13 and 6K.14
