Name: Patlite Receiver/repeater WIO-B1R WIO Bluetooth 1 pc(s)
Brand: Patlite
SKU: 3059293
Availability: BackOrder

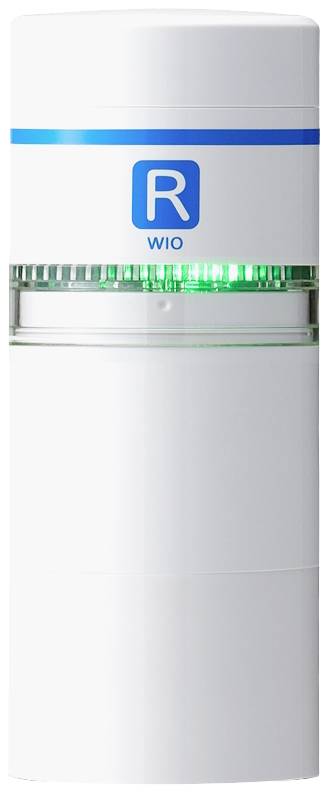

A white cylindrical device with a blue stripe and a green LED light indicating network connectivity.

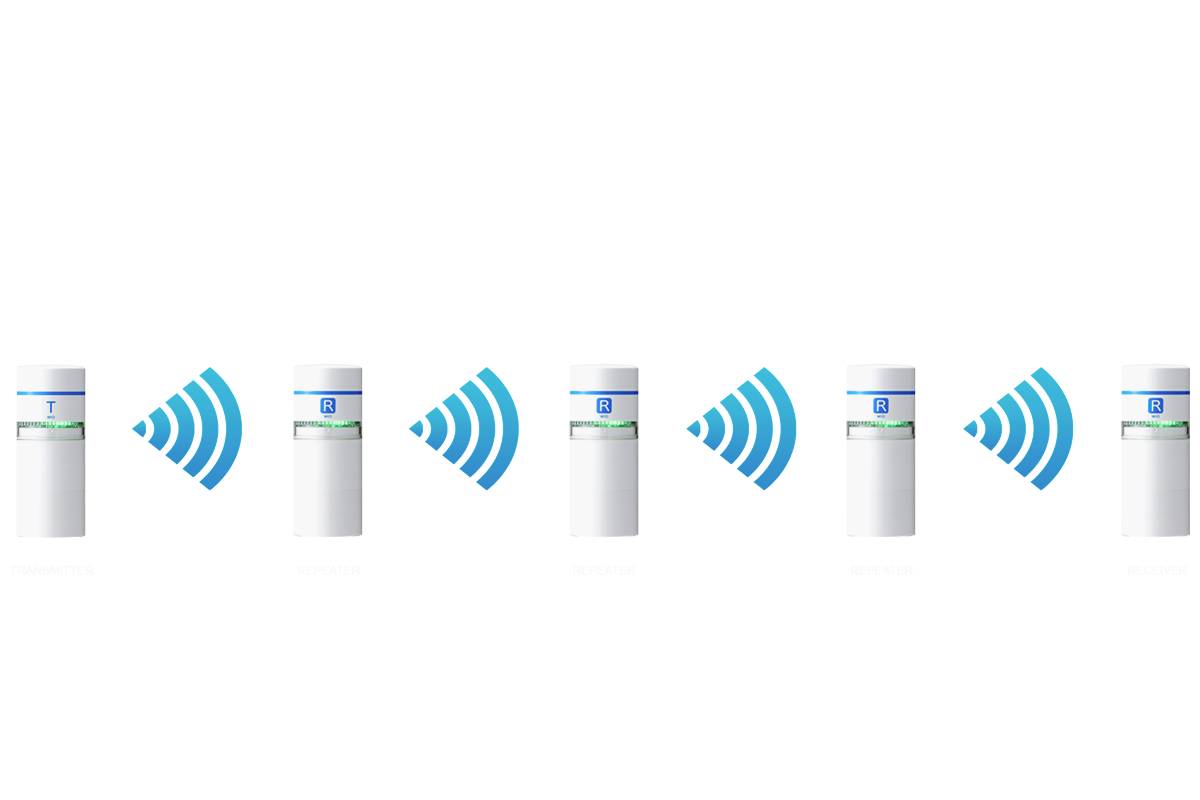

Six interconnected columns that communicate wirelessly with each other. Signal waves between the columns indicate the data flow.

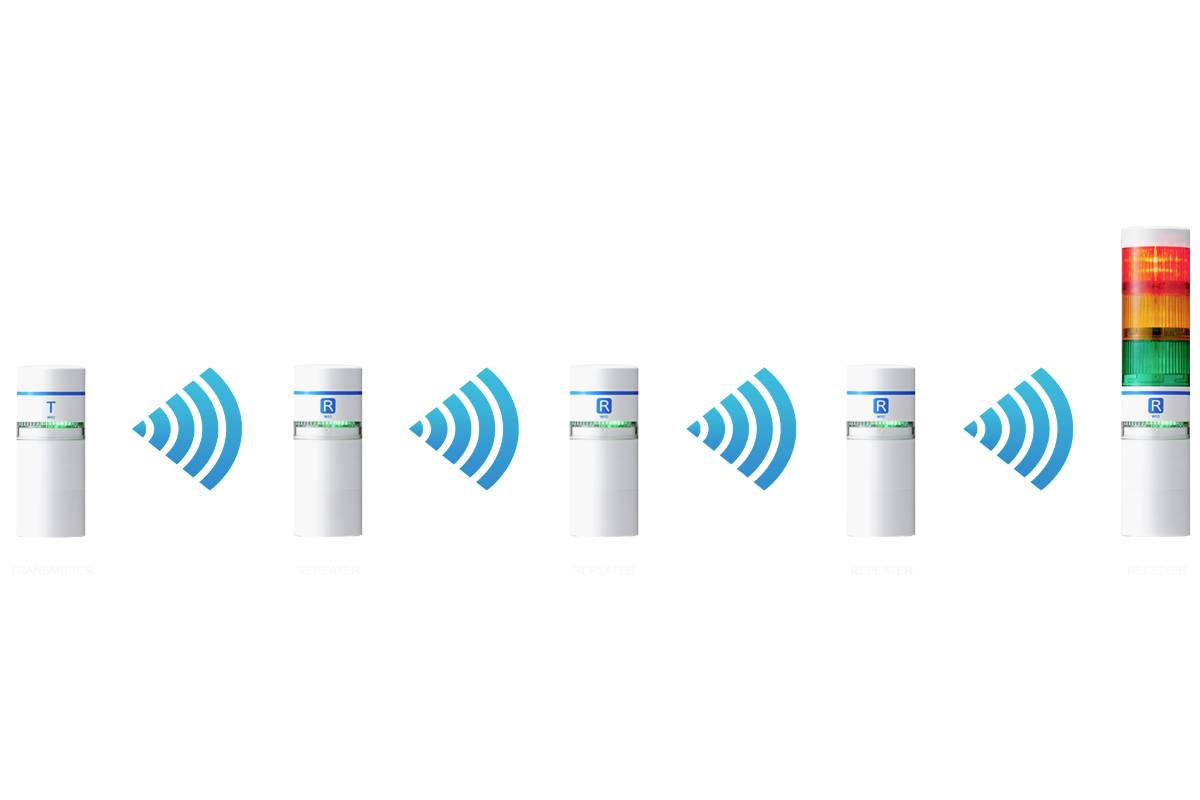

'Diagram shows the process of wireless data transmission. Sensors send data step by step to a traffic light column, which indicates the status.'

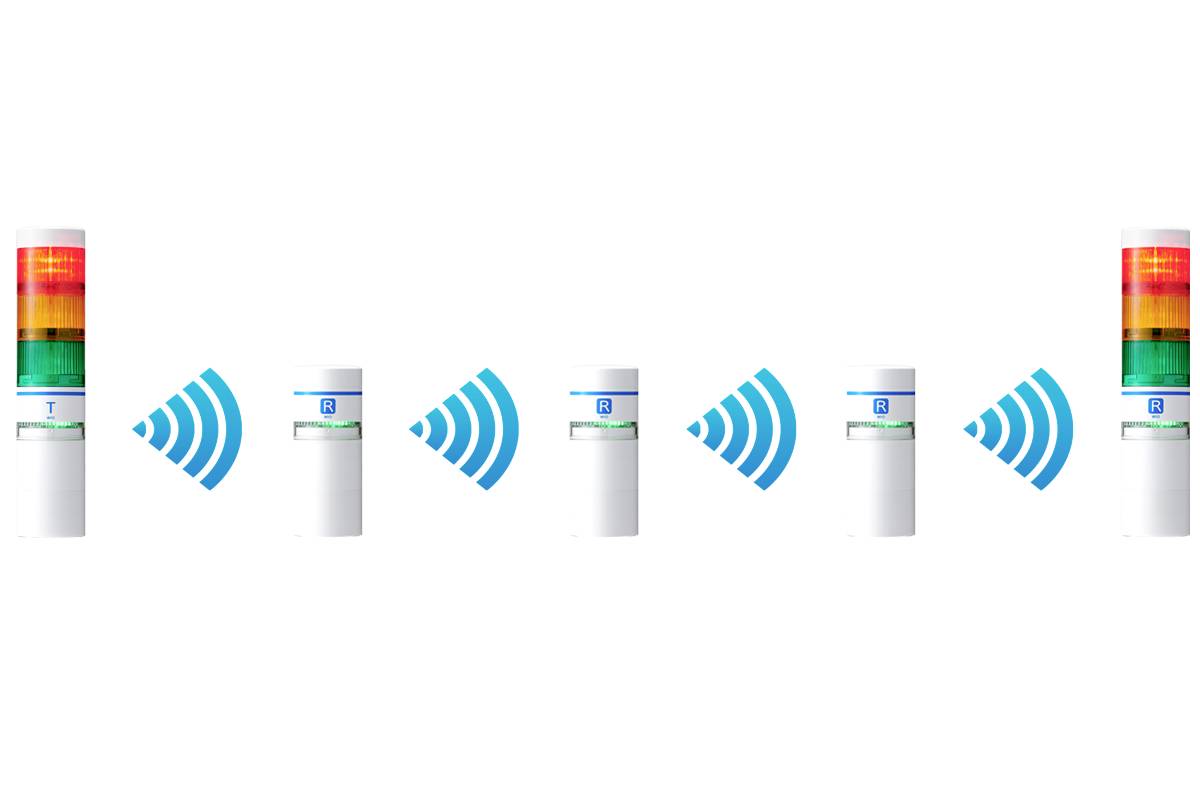

Six wireless signal lights communicate via radio waves. Lights to the left and right are illuminated, with the central ones inactive.

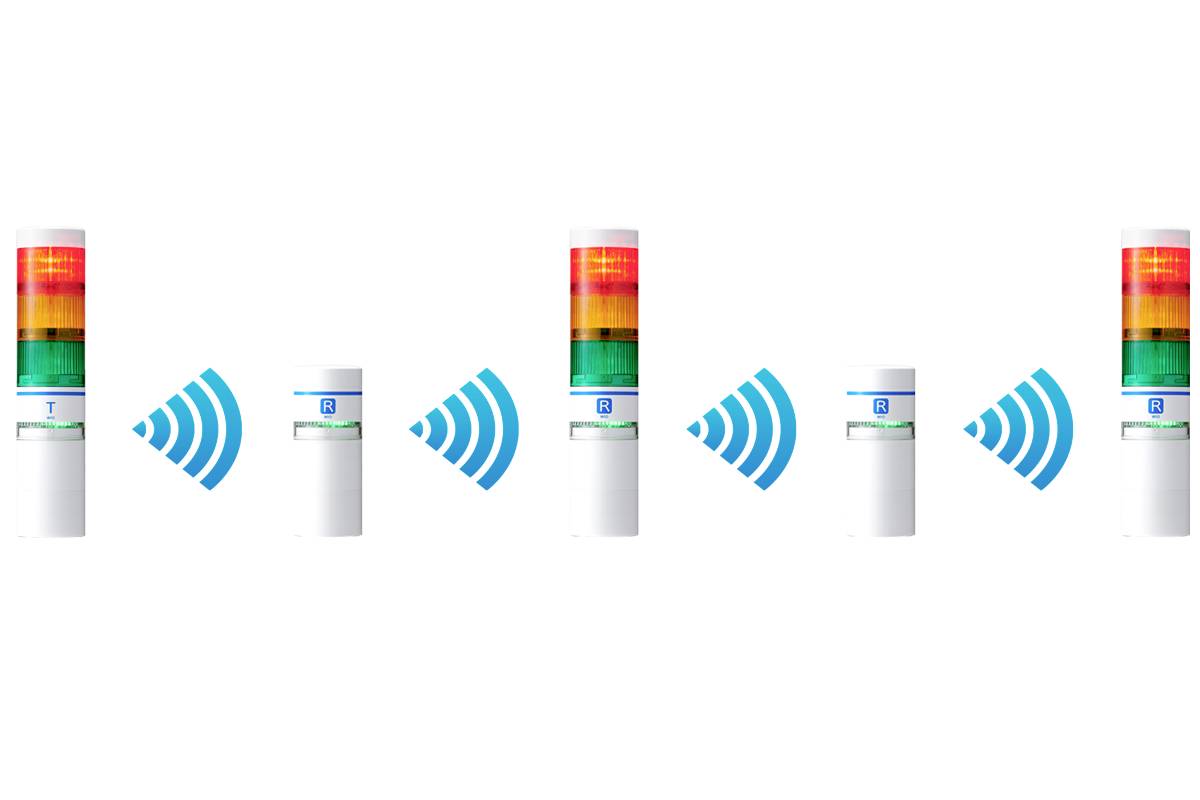

Five signal lights communicate wirelessly with each other. Each light displays a different combination of colours: red, yellow, green.

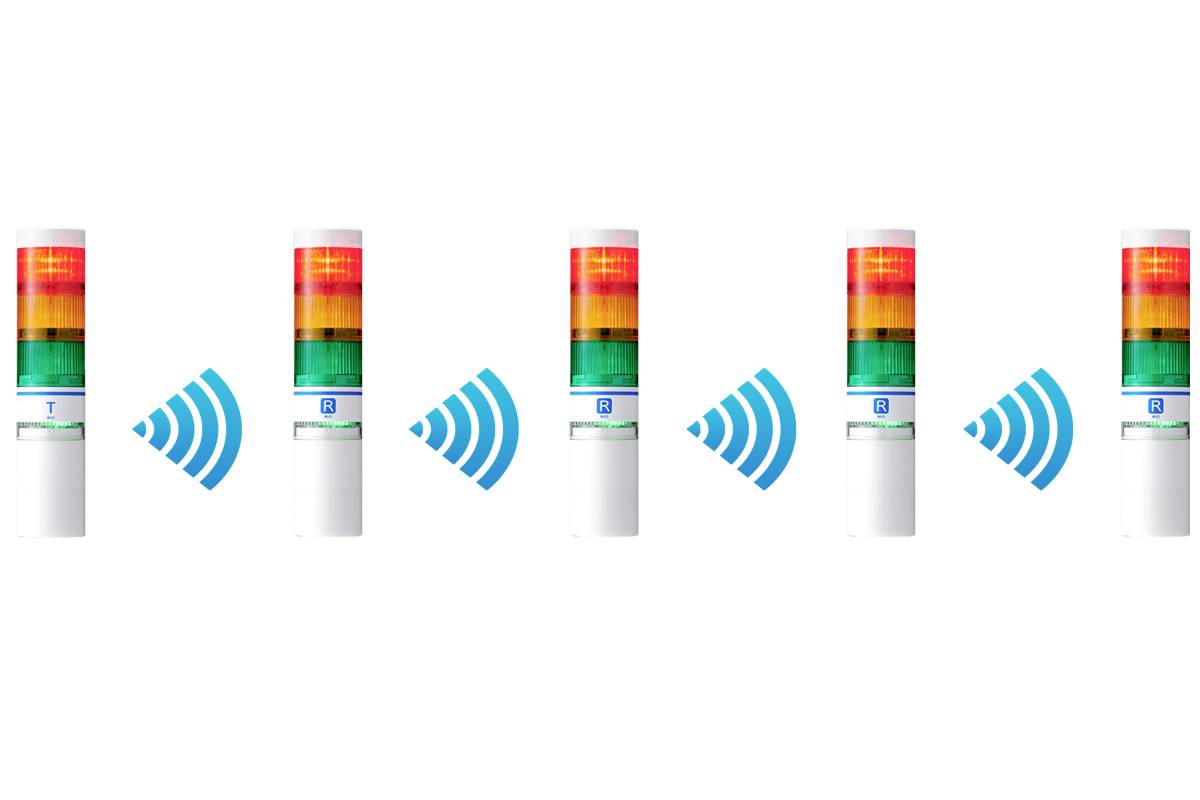

Several white lighthouses with red-yellow-green light signals and blue radio symbols in between, indicating communication and connection.

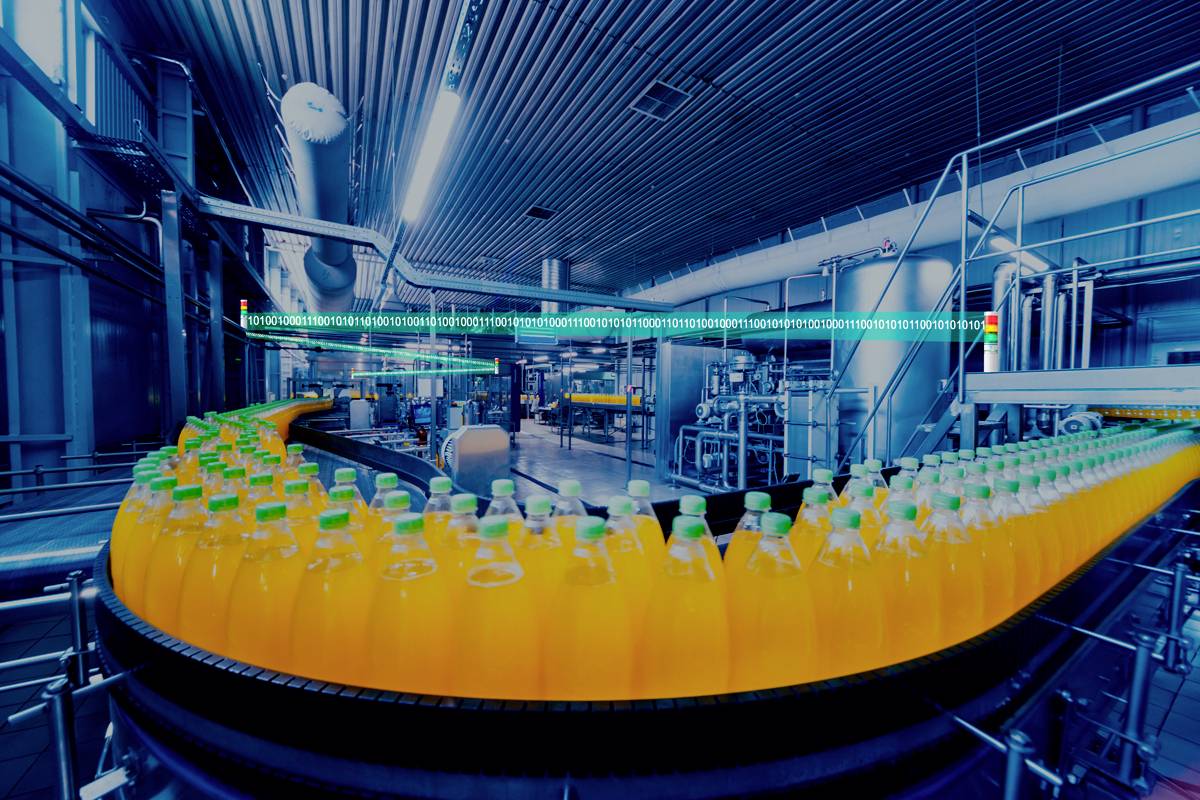

Conveyor belt with numerous orange juice bottles in a factory hall. Industrial machinery and pipework are visible in the background.

Diagram shows a wireless data transmission system: WIO Transmitter sends sensor data to WIO Receiver. Connected via Wi-Fi to a PLC.

A woman smiles and holds a device. Text: 'WIO Ready for use in minutes', 'Bluetooth', up to 400m range.

1/11

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 655.00 / piece)

€ 655.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

WIO receiver/repeater

Easy Bluetooth setup without PC
Transmission to up to 3 receiver units
Control PATLITE signal devices wirelessly
Mirror function
100 meters wireless range and up to 400 meters with relay function
Add LED and buzzer modules to use as a stack light
1 inputs and 6 outputs

Technical specifications

Product type: Receiver/repeater

Operating voltage: 24 V DC

Factory colour: White

(Ø): 60 mm

Features: Bluetooth

: IP65

Dim: (Ø) 60 mm

Case colour: White

Material: PC

Type: WIO

Documents & Downloads

Datasheet

Datasheet 3059293 Patlite Receiver/repeater WIO-B1R WIO Bluetooth 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3059293 Patlite Receiver/repeater WIO-B1R WIO Bluetooth 1 pc(s)

Description

Receiver for Bluetooth-enabled wireless signal transmission – your gateway for smooth communication! Using the receiver with the WIO-B1T transmitter allows you to remotely activate PATLITE signal devices with switch, relay or sensor trigger.

Benefit from the power of a long-range wireless connection with a line of sight of 100 meters and a range of up to 400 meters with the relay function. Stay connected and informed wherever you are in your workspace.

You can also add LR6-compatible LED and buzzer modules to the WIO transmitters and receivers for synchronized status mirroring. Customize your setup by easy turning and locking to your individual needs.

Forget complicated settings and technical hurdles – our receiver is designed for user-friendliness. No PC required, just plug & play. Streamline your communications and signaling processes with ease. Upgrade your workspace to the next level of wireless connectivity.
