Name: Patlite Signal tower WIO-B1R-RYG WIO Bluetooth Red , Amber, Yellow 1 pc(s)
Brand: Patlite
SKU: 3059294
Availability: BackOrder

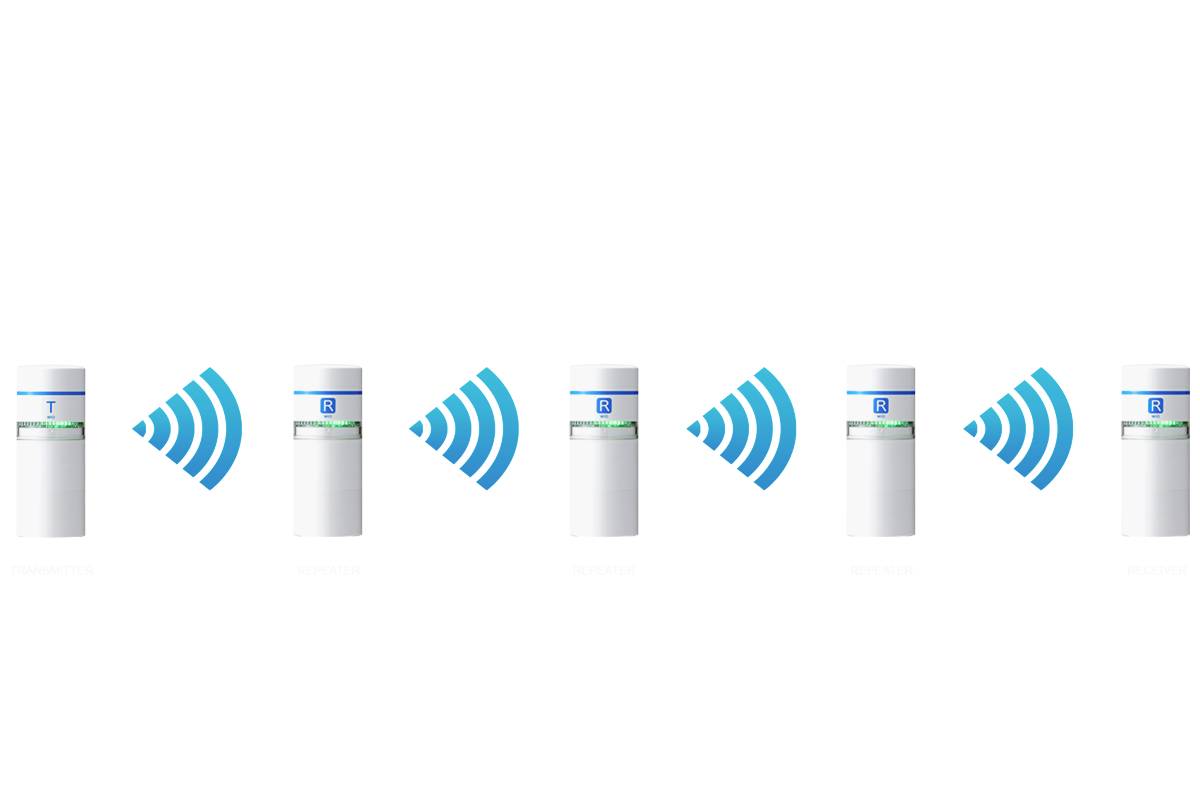

The image depicts several cylindrical objects displaying wireless connection symbols, representing communication or data transmission.

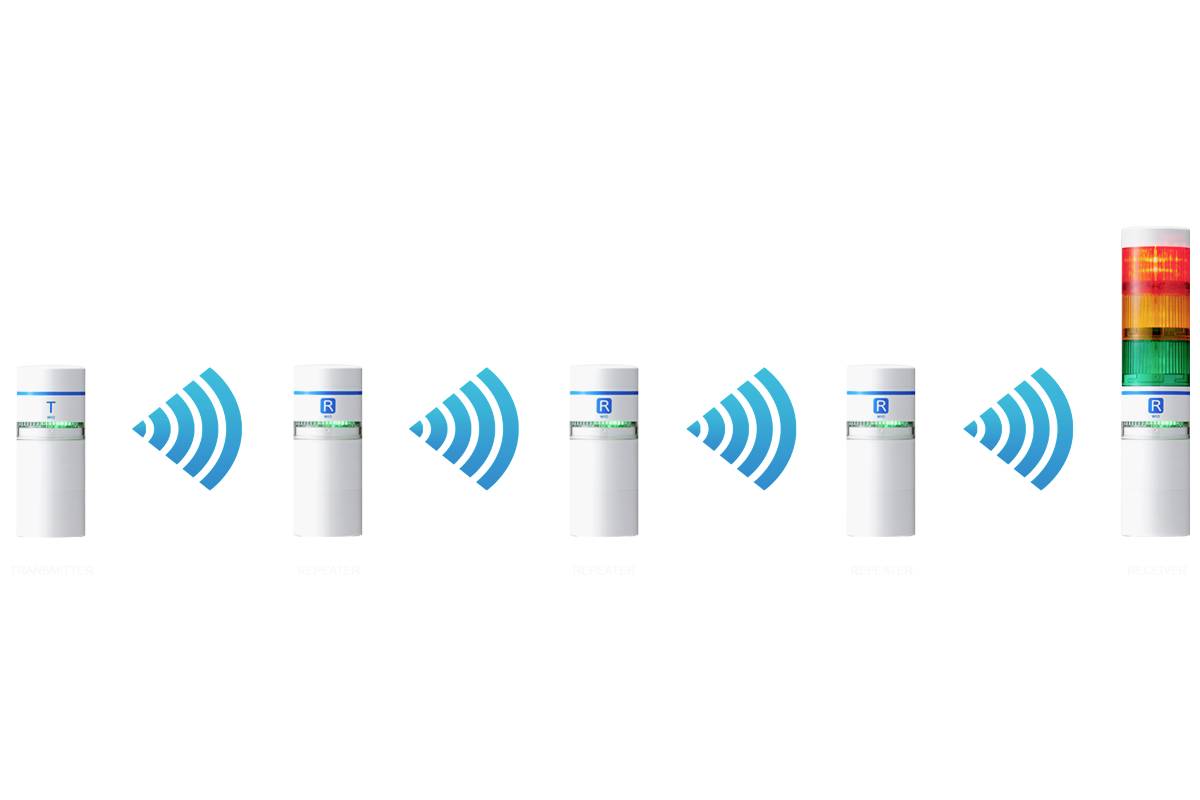

Sensor system with multiple cylindrical sensors that transmit data wirelessly. On the right, a column displays green, yellow and red.

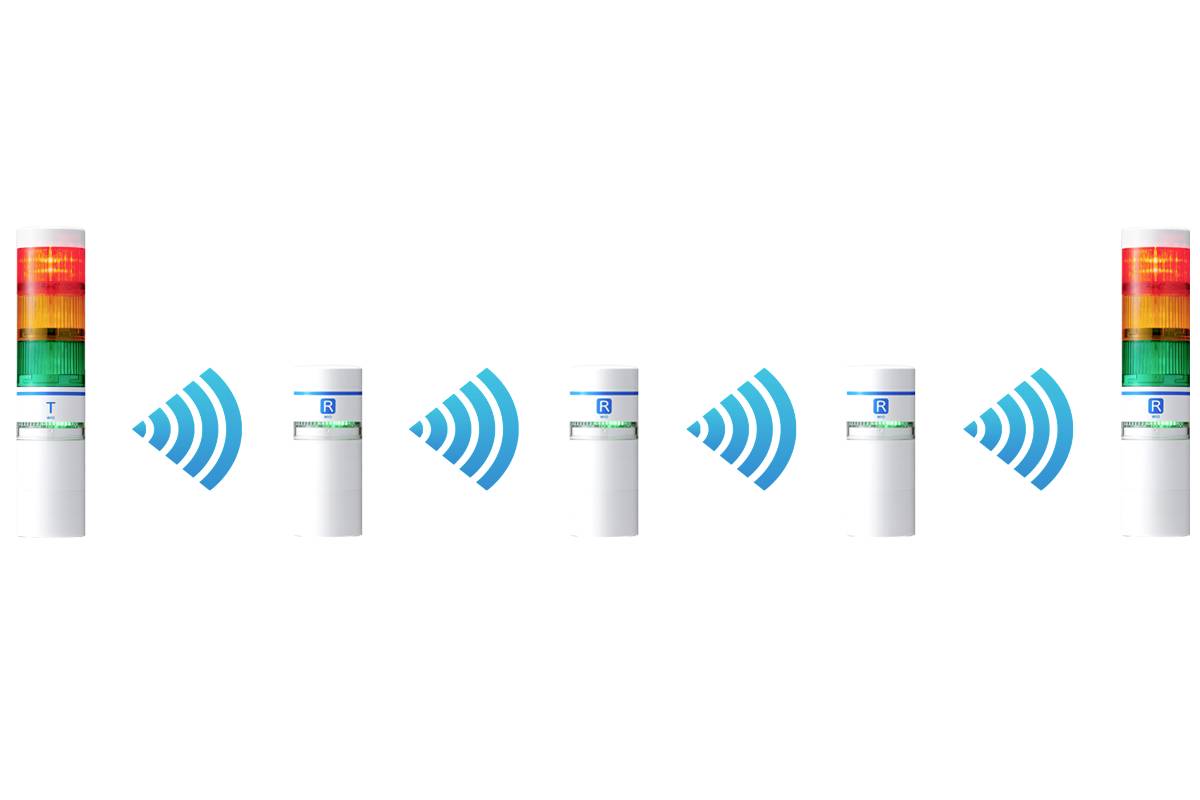

View of a series of wirelessly connected devices exchanging signals. On the left, a tower light indicates red, yellow, and green signals.

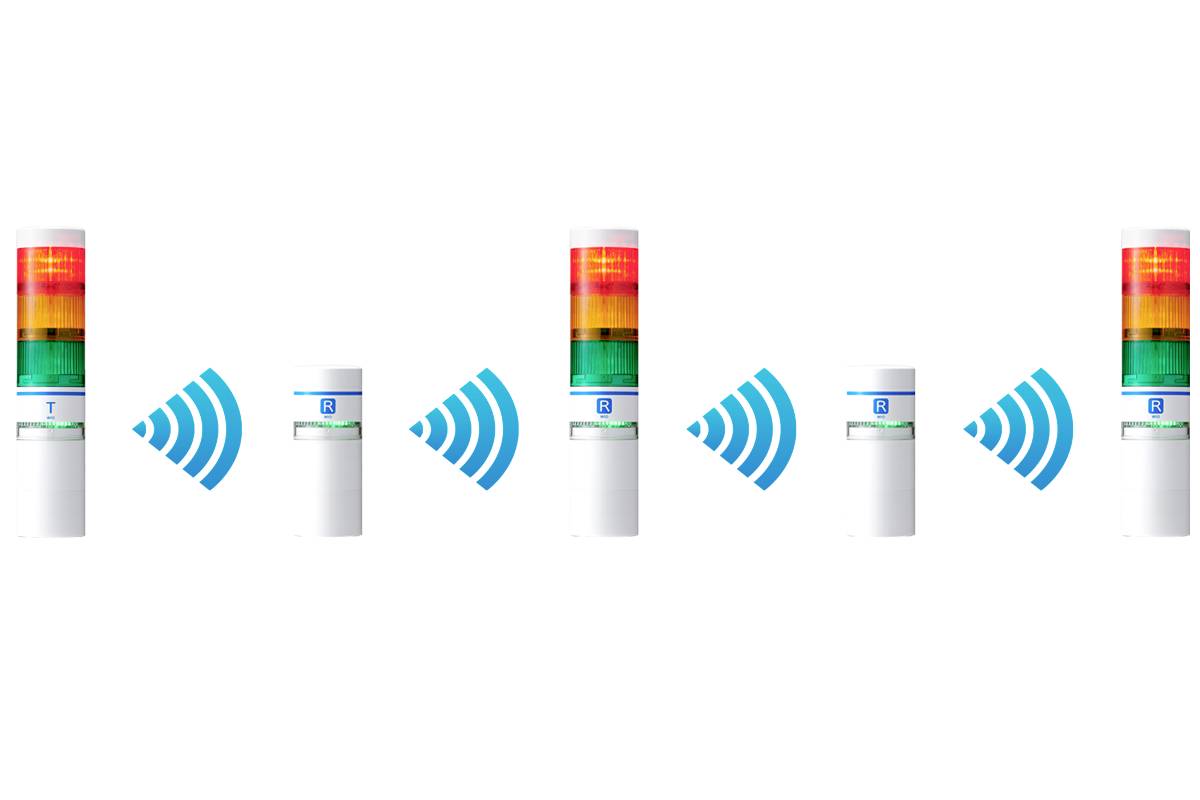

Lighthouses with red, yellow, and green lights, connected by blue radio signals, symbolise wireless communication.

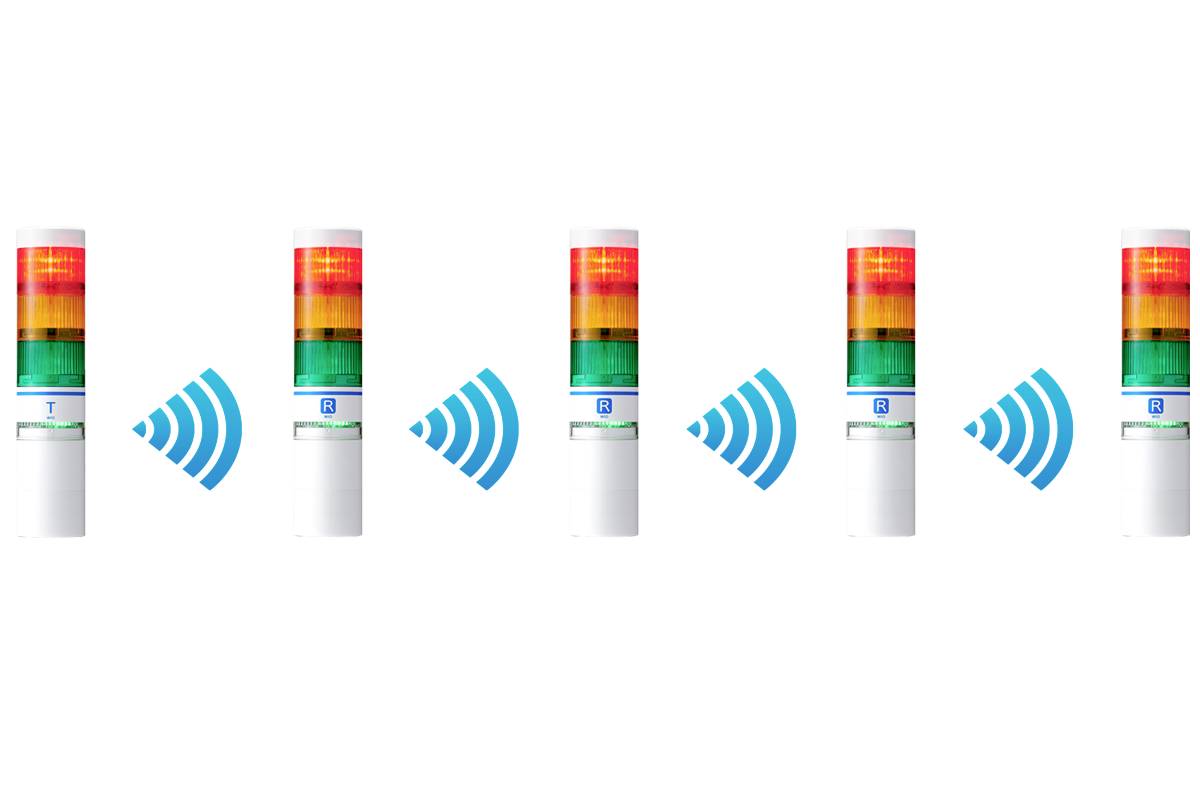

A row of five vertical signal lights in red, yellow, and green. Blue radio symbols are displayed between the lights.

Conveyor belt with orange-coloured drink bottles in a modern, industrial factory environment with blue lighting.

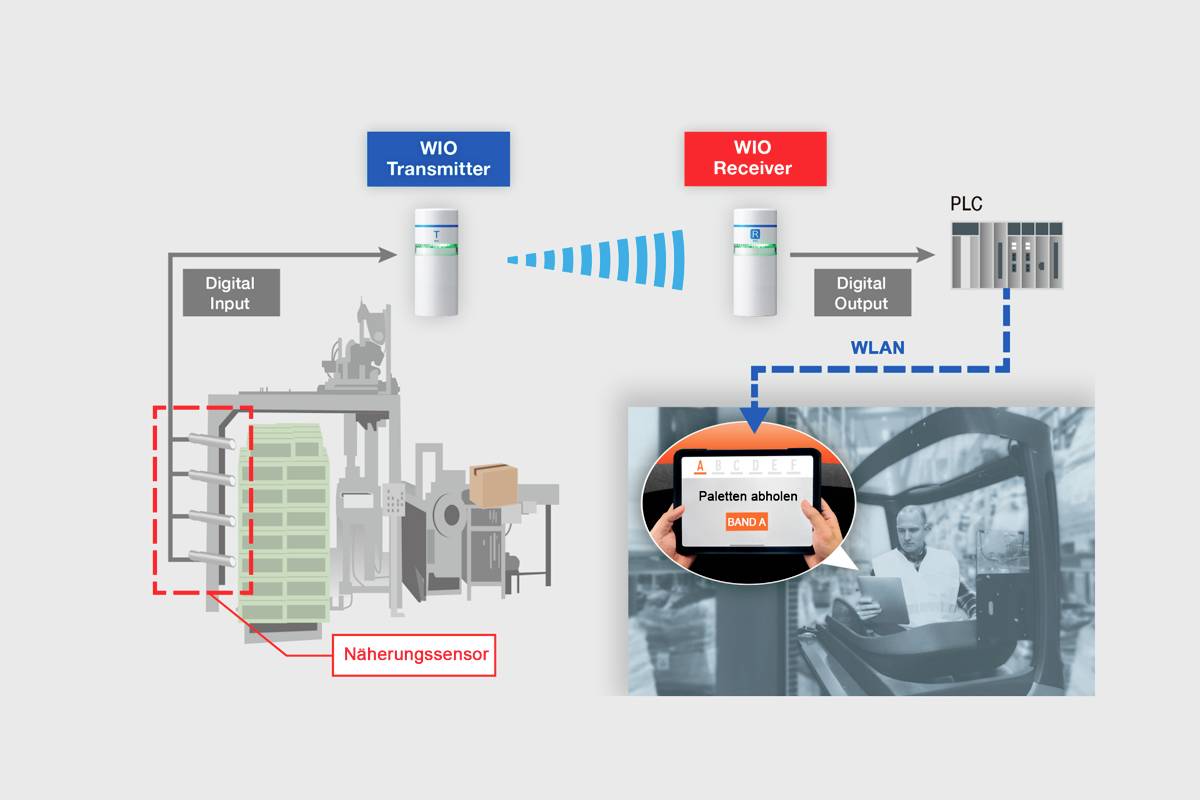

Diagram showing how a WIO transmitter wirelessly sends sensor data to a WIO receiver and then to a PLC.

Two white devices with LED displays and the letters 'T' and 'R'. Between them is 'WIO Wireless IN OUT' against a blue background.

"WIO: Ready for deployment in just a few minutes. Transmission range up to 400 metres without complex electrical installation. Bluetooth® Long Range." Woman holding device, with blue and pink illumination.

1/10

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 835.00 / piece)

€ 835.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

WIO receiver/repeater incl. 3 color units

Easy Bluetooth setup without PC
Transmission to up to 3 receiver units
Control PATLITE signal devices wirelessly
Mirror function
100 meters wireless range and up to 400 meters with relay function
Add LED and buzzer modules to use as a stack light
1 inputs and 6 outputs

Technical specifications

Product type: Signal tower

Operating voltage: 24 V DC

Factory colour: White

Lighted picture: Multi-colour

Signal type: Programmable

(Ø): 60 mm

Features: Bluetooth

: IP65

Dim: (Ø) 60 mm

Case colour: White

Colour: Red
Amber
Yellow

Material: PC

Type: WIO

Calotte colour: Red

Documents & Downloads

Datasheet

Datasheet 3059294 Patlite Signal tower WIO-B1R-RYG WIO Bluetooth Red , Amber, Yellow 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3059294 Patlite Signal tower WIO-B1R-RYG WIO Bluetooth Red , Amber, Yellow 1 pc(s)

Description

Receiver and LED kit for Bluetooth-enabled wireless signaling – your gateway to seamless communication! Using the receiver with the WIO-B1T transmitter allows you to remotely activate PATLITE signal devices with switch, relay or sensor trigger.

Benefit from the power of a long-range wireless connection with a line of sight of 100 meters and a range of up to 400 meters with the relay function. Stay connected and informed wherever you are in your workspace.

This kit includes any of the red, amber, and green LED modules (compatible with LR6) that can be added to the receiver for use as a stacking light. You can also purchase additional LED modules and buzzer units to work on both WIO transmitters and WIO receivers for synchronized status mirroring. Customize your setup by easy turning and locking to your individual needs.

Forget complicated settings and technical hurdles – our transmitter is designed for user-friendliness. No PC required, just plug & play. Streamline your communications and signaling processes with ease. Upgrade your workspace to the next level of wireless connectivity.
