Name: Patlite Transmitter WIO-B1T WIO Bluetooth 1 pc(s)
Brand: Patlite
SKU: 3059292
Availability: BackOrder

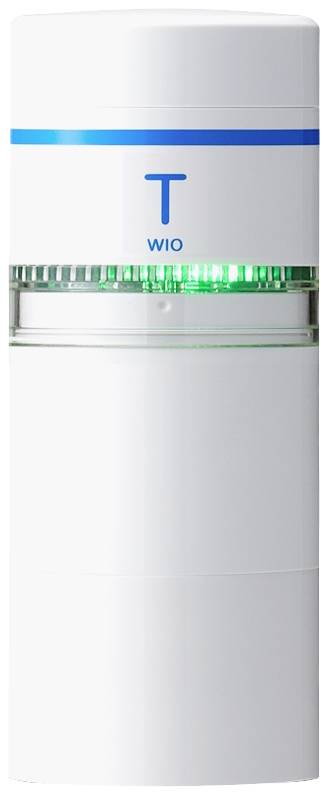

White, cylindrical device unit with a blue line and the inscription 'T WIO'. A green light illuminates in the centre.

White cylindrical container with a blue stripe at the top and 'T WIO' inscription. Plastic, with a clear section in the middle.

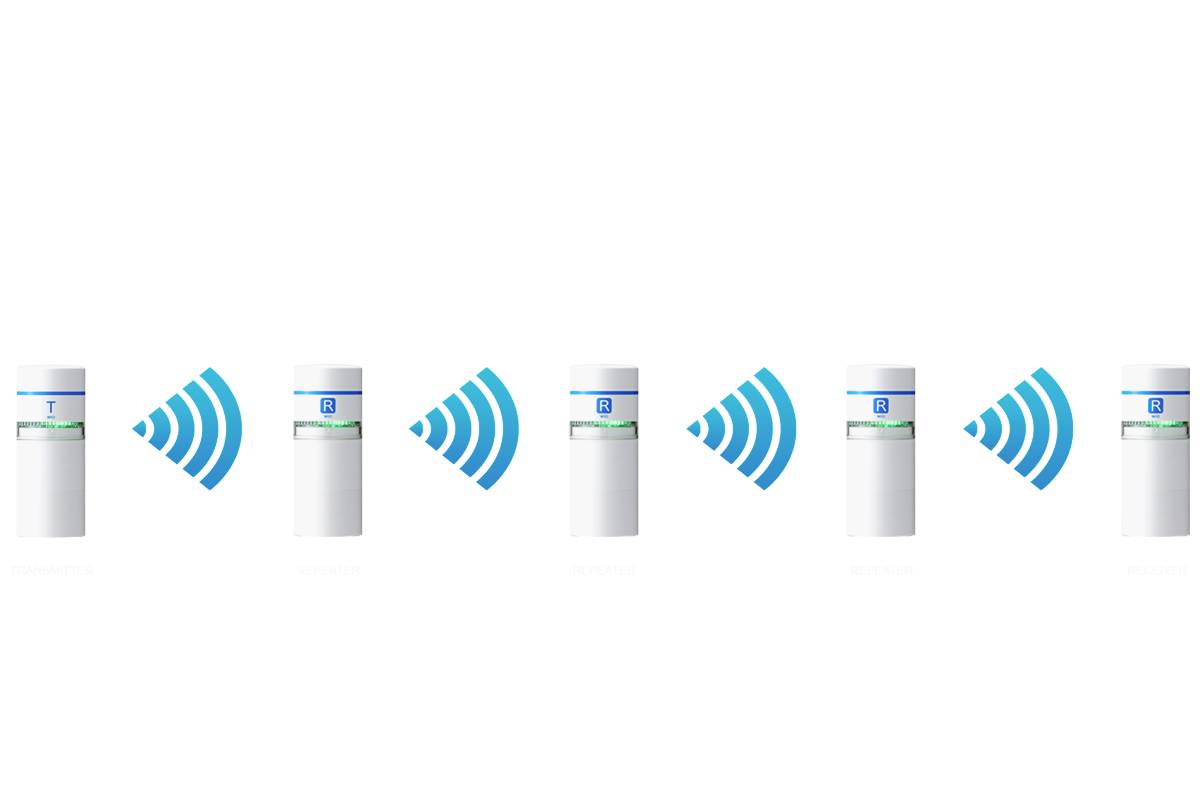

Wireless NRF24L01+ modules, represented by blue signal waves. Communication between multiple modules.

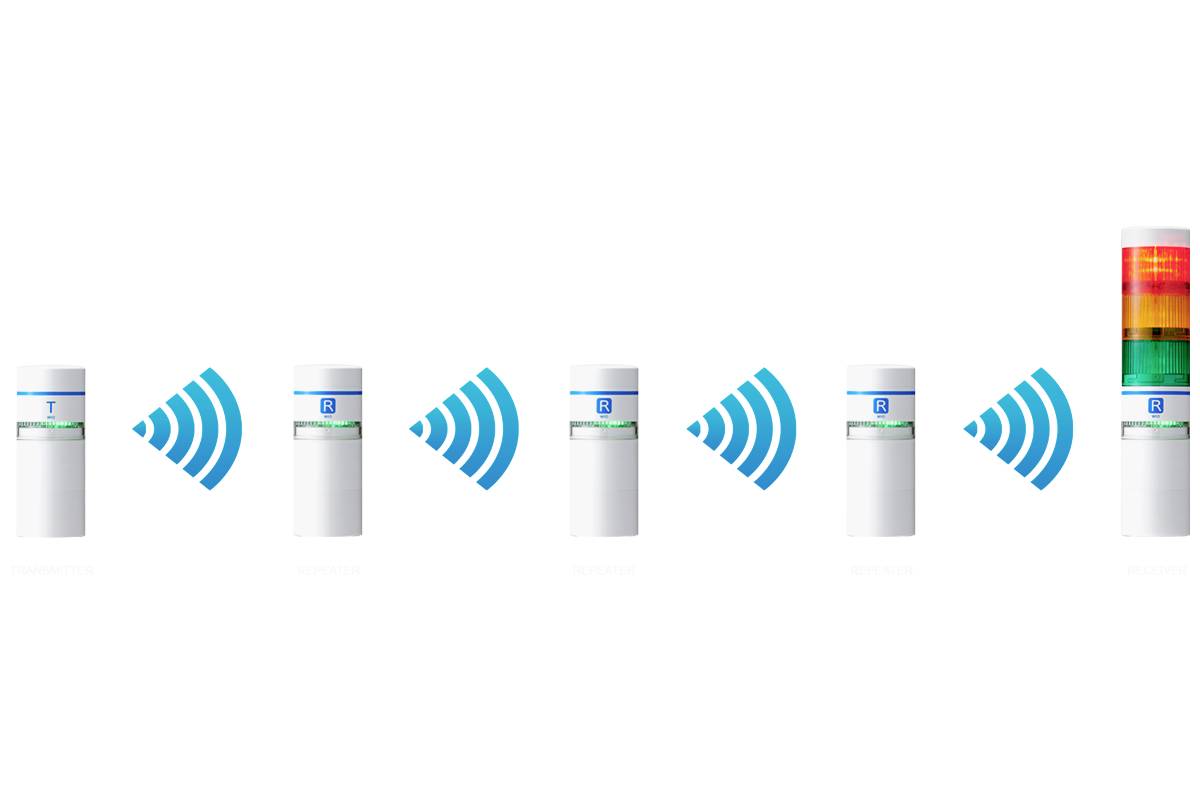

'Signal transmission between safety modules and a traffic light display; data flow through radio waves, concludes with red, yellow, and green indication.'

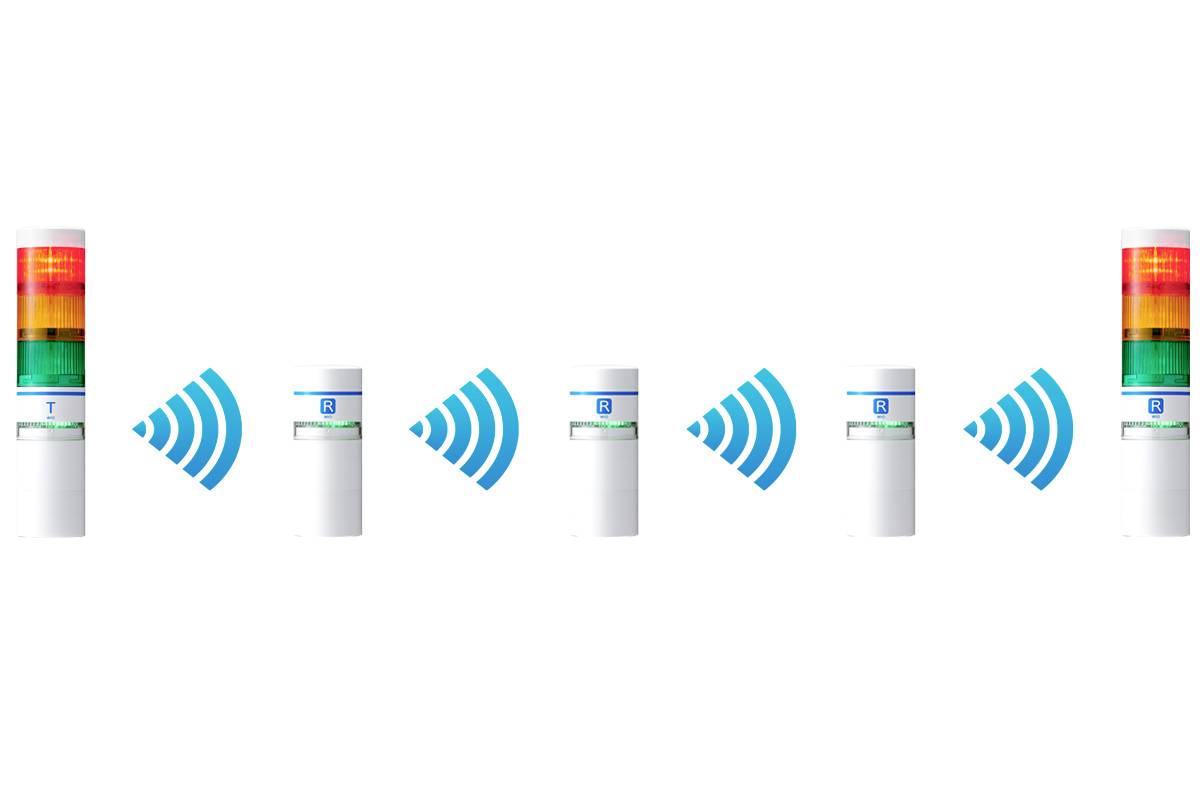

Six wireless signal lights in a line, communicating with each other. Each light shows green, yellow, and red lights.

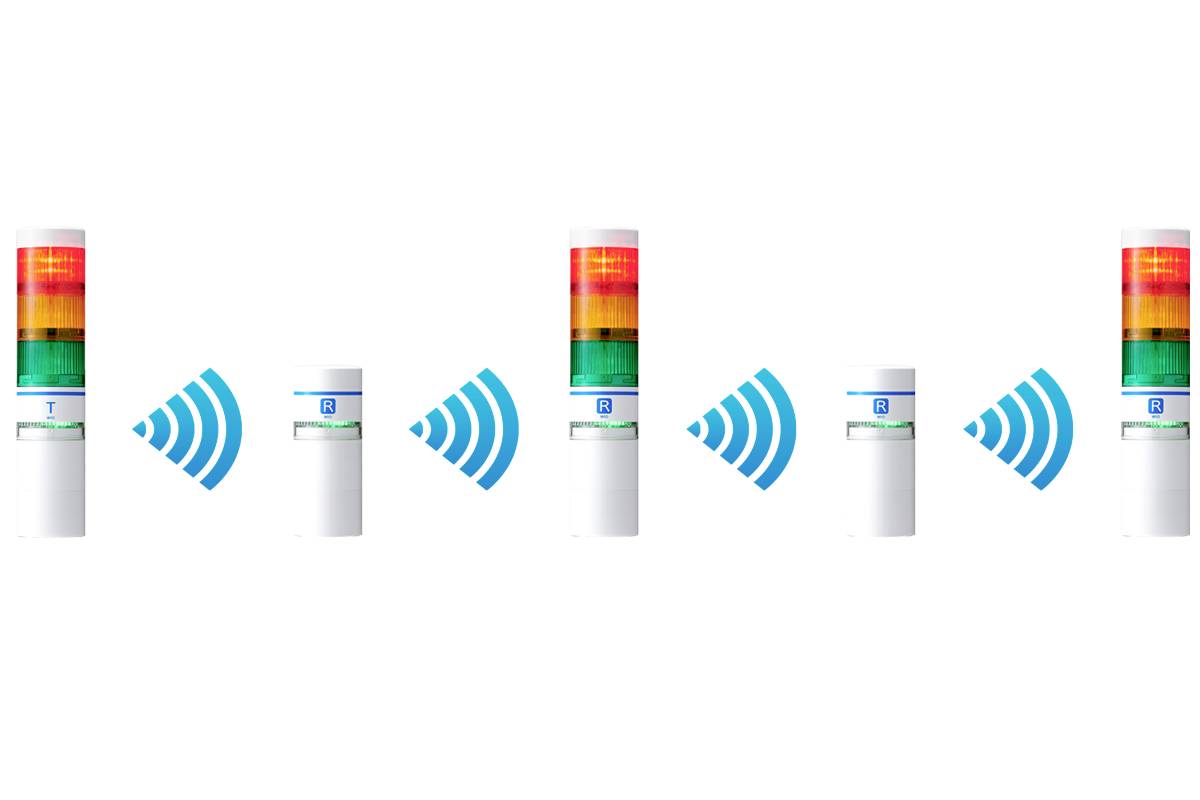

Several status lights with red, yellow, and green signals are wirelessly connected, illustrated by blue-highlighted radio symbols.

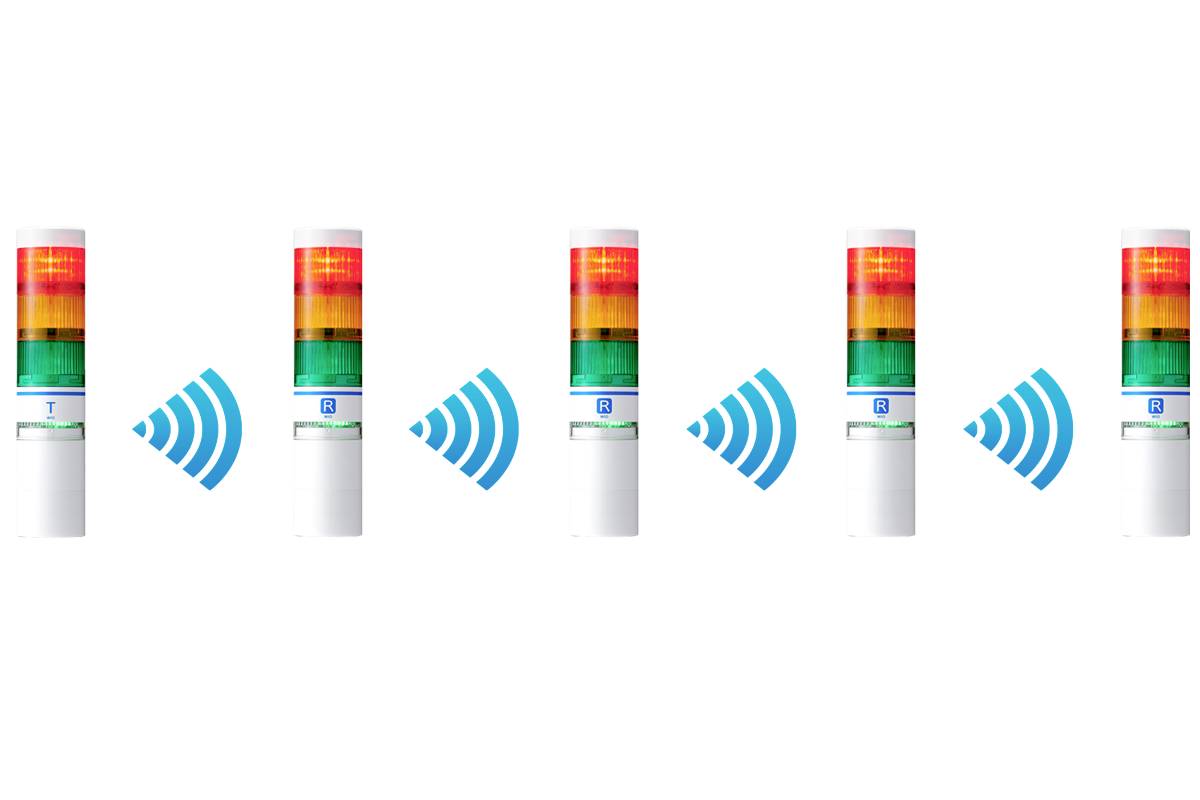

Five vertical displays with red-yellow-green lights and signal waves between them, possibly for wireless communication.

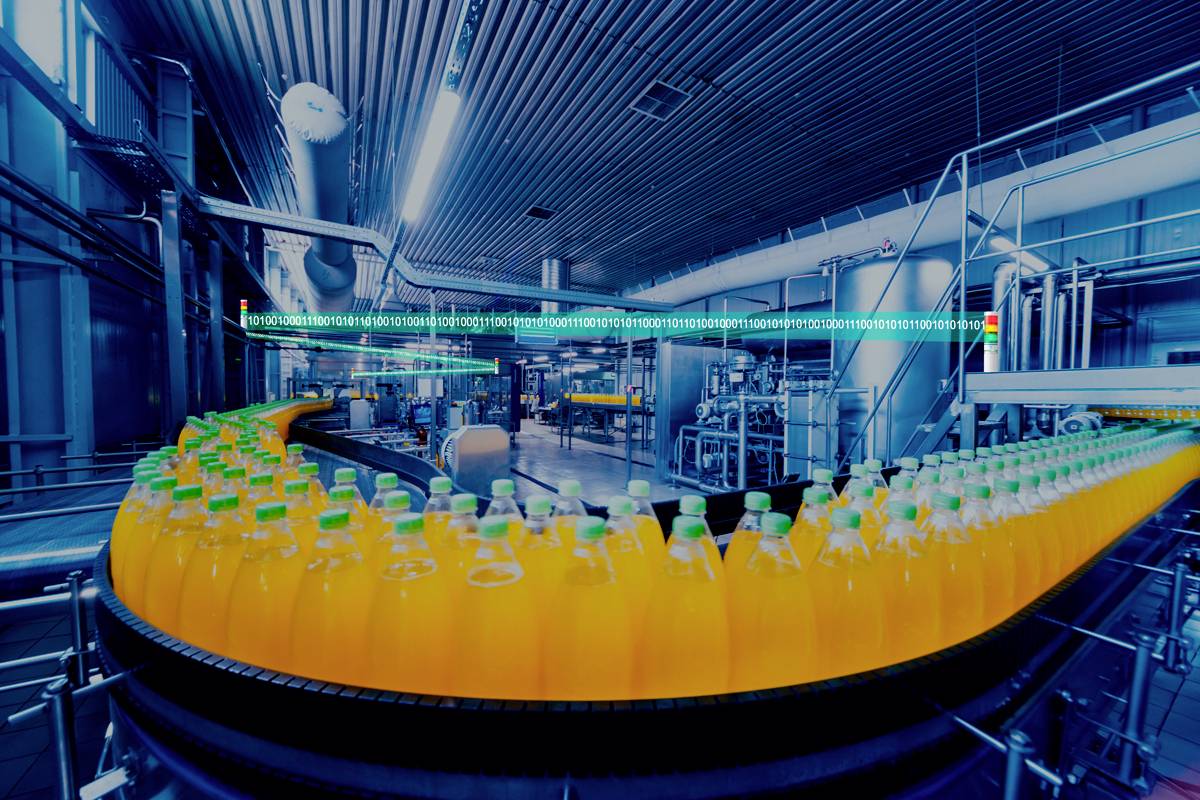

Conveyor belt in a factory with multiple orange juice bottles on a production line. Industrial environment with modern machinery.

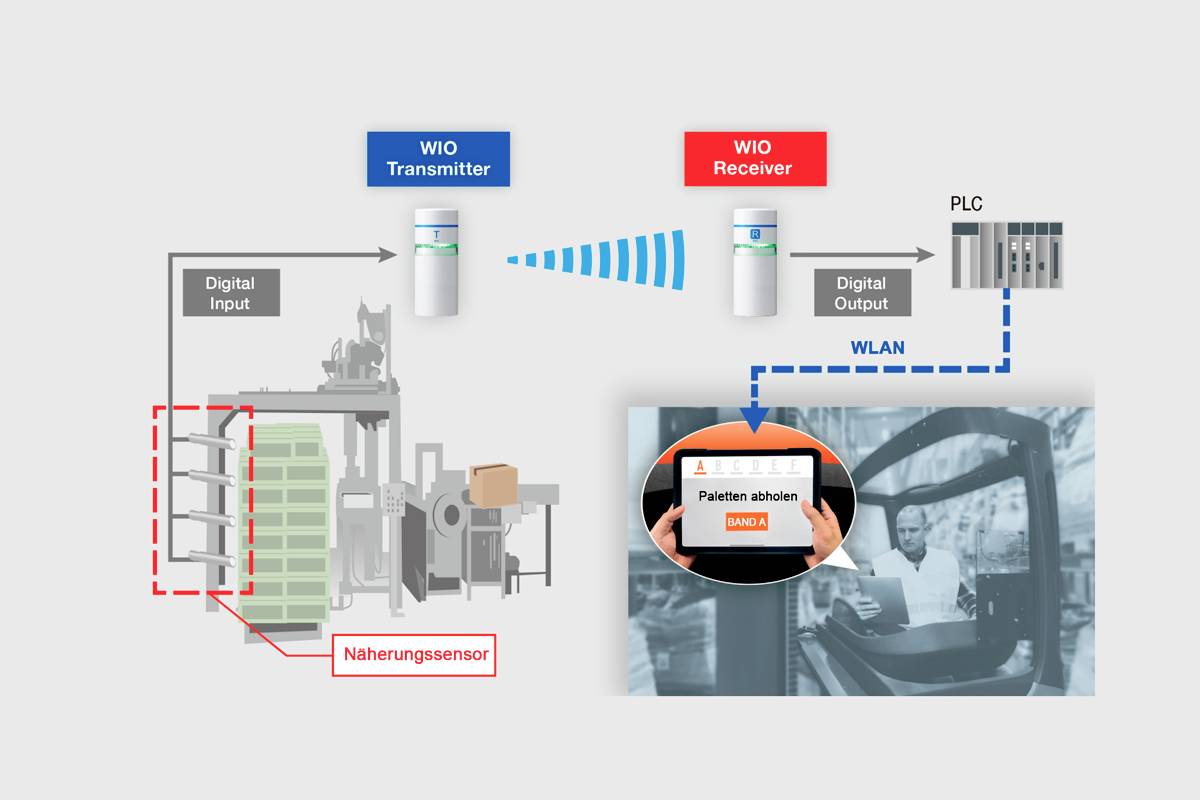

'Diagram of an Automation System: WIO Transmitter sends sensor data via Wi-Fi to WIO Receiver, which controls digital outputs.'

1/11

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 655.00 / piece)

€ 655.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

WIO transmitter

Easy Bluetooth setup without PC
Transmission to up to 3 receiver units
Control PATLITE signal devices wirelessly
Mirror function
100 meters wireless range and up to 400 meters with relay function
Add LED and buzzer modules to use as a stack light
7 inputs and 0 outputs

Technical specifications

Product type: Transmitter

Operating voltage: 24 V DC

Factory colour: White

(Ø): 60 mm

Features: Bluetooth

: IP65

Dim: (Ø) 60 mm

Case colour: White

Material: PC

Type: WIO

Documents & Downloads

Datasheet

Datasheet 3059292 Patlite Transmitter WIO-B1T WIO Bluetooth 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3059292 Patlite Transmitter WIO-B1T WIO Bluetooth 1 pc(s)

Description

Transmitter for Bluetooth-enabled wireless signal transmission – your gateway for seamless communication! With the WIO-B1R receiver you can remotely activate PATLITE signal devices with a switch, relay or sensor trigger.

Benefit from the power of a long-range wireless connection with a line of sight of 100 meters and a range of up to 400 meters with the relay function. Stay connected and informed wherever you are in your workspace.

You can also add LR6-compatible LED and buzzer modules to the WIO transmitters and receivers for synchronized status mirroring. Customize your setup by easy turning and locking to your individual needs.

Forget complicated settings and technical hurdles – our transmitter is designed for user-friendliness. No PC required, just plug & play. Streamline your communications and signaling processes with ease. Upgrade your workspace to the next level of wireless connectivity.

This text is machine translated.
