Buy PCE 015-6TT 015-6tt CEE plug 16 A 5-pin 400 V 1 pc(s)

Three-pin plug in Grey and Red; used for power supply in industrial applications.

Three-pole red and grey industrial plug, suitable for high-performance electrical equipment, with robust metal contacts and a secure locking mechanism.

1/3

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.03 / piece)

€ 5.03

plus VAT.

Report legal concerns

Highlights & Details

CEE Connector 16 A

IP44
Screwless connection technology

Technical specifications

For conductor cross section flexible up to 2.5 mm², single wire up to 4 mm²

Product type: CEE plug

Features: Screwless terminals

Nominal voltage: 400 V

Nominal current: 16 A

Nominal current - rounded value: 16 A

Type A: Screwless terminal

Type B: CEE plug

Cores: 5

Type: Connector

: IP44

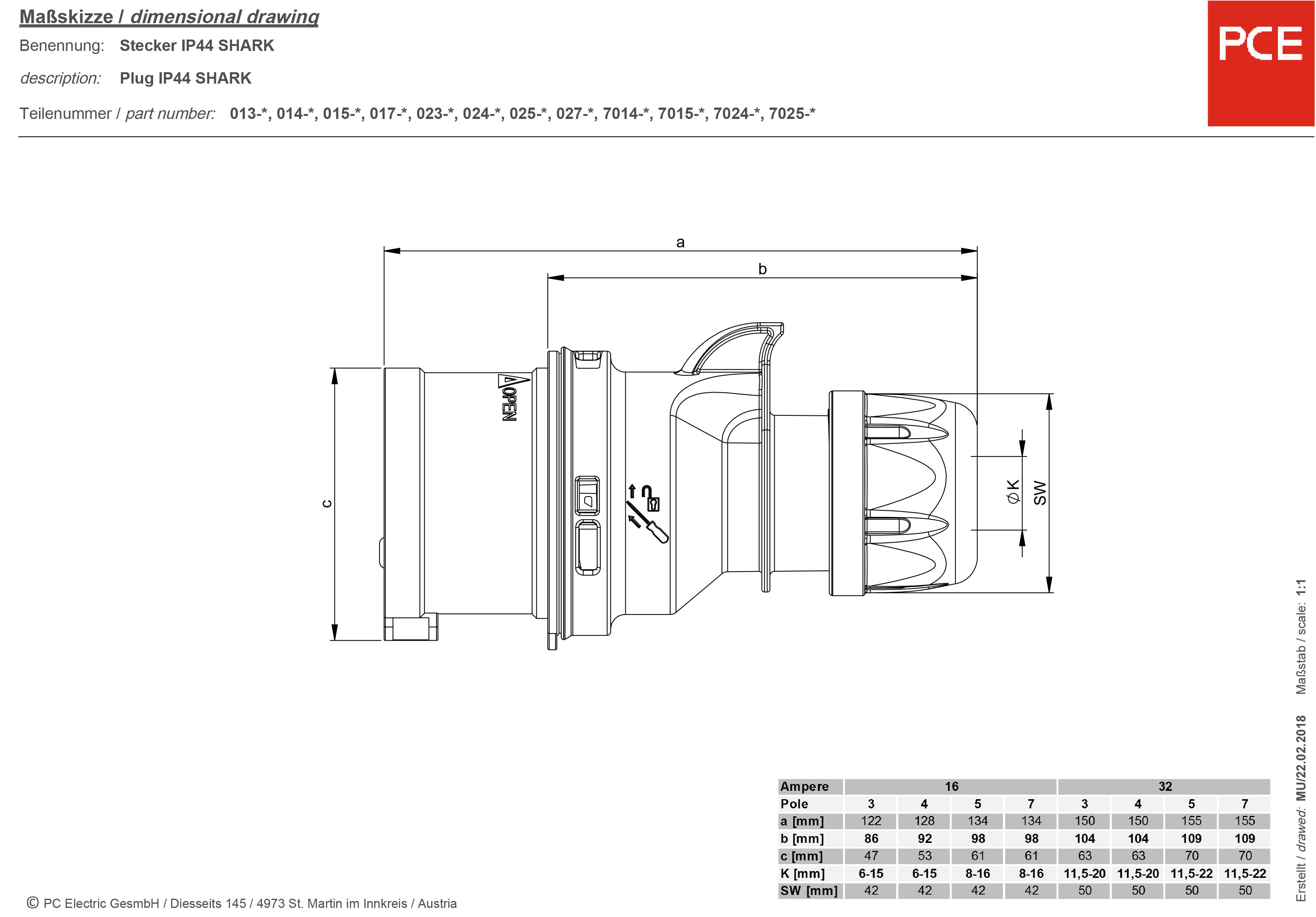

Dim: (W x H) 61.0000 mm x 61.0000 mm

Width: 61.0000 mm

Height: 61.0000 mm

Content: 1 pc(s)

Nominal current (details): 16 A

Operating voltage: 400 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 614021 PCE 015-6TT 015-6tt CEE plug 16 A 5-pin 400 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 614021 PCE 015-6TT 015-6tt CEE plug 16 A 5-pin 400 V 1 pc(s)

Description

The screwless contact terminals, which are already open in the delivery status, enable a quick and simple introduction of conductor. The contact terminal can be easily closed by pressure of the finger.

Features

CEE-Plug 16A 5p 6h IP44/IP54 TT SHARK<>br Housing material: PA6<>
Number of pins: 5 (3P+N+PE) br<>Time position: 6h<><>
: 200/346V~ - 240/415V~ / 50+60Hz br Contacts: Brass br Connection technology: Screwless connection technology (TT) br<>Protection type: IP44/IP54
This text is machine translated.
