PCE 547155301 CEE plug 16 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 142.85 / piece)
€ 176.47
-19 %
€ 142.85
plus VAT.
Highlights & Details

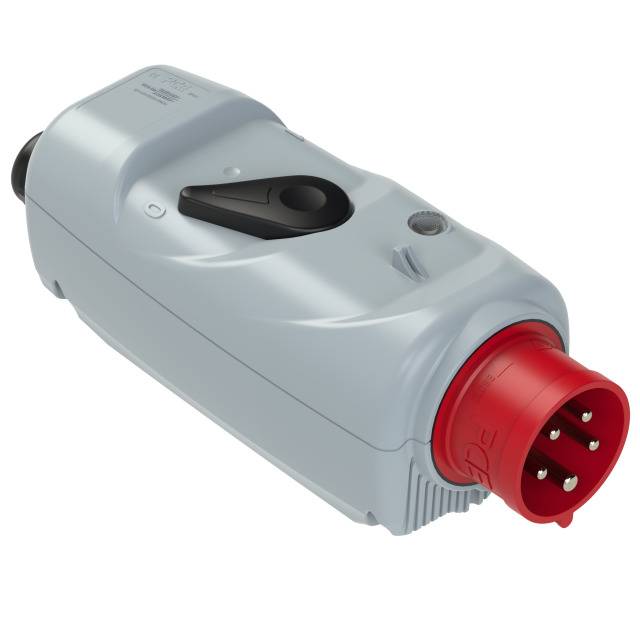

CEE-Plug with ON/OFF switch PW 16 A 5-pole 6h 0-1 operating display
- On/OFF switch
- Battery indicator
- Phase inverter
- IP44
Technical specifications
- CEE ON/OFF switch AC 22 A, 10 kA
- Without Bracket
- Product type
CEE plug
- Features
On/off switch
Phase inverter
Status indicator
- Nominal voltage
400 V
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Type A
M25 cable gland
- Type B
CEE plug (5-pin, 16 A)
- Cores
5
IP44
- Factory colour
Red
Grey
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1276652 PCE 547155301 CEE plug 16 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1276652 PCE 547155301 CEE plug 16 A 5-pin 400 V 1 pc(s)
Description
CEE-Plug ML0 with power indicator and phase inverter.
This text is machine translated.
This text is machine translated.
Hints
Please note: This article is an order-related production. That is why a return is unfortunately not possible.
