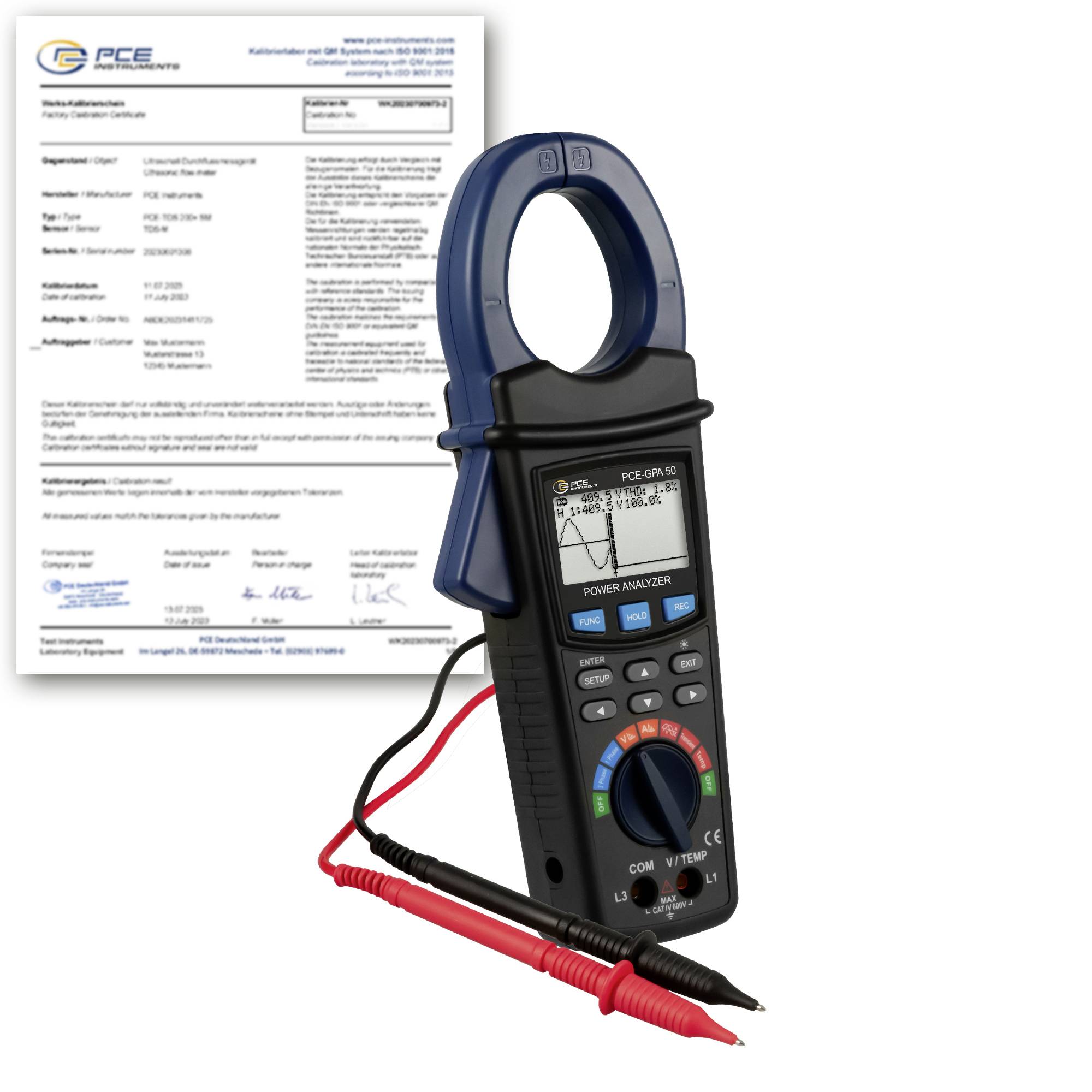

Clamp meter/power analyzer with test leads in front of a calibration certificate document.
Handheld PCE-GPA 50 power analyzer displaying a waveform and readings of 409.5 V and THD 1.8%, with function and control buttons below.
Handheld power analyzer device with LCD screen, rotary mode selector, and control buttons, shown angled on a white background.
Technician uses a clamp meter and test probes to measure electrical wiring inside an equipment panel.
Clamp power analyzer kit with handheld meter, carrying case, test leads, manual, clamps, batteries, and small accessory module.
1/5
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Power Analyzer

  • Power analyzer up to 2000 A
  • TRMS Measurement
  • Performance measurement
  • Harmonics analysis
  • Graphic display with lighting
  • Mains or battery operation
  • Data logger on micro-SD card
  • Measurement for 1 and 3 phases
  • Temperature measurement with thermo element
  • Voltage measurement 10 V ... 600 V AC RMS
  • Current measurement 5 ... 2000 A AC RMS
  • Clamp-on ammeter opening 50 mm
  • Harmonic distortion up to 50 th order

Technical specifications

  • AC V AC voltage measuring range 10 ... 600 V, resolution 0.1 V, accuracy ±(0.5 % ... 3 digits)
  • Measurement type AC voltage AC V Measuring range peak-peak, resolution 0.1 V, accuracy ±(5% ... 30 digits)
  • Measurement type AC AC A Measurement range 5 ... 2000 A, resolution <100 A: 0.01 A, accuracy <200 A: ±(1 % + 0.5 A)
  • Measurement method AC AC A resolution <1000 A >: 0.1 A, 200 A: ±(1% + 5 A)
  • Measurement mode AC AC A measuring range peak-peak, resolution >1000 A: 1 A, accuracy ±(5 % + 30 digit)
  • Power factor (PF) Measuring range 0 ... 1, Resolution 0.001 Accuracy ± 0.04
  • Phase angle measuring range -180 ° ... 180 °, resolution 0.1 °, accuracy ± 1 ° x PF
  • Frequency measuring range 45 ... 65 Hz, resolution 0.1 Hz, accuracy ± 0.2 Hz
  • Active, reactive and apparent power Measuring range 0 ... 9.999 M, resolution 0.1 ... 0.001 M, accuracy ±(1.5 % + 20 digit)
  • Active, reactive and apparent power measuring range (W / VA / VAR), resolution (W / VA / VAR)
  • Harmonic AC V measuring range 1 ... 20. Order 0.1 V, accuracy ±(2 % + 5 digit)
  • Harmonic AC V measuring range 21 ... 50 order, accuracy ±(4 % + 5 digit)
  • Harmonic AC A measuring range 1 ... 20th Order, resolution <100 A: 0.01 A, accuracy ±(2 % + 5 digit)
  • Alternating current resolution <1000 A: 0.1 A
  • Alternating current measuring range 21 ... 50 order, resolution >1000 A: 1 A, accuracy ±(4 % + 5 digit)
  • Harmonic AC V % Measuring range 1 ... 20th Order, resolution 0.1 %, accuracy ±(2 % + 10 digit)
  • Harmonic AC V % Measuring range 21 ... 50 order, resolution 0.1 %, accuracy ±(4 % + 20 digit)
  • Absolute harmonic distortion Measuring range 0 ... 20 %, resolution 0.1 %, accuracy ±(2 % + 5 digit)
  • Absolute harmonic distortion Measuring range 20.1 ... 100 %, resolution 0.1 %, accuracy ±(6% + 10 digit)
  • Temperature Type K Measuring range -100 ... 199.9 °C, resolution 0.1 °C, accuracy ±(1 % + 1 °C)
  • Thermocouple measuring range 200 ... 1300 °C, resolution 1 °C, accuracy ±(1 % + 2 °C)
  • Display Graphic LCD
  • AC V input impedance 10 MOhm
  • Frequency range clamp-on ammeter 40 Hz ... 1 kHz
  • Calibrated frequency clamp-on ammeter 45 ... 65 Hz
  • OVERLOAD PROTECTION AC V: 720 V RMS, AC A: 2100 A.
  • Micro-SD card data memory
  • Display update rate 1 second
  • Storage rate data memory 2 ... 7200 s
  • Storage format XLS
  • Serial interface for live viewing on a PC (SOFT-LUT-USB is required)
  • Power supply 2 x 1.5 V AA battery, 9 V / 800 mA power supply
  • Current intake 60 mA DC
  • Jaw opening 50 mm
  • Operating conditions 0 ... 50 °C / max. 80 %r.F.
  • Weight approx.: 595 g
  • Dimensions 280 x 106 x 47 mm
Product type

Clamp meter

Power supply (details)

9 V

Height

280 mm

Width

47 mm

Length

106 mm

Weight

595 g

ISO standards

Type

Power Analyzer

Dim

(L x W x H) 106 x 47 x 280 mm

Interfaces

DC 3.5 plug

RS232

RS232C

USB 1.1 connector A

microSD slot

Mains plug

SDS slot

RS232 socket 3-pin

SD card

USB

Serial

USB host

3-core

USB 2.0 connector A

Serial interface

DC 3.5 socket

miniSD slot

USB 2.0 connector internal 4-pin

1x USB 2.0 (device)

1x USB 2.0 (host)

Pin strip (3-pin)

Show more
Phase detection

No / No

Display (details)

Graphic LCD

PG recognition

No / No

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3812858 PCE Instruments Power Analyzer Clamp meter Calibrated to (ISO standards)

Description

The power analyzer is used to measure current from 1 or 3-phase consumers. This power analyzer stands out thanks to its measurement range up to 2000 A. The graphic display of the power analyzer is also to be highlighted. In addition to the numerical measurement values, the waveform of the phase from the power analyzer can also be displayed here. The power analyzer can also be used to measure voltages. This allows the power analyzer to calculate active, apparent and reactive power with the help of the phase angle. Beyond that the power analyzer can measure further mains parameters like the energy, power factor and the harmonic.

Along with the extensive measurement functions this power analyzer stands out your data logger function. All measured values can be saved directly to a micro-SD card by the power analyzer. Power analyzer is operated with 2 1.5 V AA batteries. It is also possible to operate the power analyzer with a power supply for long-term measurements.

This text is machine translated.

Features

  • Alternating voltage AC V
  • Alternating current AC A
  • Power factor (PF)
  • Phase angle
  • Frequency
  • Active, reactive and apparent power
  • Harmonic AC V
  • AC
  • Harmonic AC V %
  • Absolute harmonic distortion
  • Temperature type K thermo element

Scope of delivery

  • 1 x Performance analyzer PCE-GPA 50-ICA
  • 1 x test lead set
  • 2 x alligator clips
  • 1 x Micro SD memory card
  • 1 x Mains adapter 9 V / 800 mA
  • 2 x 1.5 V AA battery
  • 1 x Carrying case
  • 1x user manual
  • 1 x ISO calibration certificate

Hints

PCE Instruments Power measurement clamp PCE-GPA 50-ICA incl. ISO calibration certificate is designed by technicians and engineers and is used as ammeter, energy meter, mains analyzer, clamp-on ammeter, multimeter, Ammeter, power tool, electrical measurement equipment, digital multimeter, HVAC meter and much more.
