PCS-PC Plain Hole Connector, IP54 PCS20-PC 166-31203 Hellermann Tyton

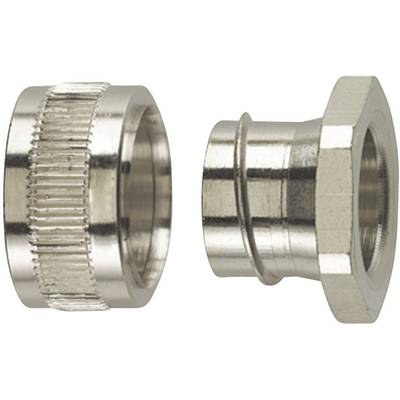

Two metallic pipe connectors, one with threading, one with a smooth surface, demonstrate different connection types.
Product type
End cap
Content
1 pc(s)
Material
Brass
Conduit features
halogen-free
Inside diameter
16.90 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 7.49 / piece)
€ 8.99
-17 %
€ 7.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

PCS-PC Plain Hole Connector, IP54 PCS20-PC 166-31203

  • Two part fitting of shell and body without thread
  • Acts as a locking device
  • The body is fitted to the conduit through the opposite side of the entry
  • Provides a smooth entry bush

Our service for you

  • 'HF Halogen-Free' label, indicating that the product contains no halogen substances.

Technical specifications

Product type

End cap

Content

1 pc(s)

Factory colour

Metal

Material

Brass

Angled

Straight

Conduit features

halogen-free

Compatible with

HelaGuard PCS

Suitable for diameters

20 mm

Inside diameter

16.90 mm

Outside Ø

20 mm

External thread

M20

Max. temperature

+300 °C

Min. temperature

-100 °C

Manufacturer part #

166-31203

RoHS-compliant

Yes

Type

PCS20-PC

Documents & Downloads

Datasheet

Datasheet 608429 PCS-PC Plain Hole Connector, IP54 PCS20-PC 166-31203 Hellermann Tyton

User & Safety Instructions

User & Safety Instructions 608429 PCS-PC Plain Hole Connector, IP54 PCS20-PC 166-31203 Hellermann Tyton

Description

• Two part fitting comprising shell and body without thread
• The body is fitted to the conduit through the opposite side of the entry
• Acts as a locking device
• Provides a smooth entry bush

Features

  • Material: Nickel Plated Brass, Colour: Metal.
