Pfannenberg Signal tower component 28250376055 BR50-LED-CL HI RD 24AC/DC RD LED Red 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Technical specifications
- External diameter: 54 mm
- Product type
Signal tower component
- Operating voltage
24 V DC/AC
- Lighted picture
Permanent light
- Signal type
Non-stop light signal
- Features
LED
IP54
- Case colour
Black
- Colour
Red
- Type
BR50-LED-CL HI RD 24AC/DC RD
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2586032 Pfannenberg Signal tower component 28250376055 BR50-LED-CL HI RD 24AC/DC RD LED Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2586032 Pfannenberg Signal tower component 28250376055 BR50-LED-CL HI RD 24AC/DC RD LED Red 1 pc(s)
Information
Information 2586032 Pfannenberg Signal tower component 28250376055 BR50-LED-CL HI RD 24AC/DC RD LED Red 1 pc(s)
Description

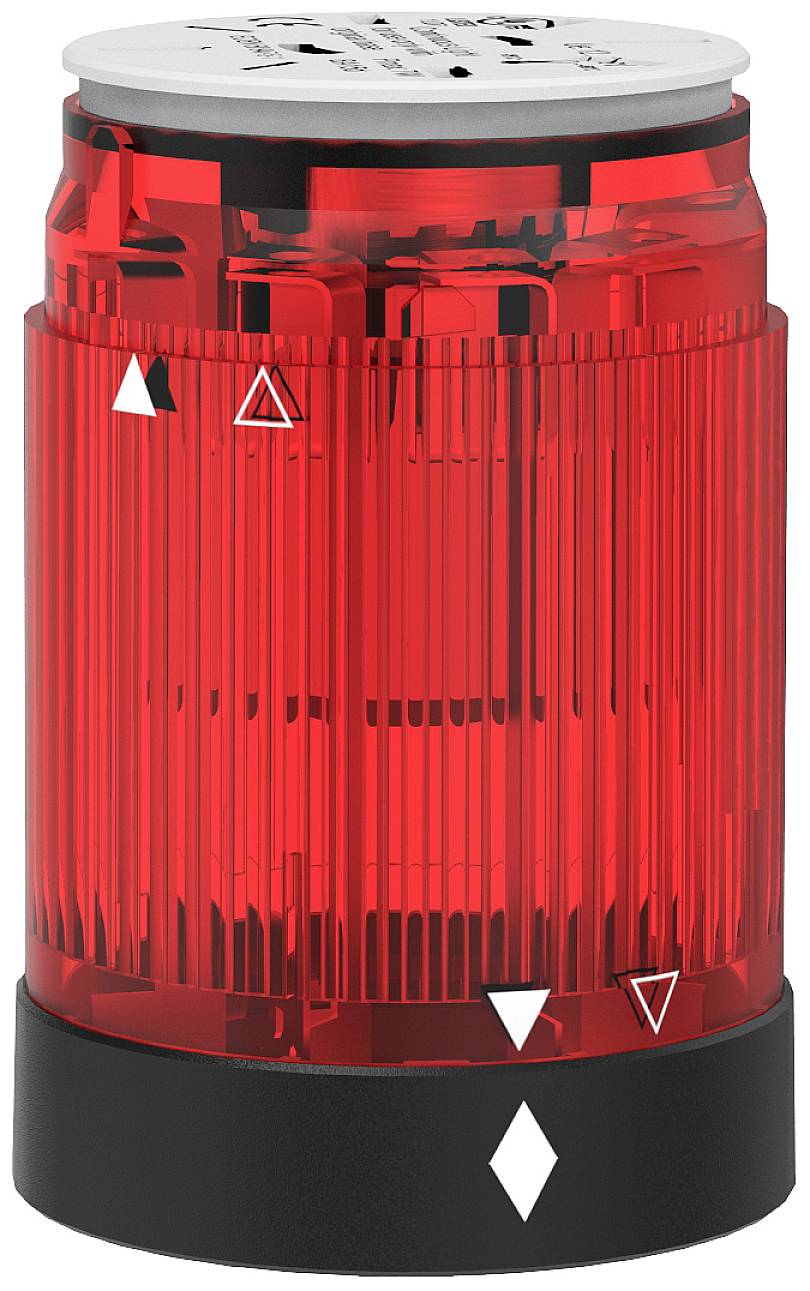

Red BR50 continuous light module including replaceable LED- Up to 5 modules with 6 hood colors can be easily combined by plugging them together and subsequently combined - To be used wherever machine statuses must be displayed and warning signals must be given- Modular design with robust housing for all indoor and outdoor applications, where rough conditions are involved- Module types are: LED continuous light or flashing light (1.5 Hz)| Flash light| Sound sensor 85 dB (A)- Flexible modular system guarantees easy handling- Mechanics and electronics are decoupled, resulting in a stable, vibration-insensitive structure- Versatile variations, mounting via tripod, tube and direct mounting are possible- Monitored module for greater safety, the illuminant is constructed with 2 separate LED strands. If one line fails, the alarm contact is activated and the second line remains lit - High degree of protection IP 54 (optional IP 65)- Dimensions: Ø 54 x 63 mm per light module
This text is machine translated.
This text is machine translated.
