Name: Phoenix Contact 1037083 Continuity Push-in connector Red 50 pc(s) Piece
Brand: Phoenix Contact
SKU: 2209007

A red plastic terminal block with multiple connections. It is used in electrical enclosures to connect electrical wires.

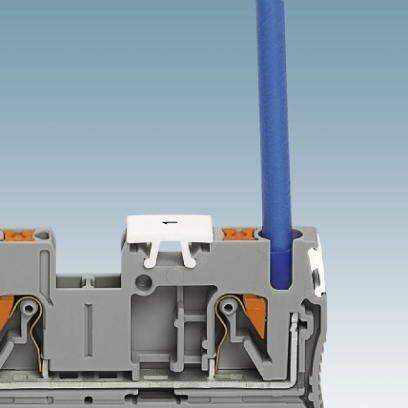

A blue wire is inserted into a grey electrical terminal block. The terminal block has orange levers for wire securing.

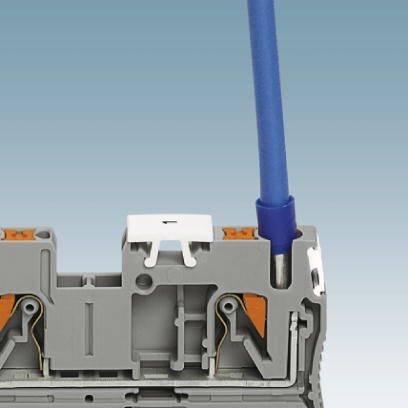

A grey electrical connection block with a blue wire inserted vertically. Suitable for industrial applications.

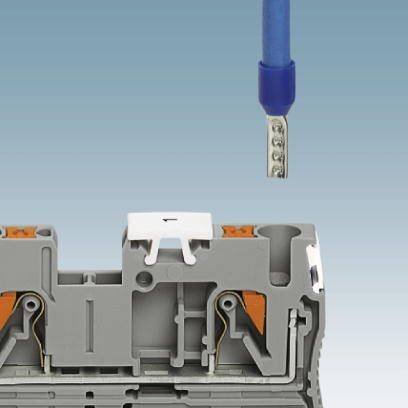

A blue cable connector is plugged into a grey terminal block. The connection serves for electrical wiring.

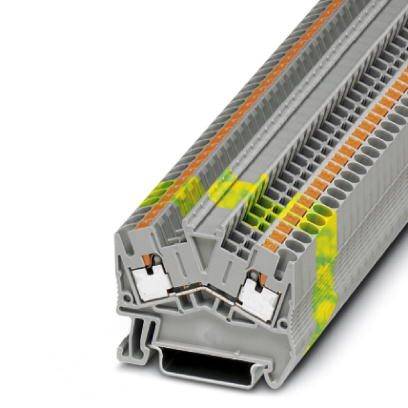

Electrical terminal block with multiple connections in grey and orange, positioned on a white surface.

Graphical representation of a simple line with two large circles at the ends and three smaller circles along the line.

1/6

Image similar

Packaging type

Piece

Product type

Continuity

Connection

Push-in connector

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Through terminal

PTS 2,5 RD

Technical specifications

Number of ports: 2
Potential: 1
Nominal cross-section 2.5 mm²
Dimensioning surge voltage: 8 kV
Over voltage category III
Insulating material group: I
Maximum load current: 30 A (at 4 mm² conductor cross-section rigid)
Open side wall: Yes
Cover width 2.2 mm

Packaging type: Piece

Product type: Continuity

Features: + push-in spring bracket

Connection: Push-in connector

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 26

AWG max.: 12

No. of rows: 1

Factory colour: Red

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 800 V

Min. stripping length: 8 mm

Stripping length (max.): 10 mm

Manufacturer part #: 1037083

Content: 50 pc(s)

Type: PTS 2,5 RD

Dim: (L x W) 49 mm x 5.2 mm

Width: 5.2 mm

Length: 49 mm

Rated surge voltage: 8 kV

Contamination level: 3

Flammability rating: V0

Connector colour: Red

Insulation material: PA

Insulation: PA

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Connection

Factory colour

Content

Cross section (inflexible) (max.)

Cross section (flexible) (max.)

Cross section (inflexible) (min.)

Cross section (flexible) (min.)

Phoenix Contact 1037083 Continuity Push-in connector Red 50 pc(s) Piece

Item no:2209007

Unavailable

Conrad Electronic

This article

24 A

Push-in connector

Red

50 pc(s)

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 0713122 Continuity 18 mm Bolt fixings Grey 1 pc(s) Piece

Item no:2208749

Unavailable

Conrad Electronic

101 A

Bolt fixings

Grey

1 pc(s)

25 mm²

1.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1037082 Continuity Push-in connector Black 50 pc(s) Piece

Item no:2209006

Unavailable

Conrad Electronic

24 A

Push-in connector

Black

50 pc(s)

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1037084 Continuity Push-in connector Yellow 50 pc(s) Piece

Item no:2209008

Unavailable

Conrad Electronic

24 A

Push-in connector

Yellow

50 pc(s)

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1037085 Continuity Push-in connector Brown 50 pc(s) Piece

Item no:2209009

Unavailable

Conrad Electronic

24 A

Push-in connector

Brown

50 pc(s)

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1037086 Continuity Push-in connector Orange 50 pc(s) Piece

Item no:2209010

Unavailable

Conrad Electronic

24 A

Push-in connector

Orange

50 pc(s)

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 3044198 Continuity 2.2 mm Screws Yellow 50 pc(s) Piece

Item no:2225858

Unavailable

Conrad Electronic

76 A

Screws

Yellow

50 pc(s)

25 mm²

1.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 3044211 Continuity Screws Green 50 pc(s) Piece

Item no:2225859

Unavailable

Conrad Electronic

76 A

Screws

Green

50 pc(s)

25 mm²

1.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 3048441 Continuity Screws Grey 50 pc(s) Piece

Item no:2225865

Unavailable

Conrad Electronic

32 A

Screws

Grey

50 pc(s)

6 mm²

4 mm²

0.2 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

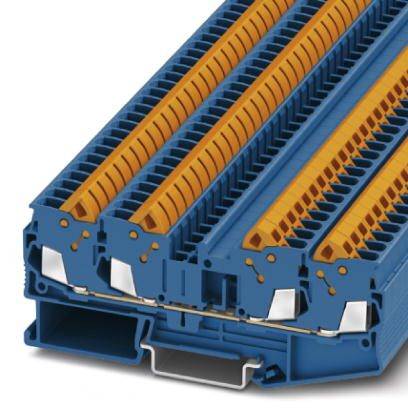

Phoenix Contact 3206447 Continuity Quick-connect Blue 50 pc(s) Piece

Item no:2225893

Unavailable

Conrad Electronic

24 A

Quick-connect

Blue

50 pc(s)

2.5 mm²

0.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2209007 Phoenix Contact 1037083 Continuity Push-in connector Red 50 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2209007 Phoenix Contact 1037083 Continuity Push-in connector Red 50 pc(s) Piece

Description

Two, three and four conductor terminals in one contour. Earth terminals with the same contour are available.

This text is machine translated.

Description

Two, three and four conductor terminals in one contour. Earth terminals with the same contour are available.

This text is machine translated.
