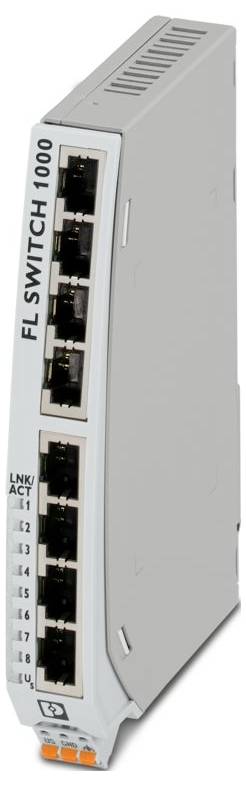

Phoenix Contact 1085162 FL SWITCH 1108NT Industrial Ethernet switch 10 / 100 / 1000 MBit/s
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product Family: Unmanaged Switch 1000
- Design: Stand-alone
- Push-in spring-loaded connection type
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
- Wire cross-section AWG: 24 ... 12
- Width 22.5 mm
- Height: 140.4 mm
- Depth: 92.4 mm
- Material housing: Polycarbonate fiber-reinforced;aluminum / sheet steel DC01
- Ambient conditions: Environmental conditions
- IP30 protection
- Ambient temperature (operation): -40 °C ... 75 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: 2000 m (maximum)
- Standards/regulations: EN_61000-6-4:2019
- Mounting type: Rail mounting
- Permissible air humidity (operation): 5 % ... 95% (no condensation)
- Shock (Operation): 30g (EN 60068-2-27)
- Vibration (operation): According to IEC 60068-2-6: 5g, 150 Hz
- Name of connection: Power supply
- Stripped length: 10 mm
- Conformity/Approvals: Conformity/approvals
- ATEX: II 3 G Ex ec IIC T4 GC
- IECEx: Ex ec IIC T4 GC
- Transmission speed 10/100/1000 MBit/s
- Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 2.5 mm².
- Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 2.5 mm².
- UL, USA / CANADA UL 61010-1, UL 61010-2-201
- Class I, Div. 2, GROUPS A, B, C, D, T4
- Class I, Zone 2, Group IIC, T4
- Maximum power loss at rated conditions 3.915 W (at 24 V DC)
- Number of interfaces: 8
- Air pressure (operation): 79 kPa ... 108 kPa to 2000 m üNN (without derating)
- Transfer length 100 m (per segment)
- Supply voltage range: 9 V DC ... 32 V DC;18 V AC ... 30 V/AC (50/60 Hz)
- Connection technology: Connection technology
- Permissible humidity (storage/transport): 5 % ... 95% (no condensation)
- Note for application: Only for industrial use
- Remaining ripple: 3.6 VPP (within the permissible voltage range)
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Interference radiation: Interference radiation
- IEC 61000-6-2:2019
- Status indication: US, Link and Activity per port
- Transfer Physics: Ethernet in RJ45-Twisted-Pair
- MTTF: 73 years (standard MIL-HDBK-217F , temperature 25°C, operating cycle 100 %);755.6 years (SN 29500 standard , temperature 25°C, duty cycle 21%);653.6 years (Telcordia standard, temperature 25°C, duty cycle 21% (5 days per week, 8 hours per day))
- Supply: Supply
- Air pressure (storage/transport): 79 kPa ... 108 kPa to 2000 m üNN (without derating)
- Typical current consumption 50 mA (at 24 V DC)
- Maximum current consumption:435 mA (at 9 V DC)
- Note on connection type: Auto negotiation and auto crossing
- Number of channels: 8 (RJ45 ports)
- Transfer medium: Copper
- Usage restriction: Use restriction
- EMC note: EMC: Class A product, see manufacturer's declaration in the download area
- Special features: Extended temperature range
- Basic functionality: Unmanaged switch;auto-negotiation;store-and-forward switching mode
- Switch functions: Switch functions
- MAC address table: 4k
- 100 BASE-TX/100BASE-FX (IEEE 802.3u);Jumbo frames (Max. 9216 bytes);prioritization according to Quality of Service (QoS) (IEEE 802.1p);Energy Efficient Ethernet (IEEE 802.3az);Gigabit Ethernet 1000Base-T (IEEE 802.3ab);10Base-T (IEEE 802.3)
- Security functions: Security functions
- Functionality: Functionality
- plug connection: yes
- Ethernet (RJ45): Ethernet (RJ45)
- Signal LEDs: Data reception, link status
- Connection supply: Via COMBICON, max. Conductor cross-section 2.5 mm²
- Status and Diagnostic Indicators: LEDs: US, Link, and Activity per Port
- SUPPLY VOLTAGE (DC) 24 V DC
- Compliance with EMC directives: EN 61000-6-2 EN 61000-4-2 (ESD) criterion B;EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) criterion A;EN 61000-6-2 EN 61000-4-4 (EFT/Burst) criterion A;EN 61000-6-2 EN 61000-4-5 (Surge) criterion B;EN 61000-6-2 EN 61000-4-6 (conduction immunity) criterion A;EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) criterion A;EN 61000-6-2 class A
- Power supply: Power supply
- PROFINET-Conformance class: Conformance Class A
- Supply voltage (AC) 24 V AC (50/60 Hz)
- FCC Title 47 Part 15 Subpart B:2018 Class A
- EU TYPE-EXAMINATION CERTIFICATE: UL 21 ATEX 2638X
- IECEx certificate: IECEx UL 21120X
- Product type
Industrial Ethernet switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
8
- 10/100/1000 Mbps ports
8 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- Width
22.5 mm
- Height
140.4 mm
- Depth
92.4 mm
- Type
FL SWITCH 1108NT
- Interfaces
RJ45
IP30
- Operating voltage
24 V DC
24 V AC
- Max. ambient temperature
75 °C
- Min. ambient temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563306 Phoenix Contact 1085162 FL SWITCH 1108NT Industrial Ethernet switch 10 / 100 / 1000 MBit/s
User & Safety Instructions
User & Safety Instructions 3563306 Phoenix Contact 1085162 FL SWITCH 1108NT Industrial Ethernet switch 10 / 100 / 1000 MBit/s
Description
Narrow Ethernet switch, wide temperature range, eight RJ45 ports with 10/100/1000 MBit/s on all ports, automatic detection of the transfer speed, auto-crossing function and QoS
