Phoenix Contact 1102626 SCX 4POE 2LX Industrial Ethernet switch 10 / 100 / 1000 MBit/s PoE
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: Smart Ethernet box
- Push-in spring-loaded connection type
- Width 284 mm
- Height: 364 mm
- Depth: 121 mm
- Colour: Light gray (RAL 7035)
- UL 94 flammability rating: V0 (housing, deletion of a vertically clamped sample within 10 seconds, no burning drying of plastic melt, no more than 60 seconds after glow);V2 (cable gland, deletion of a vertically clamped sample within 30 seconds, burning dripping is permitted)
- Ambient conditions: Environmental conditions
- IP65 (to DIN EN 60529: Complete protection against contact, dust cannot penetrate, splash-proof from any direction)
- Ambient temperature (operation): -40 °C ... 70°C (>50 °C derating)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: 2000 meters
- Standards/regulations EN 61000-6-4
- Mounting type: Wall mount;mast mounting
- Insulation properties: Insulation properties
- Overvoltage category III (with inserted protection modules);II (without protection modules)
- Pollution level: 2
- Permissible air humidity (operation): 10 % ... 95% (no condensation)
- Wire stripping length: 10.00 mm
- Frequency range: 0.15 MHz ... 80 MHz (80 % amplitude modulation with 1 kHz)
- Transmission speed: 100/1000 MBit/s (depending on the SFP module used)
- 2 conductors of the same cross-section flexible with TWIN cable end sleeve with plastic sleeve: 0.5 mm² ... 1.5 mm².
- Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.2 mm² ... 4 mm².
- Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.2 mm² ... 4 mm².
- Identification: ISA-S71.04-1985 G3 Harsh Group A
- UL, USA / Canada: UL, USA / Canada
- Maximum power loss at rated conditions: Min. 7 W (at 230 VAC, standby mode)
- Protection class I (protective earthing of all conductive housing parts)
- Transfer length: < 80 km (depending on SFP module used)
- Impact strength: IK10 (according to IEC 62262: Impact energy 20 J, equivalent to 5 kg from 40 cm height)
- Supply voltage range: 100 V AC ... 240 V AC -15 % ... 10 % (single phase)
- CE CE
- Note for application: Only for industrial use
- Input: ± 1 kV (AC supply, line to line);± 2 kV (AC supply, line to ground)
- Signal: ± 2.2 kV (1 minute)
- Standard name: Fire protection
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Interference radiation: Interference radiation
- Discharge of static electricity: Discharge of static electricity
- Contact discharge ± 6 kV
- Air discharge ± 8 kV
- Note: Class B, application area residential and small commercial area
- Electromagnetic HF-field: Electromagnetic HF-field
- Fast Transients (Burst): Fast Transients (Burst)
- Conducted interference: Conducted interference
- Voltage 10 V
- Criteria: Criteria
- Criterion A: Normal operating behavior within the defined limits.
- Criterion B: Temporary impairment of the operating behavior, which the device itself corrects.
- Pollutant test: Pollutant gas test
- Emitted interference: Interference
- Immunity speed EN 61000-6-2
- MTTF: 450 years (SN 29500 standard , temperature 25°C, duty cycle 21 %);228 years (SN 29500 standard , temperature 40°C, duty cycle 34.25 %);96 years (SN 29500 standard, temperature 40 °C, duty cycle 100 %)
- Supply: Supply
- Other resistance: UV resistant according to UL746C, f1 listing/evaluation (outdoor housing, 1000 hours under Xenon weathering, 7-day diving test);Resistant to salt mist according to IEC 60068-2-11 (96 h in 5 % salt mist)
- Field strength 10 V/m
- Surge current load (SURGE): Impulse current load (SURGE)
- Connection type note: SFP modules available as accessories
- Number of channels: 1 (push-in technology)
- Transmission medium: Depending on the SFP module used
- Conductor cross-section flexible [AWG]: 24 ... 10
- Output current 300 mA (typical)
- Rated insulation voltage 3 kV AC (input / output, IEC/EN 60950-1)
- Output voltage: 24 V DC ±10 % (supply for devices within the Smart Ethernet box)
- Material (casing): Polycarbonate
- Material (cable gland): Polyamide
- Material (sealing of the cable gland): Neoprene
- Basic functionality: Store and forward switch, according to IEEE 802.3 standard
- Data: Ethernet / Fast Ethernet / Gigabit Ethernet: Data: Ethernet / Fast Ethernet / Gigabit Ethernet
- Output power maximum: 165 W (>55 °C derating, see data sheet);155 W (when switching output is active, >55 °C > derating);90 W (per port POE1...3, 50 °C derating, see data sheet);30 W (POE4)
- Data: Configuration interface: Data: Configuration interface
- Data: Switch output: Data: Switch output
- Single-conductor/clamping point rigid: 1 mm² ... 6 mm².
- Single-conductor/flexible clamping point: 0.2 mm² ... 6 mm².
- Conductor cross-section flexible AWG max. 16
- Conductor cross-section flexible AWG min: 24
- Load/output load current output: No inductive load
- Switch functions: Switch functions
- Diagnostics functions: RMON History;LLDP (Link Layer Discovery Protocol);SNMP traps;N:1 port mirroring;ACD (Address Conflict Detection)
- Filter functions: Port prioritization;VLAN (up to 32 VLANs)
- IP configuration: DHCP client;BootP;Static IP address
- MAC address table: 8k
- Management: Web-based management (HTTP/HTTPS);SNMPv2/v3;Command Line Interface (Telnet, SSH)
- Redundancy: RSTP (Rapid spanning tree protocol according to IEEE 802.1D-2004);Large tree support;FRD (fast ring detection)
- Other functions: Jumbo frames
- Simple Network Time Protocol (SNTP)
- Security functions: Security functions
- Functions: Functions
- Indirect discharge: ± 6 kV
- Functionality: Functionality
- Product type
Industrial Ethernet switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Managed switch
- Ethernet ports
5
- SFP ports
2 x
- 10/100/1000 Mbps ports
4 x
- Fibre-optic ports
2
- Jumbo frames
Yes
- Router features
PoE
- MAC addresses
8000
- Width
284 mm
- Height
364 mm
- Depth
121 mm
- Type
SCX 4POE 2LX
- Interfaces
RJ45
SFP
IP65
- Operating voltage
100 V AC
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563691 Phoenix Contact 1102626 SCX 4POE 2LX Industrial Ethernet switch 10 / 100 / 1000 MBit/s PoE
User & Safety Instructions
User & Safety Instructions 3563691 Phoenix Contact 1102626 SCX 4POE 2LX Industrial Ethernet switch 10 / 100 / 1000 MBit/s PoE
Description

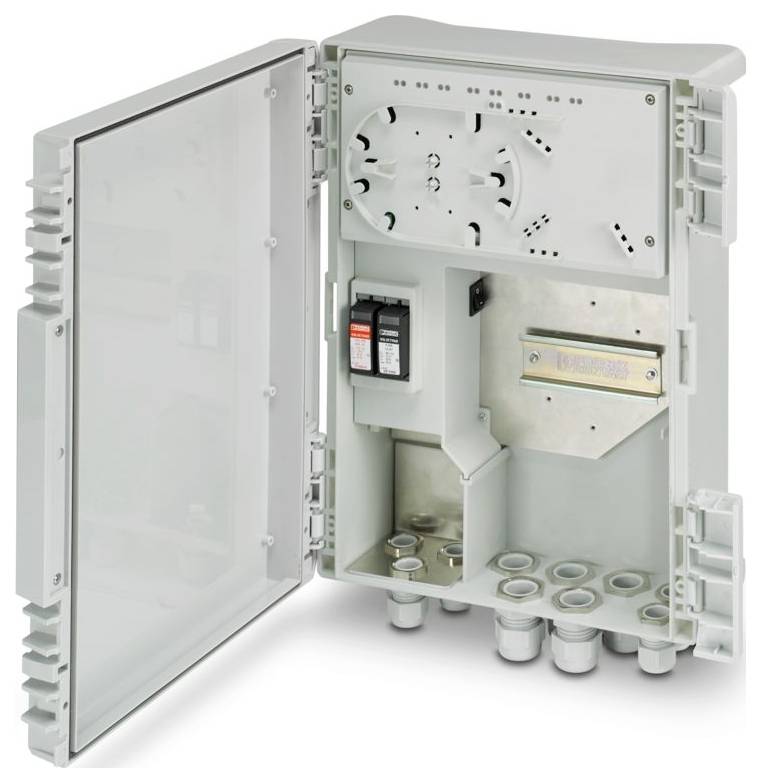

Smart Ethernet box for connecting PoE terminals, four PoE ports, two uplink ports (SFP slots), managed switch, surge protection and splice cartridge integrated, supply voltage 100 ... 240 V AC, wall or mast mounting
