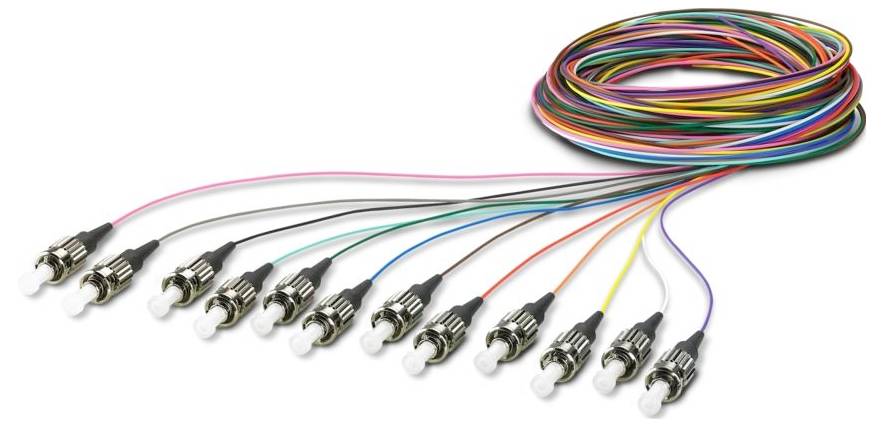

Phoenix Contact 1208117 Fibreglass FO Cable 2.50 m Multimode OM1
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- ST/UPC plug to Open cable ends
- -Cable
Technical specifications
- Design: Free cable end
- Number of poles: 12
- TYPE B-FOC (ST)
- Width: 9.5 mm
- Height: 9.5 mm
- Colour: Silver/glossy
- Flammability class according to UL 94: V0
- Mechanical Data: Mechanical Data
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -20 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Length: 2500 mm
- Transmission speed 1 GBit/s
- Ambient temperature (mounting): 0 °C ... 50 °C
- Outer sheath, material: LSZH
- Cable length 2.50 m
- Transmission medium: Multimode fiber optic
- Number of slots: 12
- Conductor type: Optical wire
- Non-flammable: Yes
- Oil resistance: No.
- Mating cycles: 500
- Track 1: Track 1
- Track 2: Track 2
- Halogen-free: Yes
- Data transfer rate up to 1 GBit/s.
- Conductor type 900 µm
- Cable outlet: Straight
- Minimum bend radius 30 mm
- Colour of housing: Silver colored
- Single conductor, material: LSZH
- Cable design: Semi-loose compact wires (STB)
- Attenuation ≤ 0.3 dB
- Mechanical Characteristics: Mechanical Characteristics
- Diameter ferrule 2.50 mm
- Material ferrule: Zirconia-ceramic
- Individual wires, diameter 900 µm
- Tensile strength short/continuous: 10 N
- Whip length 2500 mm
- LWL-cable: Fibre-optic cable
- Number of fibers: 12
- G62.5/125 µm OM1 fiber
- Fibre type: Multimode
- Return flow resistance ≥ 35 dB
- Product type
FO Cable
- Connection type
Fibreglass
- No. of A connectors
1 x
- Type A
ST/UPC plug
- No. of B connections
0 x
- Type B
Open cable ends
Multimode OM1
- Halogen-free
Yes
- Cable length
2.50 m
- Content
1 pc(s)
- Connector version
straight
- Cable features
Flame-retardant
FO
- Cable use
FO
- Version
Cable
- LAN transfer rate
1000 MBit/s
- Shielded
No
- UKCA
yes
![Phoenix Contact 1087107 Fibreglass FO Cable 2 m [1x M17 socket - 1x ST] Multimode OM1](https://asset.conrad.com/media10/isa/160267/c1/-/en/003563170PI99/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![Phoenix Contact 1087108 Fibreglass FO Cable 1 m [1x M17 socket - 1x ST] Multimode OM1](https://asset.conrad.com/media10/isa/160267/c1/-/en/003563224PI99/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![Phoenix Contact 1087110 Fibreglass FO Cable 2 m [1x M17 socket - 1x LC duplex] Multimode OM1](https://asset.conrad.com/media10/isa/160267/c1/-/en/003563232PI99/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![Phoenix Contact 1087113 Fibreglass FO Cable 0.6 m [1x M17 socket - 1x LC duplex] Multimode OM1](https://asset.conrad.com/media10/isa/160267/c1/-/en/003563252PI99/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![Phoenix Contact 1087115 Fibreglass FO Cable 1 m [1x M17 socket - 1x LC duplex] Multimode OM1](https://asset.conrad.com/media10/isa/160267/c1/-/en/003563277PI99/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![Phoenix Contact 1087118 Fibreglass FO Cable 0.6 m [1x M17 socket - 1x LC duplex] Multimode OM1](https://asset.conrad.com/media10/isa/160267/c1/-/en/003563268PI99/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![Phoenix Contact 1126996 Fibreglass FO Cable 0.6 m [1x M17 socket - 1x ST] Multimode OM1](https://asset.conrad.com/media10/isa/160267/c1/-/en/003564645PI99/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
Documents & Downloads
Datasheet
Datasheet 3566309 Phoenix Contact 1208117 Fibreglass FO Cable 2.50 m Multimode OM1
User & Safety Instructions
User & Safety Instructions 3566309 Phoenix Contact 1208117 Fibreglass FO Cable 2.50 m Multimode OM1
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
