Name: Phoenix Contact 1416318 Network cable PUR halogenfrei 4 x 2 x 0.14 mm² Water blue 1 pc(s)
Brand: Phoenix Contact
SKU: 2209222

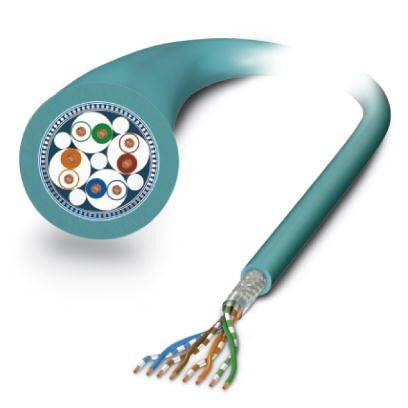

Pictured is a cut Ethernet cable with exposed coloured wires, representing different wire pairs.

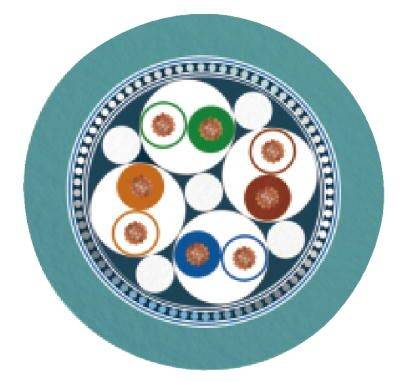

An abstract, circular design featuring various overlapping circles in shades of blue, white, and orange on a turquoise background.

1/2

Image similar

Product type

Network cable

No. of leads

8 x

Cross section (each core)

0.14 mm²

Cable features

Flame-retardant

Cable type

PUR halogenfrei

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Wire colors: White/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Outer sheath, material: PURE
Number of pins: 8
Cable length: 100 m
Wire diameter incl. insulation: 1 mm
Total stranding: 4 pairs and 5 fillers to the soul
Wall thickness outer sheath: 0.85 mm
Material conductor: Bare copper wire
Line capacity: Approx. 50 nF/km (at 1 kHz)
Signal delay 5.3 ns/m

Product type: Network cable

Cable type: PUR halogenfrei

No. of leads: 8 x

Cross section (each core): 0.14 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 4 x 2 x 0.14 mm²

Cable features: Flame-retardant

Outside Ø: 6.9 mm

Factory colour: Water blue

Content: 1 pc(s)

Nominal voltage (details): <100 V

Test voltage: 700 V

AWG max.: 26

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 8

Sold per metre: Yes

Halogen-free: Yes

Shielded: Yes

Manufacturer part #: 1416318

Insulation material: PP

Insulation: PP

Core layout: 19x 0.1 mm

Min. temperature range (flexible installation): -20 °C

Max. temperature range (flexible installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +80 °C

Type: VS-OE-OE-94C-100,0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2209222 Phoenix Contact 1416318 Network cable PUR halogenfrei 4 x 2 x 0.14 mm² Water blue 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2209222 Phoenix Contact 1416318 Network cable PUR halogenfrei 4 x 2 x 0.14 mm² Water blue 1 pc(s)

Description

Network cable, Ethernet CAT5 (1 GBit/s), 8-pin, PUR halogen-free, water-blue RAL 5021, shielded, free cable end, on free cable end, cable length: 100 m, for drag chains
