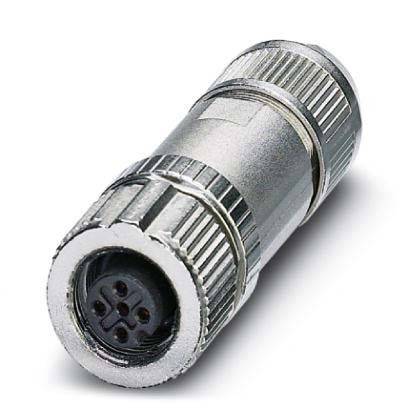

Image similar
Phoenix Contact 1424672 Sensor/actuator data cable M12 Socket, straight No. of pins (RJ): 5 1 pc(s)
Product type
Sensor/actuator data cable
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
M12 socket, straight
Connection side B
Customisable
EAN:
Part number:
Item no:
Number
Total (€ 30.99 / piece)
€ 30.99
incl. VAT
14-day return policy included
Technical specifications
- Type
SACC-M12FS-5PL SH DN
- Product type
Sensor/actuator data cable
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
M12 socket, straight
- Connection side B
Customisable
- No. of pins
5
- Nominal voltage
48 V AC
60 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.50 mm²
- Connection
Push-in connector
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- max. cross section
0.75 mm²
- Min. cross section
0.14 mm²
IP67
- Features
Shielded
- Max. temperature
85 °C
- Manufacturer part #
1424672
- Content
1 pc(s)
- Cable Ø (max.)
8 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 8 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1707309 Phoenix Contact 1424672 Sensor/actuator data cable M12 Socket, straight No. of pins (RJ): 5 1 pc(s)
Description
Bus system plug connector, socket, straight, 5-pin, M12 shielded, A-coded, spring-cage connection, metal knurled knob, cable diameter up to 8 mm
This text is machine translated.
This text is machine translated.
