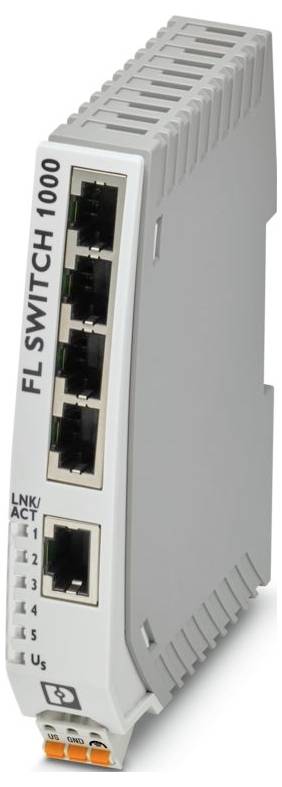

Image similar
Phoenix Contact 1544302 FL SWITCH 1005N-28PK Industrial Ethernet switch 10 / 100 MBit/s
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product Family: Unmanaged Switch 1000
- RJ45 connection type
- Width 22.5 mm
- Height: 117 mm
- Depth: 84 mm
- Material housing: Polycarbonate fiber-reinforced
- Ambient conditions: Environmental conditions
- IP30 protection
- Ambient temperature (operation): -10 °C ... 60 °C
- Standards/regulations: EN 61000-6-4:2007 + A1:2011
- Vibration (operation): According to IEC 60068-2-6: 5g, 150 Hz
- Transmission speed 10/100 MBit/s
- Number of interfaces: 5
- Transfer length 100 m (per segment)
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Interference radiation: Interference radiation
- IEC 61000-6-2:2005
- Transfer Physics: Ethernet in RJ45-Twisted-Pair
- Supply: Supply
- Free of substances interfering with paint wetting: According to VW specification
- Note on connection type: Auto negotiation and auto crossing
- Number of channels: 5 (RJ45 ports)
- Transfer medium: Copper
- Usage restriction: Use restriction
- EMC note: EMC: Class A product, see manufacturer's declaration in the download area
- Switch functions: Switch functions
- MAC address table 2k
- Ethernet (RJ45): Ethernet (RJ45)
- Signal LEDs: Data reception, link status
- Connection supply: Via COMBICON, max. Conductor cross-section 2.5 mm²
- Product type
Industrial Ethernet switch
- Transfer rate
10 / 100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
5
- 10/100 Mbps ports
5 x
- Auto-uplink at each port
Yes
- Width
22.5 mm
- Height
117 mm
- Depth
84 mm
- Type
FL SWITCH 1005N-28PK
- Interfaces
RJ45
IP30
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3569637 Phoenix Contact 1544302 FL SWITCH 1005N-28PK Industrial Ethernet switch 10 / 100 MBit/s
User & Safety Instructions
User & Safety Instructions 3569637 Phoenix Contact 1544302 FL SWITCH 1005N-28PK Industrial Ethernet switch 10 / 100 MBit/s
Description
Packet with 28 narrow Ethernet switches, five RJ45 ports with 10/100 MBit/s at all ports, automatic detection of the data transmission speed, Auto crossing function and QoS
