Name: Phoenix Contact 2702328 1808110 Network switch 7 ports 10 / 100 MBit/s
Brand: Phoenix Contact
SKU: 2209828

A grey industrial network switch with eight Ethernet ports, mounted on a DIN rail. Suitable for industrial applications.

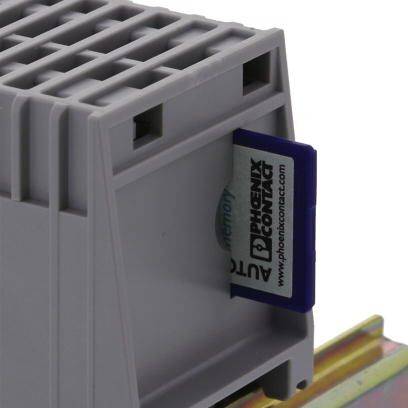

A grey technical device with a blue plug, labelled 'Phoenix Contact', mounted on a coloured rail.

1/2

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Mounting type: Mounting rail
Wire stripping length: 9 mm
Transmission physics: Copper
Type AX: Book design
Conductor cross-section rigid: 0.25 mm² - 1.5 mm²
Conductor cross-section flexible: 0.25 mm² - 1.5 mm²
Wire cross-section AWG: 24 - 16
Signal LEDs: Data reception, link status
Connection type: Push-in spring connection
Wavelength 1300 nm
Material casing: Fiber-reinforced polycarbonate

Product type: Network switch

LAN transfer rate: 10 MBit/s
100 MBit/s

Transfer rate: 10 / 100 MBit/s

Working principle: Managed switch

Ethernet ports: 7

10/100 Mbps ports: 7 x

Port type: Ethernet 10/100 MBit/s RJ45 screened

MAC addresses: 8000

Weight: 240 g

Width: 45 mm

Height: 130 mm

Depth: 115 mm

Type: 1808110

Interfaces: RJ45

: IP20

Operating voltage: 24 V DC

Current consumption: 144 mA

Max. ambient temperature: +70 °C

Min. ambient temperature: -40 °C

Port: 7 ports

Operating voltage: 24 V DC

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

10/100 Mbps ports

Ethernet ports

LAN transfer rate

Transfer rate

Working principle

Phoenix Contact 2702328 1808110 Network switch 7 ports 10 / 100 MBit/s

Item no:2209828

Unavailable

Conrad Electronic

This article

7 x

10 MBit/s

10 / 100 MBit/s

Managed switch

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1006191 953021 Network switch 14 ports 10 / 100 / 1000 MBit/s

Item no:2208906

Unavailable

Conrad Electronic

10 MBit/s

10 / 100 / 1000 MBit/s

Managed switch

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1044029 953022 Network switch 16 ports 10 / 100 MBit/s

Item no:2209019

Unavailable

Conrad Electronic

16 x

10 MBit/s

10 / 100 MBit/s

Managed switch

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2702329 FL SWITCH 2207-FX SM Network switch 7 ports 10 / 100 MBit/s

Item no:2209829

Unavailable

Conrad Electronic

7 x

10 MBit/s

10 / 100 MBit/s

Managed switch

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2702332 FL SWITCH 2206-2FX ST Network switch 6 ports 10 / 100 MBit/s

Item no:2209830

Unavailable

Conrad Electronic

6 x

10 MBit/s

10 / 100 MBit/s

Managed switch

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2702333 FL SWITCH 2206-2FX SM ST Network switch 6 ports 10 / 100 MBit/s

Item no:2209831

Unavailable

Conrad Electronic

6 x

10 MBit/s

10 / 100 MBit/s

Managed switch

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2702653 FL SWITCH 2304-2GC-2SFP Network switch 4 ports 10 / 100 / 1000 MBit/s

Item no:2209862

Unavailable

Conrad Electronic

10 MBit/s

10 / 100 / 1000 MBit/s

Managed switch

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2702881 FL NAT 2008 Network switch 8 ports 10 / 100 MBit/s

Item no:2209888

Unavailable

Conrad Electronic

8 x

10 MBit/s

10 / 100 MBit/s

Managed switch

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2702882 FL NAT 2208 Network switch 8 ports 10 / 100 MBit/s

Item no:2209889

Unavailable

Conrad Electronic

8 x

10 MBit/s

10 / 100 MBit/s

Managed switch

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2702969 FL SWITCH 2206-2SFX Network switch 6 ports 10 / 100 MBit/s

Item no:2209894

Unavailable

Conrad Electronic

6 x

10 MBit/s

10 / 100 MBit/s

Managed switch

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2209828 Phoenix Contact 2702328 1808110 Network switch 7 ports 10 / 100 MBit/s

User & Safety Instructions

User & Safety Instructions 2209828 Phoenix Contact 2702328 1808110 Network switch 7 ports 10 / 100 MBit/s

Description

The hub makes possible a fast and economical extension of Ethernet Network It has eight or sixteen Twisted Pair ports, which can be used for the connection of further main segments or terminals. Particularly suitable for special automatic protocols like e.g. the FL Net. The FL HUB 8/16 TX-ZF supports both Ethernet with 10 MBit/s and also with 100 MBit/s. The hub regenerates the received data telegrams and sends it to remaining ports A port allocation switch is found for the port 5 on the hub The transmission and reception lines are exchanged by switching the switch while maintaining the polarity at port 5 Thus can be passed without Crossover cables for the connection of main accounts
