Phoenix Contact 3002774 Brown 20 pc(s)

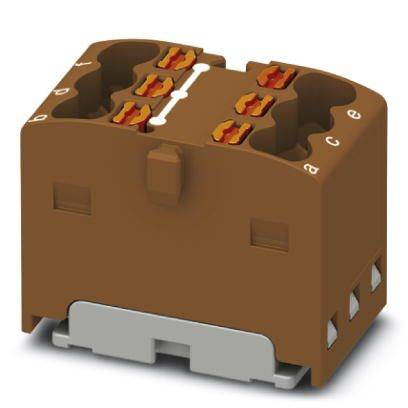

Brown plug-in terminal block for electrical wiring with multiple connection points and terminals, suitable for DIN rails.

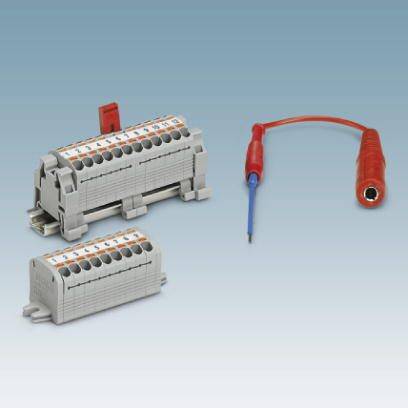

Cable connection parts and a test tool on a blue surface.

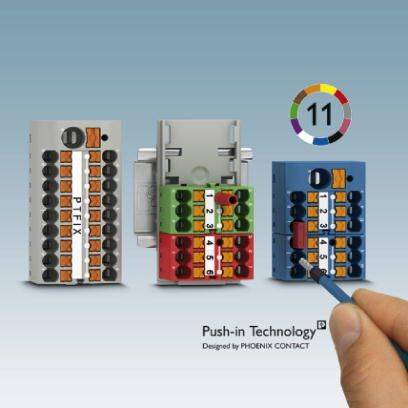

Three terminal blocks with 'Push-in Technology', numbered from 1 to 11, are set using a blue pen. Designed by Phoenix Contact.

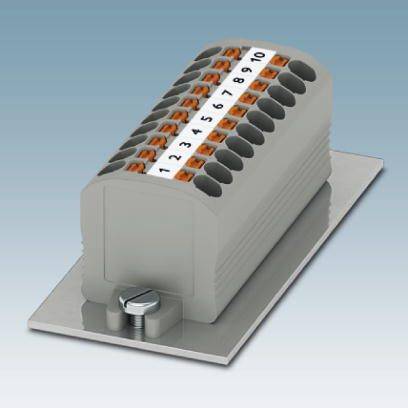

Electrical terminal strip with ten marked connection points, numbered from 1 to 10, mounted on a metal base.

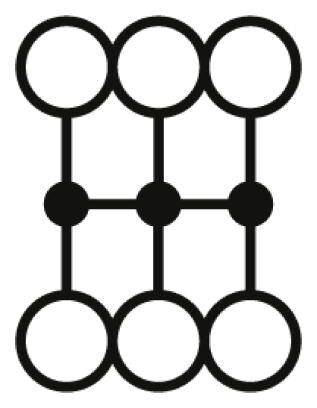

Diagram with 9 circles, 3 of which are filled in the centre, connected by lines. Shows a grid structure with two levels of empty circles above and below.
1/5
Image similar
Factory colour
Brown
AWG max.
14
Stripping length
8 mm
Stripping length (max.)
10 mm
Dim
(L x W x H) 21.6 x 12.5 x 30 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Flammability class according to UL 94: V0
  • Width 12.5 mm
  • Number of floors: 1
  • Number of ports: 6
  • Potential: 1
  • Insulating material: PA
  • Dimensioning surge voltage: 6 kV
  • Pollution level 3
  • Over voltage category III
  • Insulating material group: I
  • Maximum power loss at rated condition: 0.56 W.
  • Maximum load current 22 A.
  • Open side wall: No.
  • Total current max. 26 A.
Factory colour

Brown

AWG max.

14

Stripping length

8 mm

Stripping length (max.)

10 mm

Dim

(L x W x H) 21.6 x 12.5 x 30 mm

Connection

Push-in connector

Connector colour

Brown

Weight

0.0100 kg

Manufacturer part #

3002774

Content

20 pc(s)

Clamp width

12.5 mm

Material

PA

Nominal voltage

450 V

Nominal current

17.5 A

Nominal current - rounded value

17.5 A

Width

12.5 mm

Height

30 mm

Length

21.6 mm

Type

PTFIX 6X1,5 BN

Cross section (flexible) (max.)

1.5 mm²

Cross section (inflexible) (max.)

2.5 mm²

Cross section (flexible) (min.)

0.14 mm²

Cross section (inflexible) (min.)

0.14 mm²

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2225841 Phoenix Contact 3002774 Brown 20 pc(s)

Datasheet 2225841 Phoenix Contact 3002774 Brown 20 pc(s)

User & Safety Instructions

User & Safety Instructions 2225841 Phoenix Contact 3002774 Brown 20 pc(s)

Description

Space-saving thanks to compact design. Flexible use through direct mounting with flange covers made of accessories. Space-saving potential distribution through compact micro potential distributor. Ideal testing possibilities through test openings at each clamping point. Clear thanks to the labeling of all clamping points.

This text is machine translated.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
