Phoenix Contact 3044641 Disconnect terminal Screws Blue 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Disconnect terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Technical specifications
- Number of ports: 4
- Nominal cross-section 2.5 mm²
- Dimensioning surge voltage: 6 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current: 24 A (at 4 mm² conductor cross-section, the maximum load current must not be exceeded by the total current of all connected conductors.)
- Open side wall: Yes
- Screw thread: M3
- Tightening torque max. 0.6 Nm
- Packaging type
Piece
- Product type
Disconnect terminal
- Features
+ opener handle
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- No. of rows
2
- Number of pins
4
- Factory colour
Blue
- Nominal current
22 A
- Nominal current - rounded value
22 A
- Nominal voltage
400 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3044641
- Content
50 pc(s)
- Type
UTTB 2,5-MT-P/P BU
- Dim
(L x W) 69.9 mm x 5.2 mm
- Width
5.2 mm
- Length
69.9 mm
- Rated surge voltage
6 kV
- Contamination level
3
- Flammability rating
V0
- Connector colour
Blue
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225860 Phoenix Contact 3044641 Disconnect terminal Screws Blue 50 pc(s) Piece
Datasheet 2225860 Phoenix Contact 3044641 Disconnect terminal Screws Blue 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2225860 Phoenix Contact 3044641 Disconnect terminal Screws Blue 50 pc(s) Piece
Description

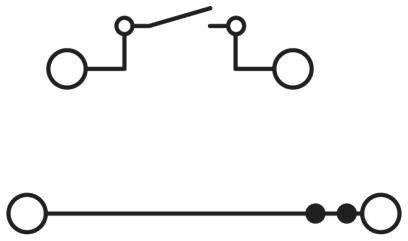

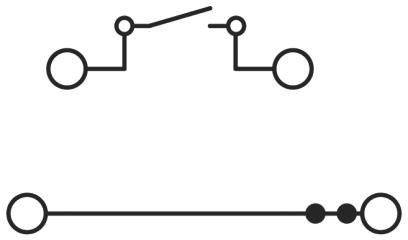

Convenient separation of circuits by lever separator knife. For example, two separate potentials can be passed by each other with the help of the bridging.
This text is machine translated.
This text is machine translated.
