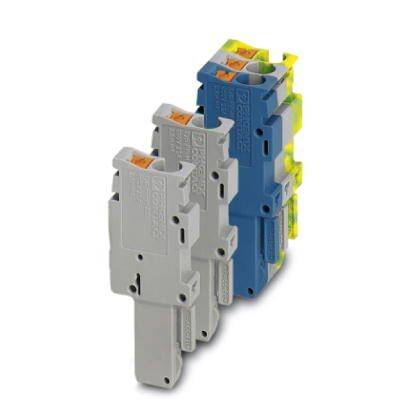

Image similar
Phoenix Contact 3209896 Grey 50 pc(s)
Packaging type
Piece
Factory colour
Grey
AWG max.
12
Stripping length
10 mm
Stripping length (max.)
10 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Flammability class according to UL 94: V0
- Width 20.8 mm
- Number of floors: 1
- Number of ports: 4
- Potential: 4
- Insulating material: PA
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Over voltage category III
- Insulating material group: I
- Maximum power loss at rated condition: 0.77 W.
- Maximum load current 24 A (at 2.5 mm² cross section)
- Open side wall: No.
- Building height 24 mm
- Pitch: 5.2 mm
- Connection: 1. Floor
- Packaging type
Piece
- Factory colour
Grey
- AWG max.
12
- Stripping length
10 mm
- Stripping length (max.)
10 mm
- Dim
(L x W x H) 15.8 x 20.8 x 24 mm
- Connection
Push-in connector
- Connector colour
Grey
- Manufacturer part #
3209896
- Content
50 pc(s)
- Material
PA
- Nominal voltage
500 V
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Number of pins
4
- Width
20.8 mm
- Height
24 mm
- Length
15.8 mm
- Type
PP-H 2,5/ 4 (1GNYE/3GY)
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225898 Phoenix Contact 3209896 Grey 50 pc(s)
Datasheet 2225898 Phoenix Contact 3209896 Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2225898 Phoenix Contact 3209896 Grey 50 pc(s)
Description
With the push-in technology COMBI connectors that can be customized, there is a solution for every task that can be implemented by the user himself.
