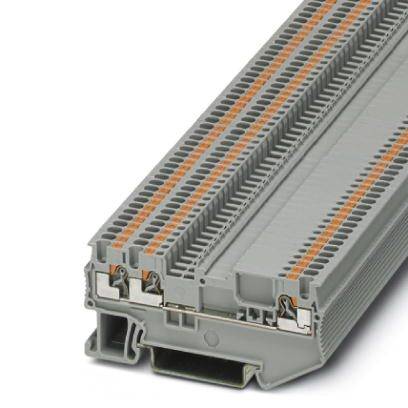

Image similar
Phoenix Contact 3210317 Continuity Push-in connector Grey 50 pc(s) Piece
Packaging type
Piece
Product type
Continuity
Connection
Push-in connector
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of ports: 3
- Potential: 1
- Nominal cross-section 1.5 mm²
- Dimensioning surge voltage: 6 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current 17.5 A.
- Open side wall: Yes
- Test specification touch protection: DIN EN 50274 (VDE 0660-514):2002-11
- Hand back safety: Guaranteed
- Finger safety: Guaranteed
- Setpoint: 1 N.
- Short time current: 0.18 kA
- Lid width 0.8 mm
- Packaging type
Piece
- Product type
Continuity
- Features
+ push-in spring bracket
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
26
- AWG max.
14
- No. of rows
1
- Factory colour
Grey
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
400 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3210317
- Content
50 pc(s)
- Type
PT 1,5/S-TWIN-MTD
- Dim
(L x W x H) 67.8 x 3.5 x 30.5 mm
- Width
3.5 mm
- Height
30.5 mm
- Length
67.8 mm
- Rated surge voltage
6 kV
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225901 Phoenix Contact 3210317 Continuity Push-in connector Grey 50 pc(s) Piece
Datasheet 2225901 Phoenix Contact 3210317 Continuity Push-in connector Grey 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2225901 Phoenix Contact 3210317 Continuity Push-in connector Grey 50 pc(s) Piece
Description
In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
This text is machine translated.
This text is machine translated.
