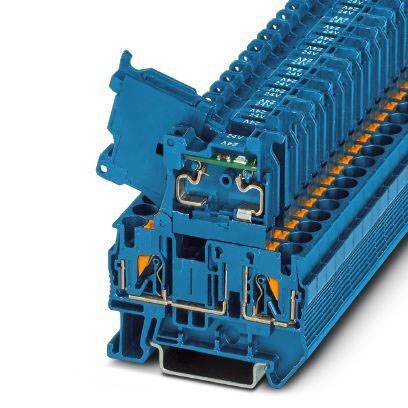

Phoenix Contact 3211905 Fuse serial terminal Push-in connector Blue 50 pc(s) Piece
Packaging type
Piece
Product type
Fuse serial terminal
Connection
Push-in connector
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Fuse serial terminal
- PT 4-HESILED 24 (5X20) BU/BU
Technical specifications
- Number of ports: 2
- Nominal cross-section: 4 mm²
- Dimensioning surge voltage: 4 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current: 6.3 A (at 6 mm² conductor cross-section rigid)
- Open side wall: Yes
- Packaging type
Piece
- Product type
Fuse serial terminal
- Features
+ push-in spring bracket
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
6.3 A
- Nominal current - rounded value
6.3 A
- Nominal voltage
24 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
3211905
- Content
50 pc(s)
- Type
PT 4-HESILED 24 (5X20) BU/BU
- Dim
(L x W) 56 mm x 6.2 mm
- Width
6.2 mm
- Length
56 mm
- Rated surge voltage
4 kV
- Contamination level
3
- Flammability rating
V0
- Connector colour
Blue
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225914 Phoenix Contact 3211905 Fuse serial terminal Push-in connector Blue 50 pc(s) Piece
Datasheet 2225914 Phoenix Contact 3211905 Fuse serial terminal Push-in connector Blue 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2225914 Phoenix Contact 3211905 Fuse serial terminal Push-in connector Blue 50 pc(s) Piece
Description
In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
